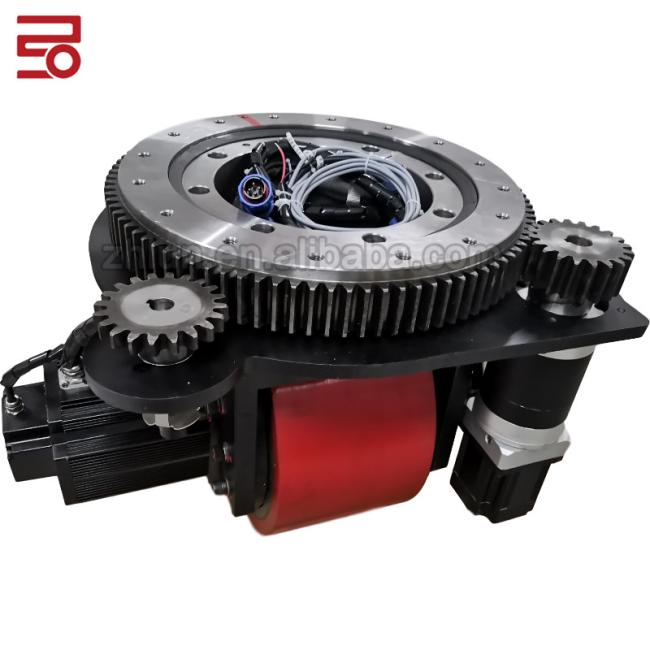

4000KG Agv Heavy Duty Electric Wheel Drive Motor For Platform Truck

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 25 days

Brand: ZHLUN

Product Description

Motor Drive Heavy Duty Robot Wheels Driving Wheel Electric Platform Truck

Spcification

ZL-400 Drive Wheel Parameter Table
Item	Name	Unit	Value
1	Installation height	mm	400
2	Wheel diameter	mm	300
3	Speed	m/min	100
4	Speed ratio	/	1:28/1:30/1:42/1:75/1:90
5	Maximum load	KG	4000
6	Traction motor	W	2000-8000
7	Steering motor	W	1000-2000
8	Output torque	N.m	60
9	Brake	V	48/72
10	Weight	KG	90

Description

The product has the characteristics of reliable performance, convenient installation, and simple maintenance. It provides customers with reliable solutions in terms of high load, high torque, and high speed.

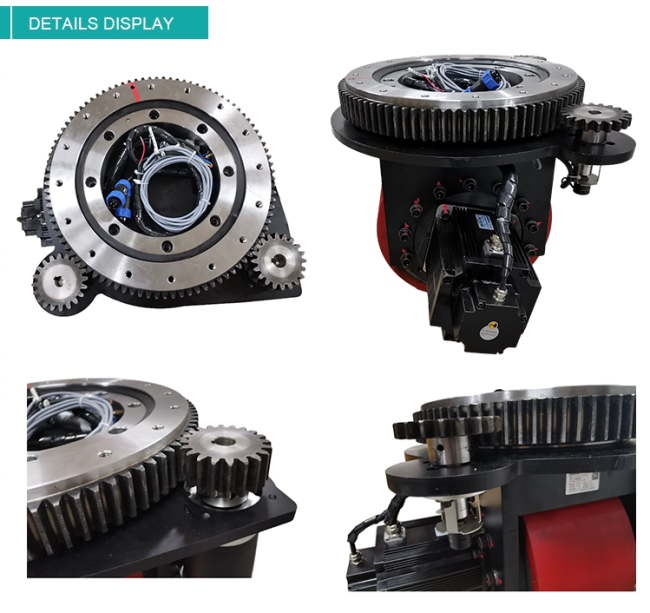

The planetary redution wheel adopts a planetary structure and integrated design, and the servo motor is designed inside the planetary wheel. It has the characteristics of compact structure, high transmission efficiency, light noise, and precise control.

Those products can be made by customized. The specification such as voltage, speed, torque, shaft can be customized by your needs. Please contact us for more details.

Advantage

1. Double support structure, running smoothly and uniform force.

2. Multi-stage planetary reducer, high transmission efficiency and quieter.

3. Compact structure and high integration, make the control more convenient.

4. Large buffer stroke and strong obstacle-crossing ability, adapt to complex conditions on the ground.
