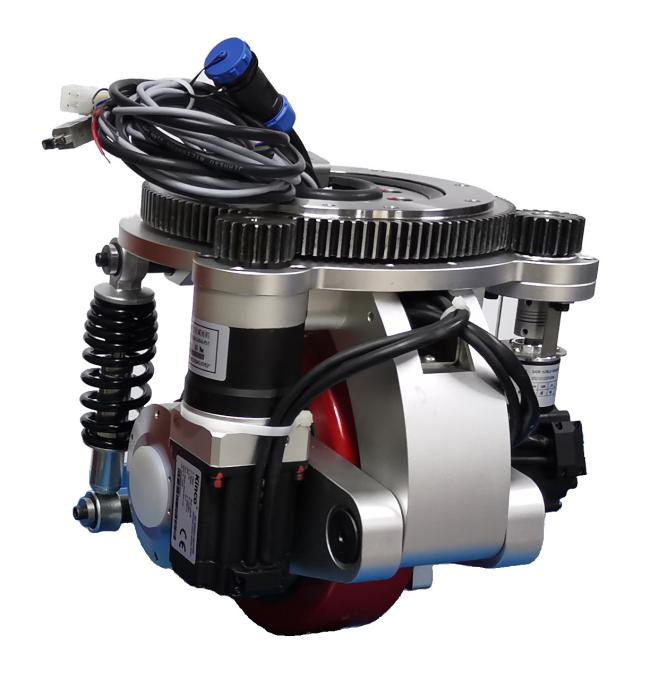

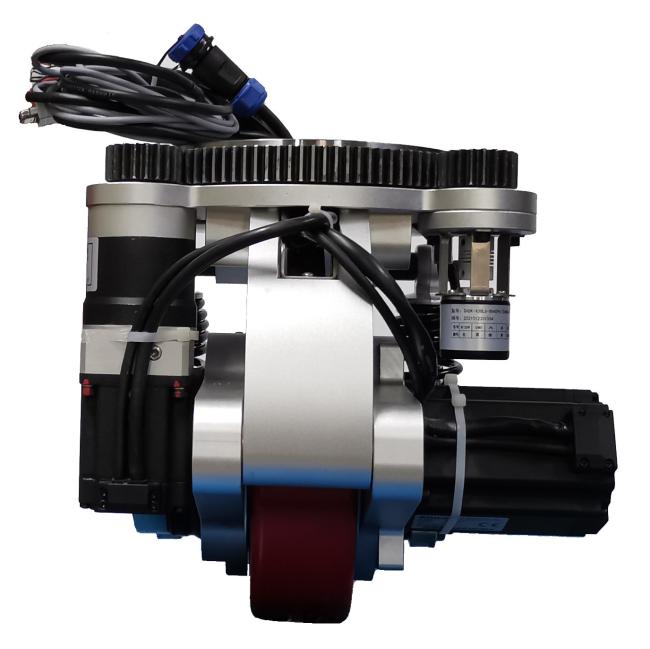

Robot Damping Drive AGV Drive Wheel Forklift Servo bLDC motor wheel
Damping Drive Wheel AGV Wheels For Servo Motor In Robot And Forklift
| Damping Steering Wheel B27 series parameter table | |||
| Item | Name | Unit | Value |
| 1 | Installation height | MM | 260/270 |
| 2 | Wheel diameter | MM | 180/200 |
| 3 | Buffer stroke | MM | ±30mm |
| 4 | Damping pressure | KG | 50-300 |
| 5 | Speed ratio | / |
1:17/1:28/1:30/ 1:42/1:75/1:90 |
| 6 | Speed | M/MIN | 20-100 |
| 7 | Maximum load | KG | 1000 |
| 8 | Traction motor | W | 100-2000 |
| 9 | Steering motor | W | 50-400 |
| 10 | Steering ratio | / |
1:20/1:24/1:28/1:30/ 1:35/1:40/1:50/1:100 |
| 11 | Motor Voltage | V | DC24/48,AC220 |
| 12 | Angle sensor | / | Optional |
| 13 | Walking encoder | / | Optional |
| 14 | Steering limit sensor | / | NPN/PNP |
| 15 | Brake | V | 24/48 |
| 16 | Weight | KG | 41.5 |
Description
High-performance integrated steering wheel system is the core component of AGV, electric forklift, heavy-duty mobile platform and other intelligent logistics equipment, which is used for steering and power drive of automatic mobile platform. The product has the characteristics of compact structure, excellent performance, high cost performance, safe and reliable, its control precision, overload capacity, efficiency and other technical indicators are in the leading level, can be applied to logistics storage, docking assembly, port transportation and many other fields. At present, it has established long-term cooperative relationship with many robot companies and logistics equipment enterprises.
Main Features
1. Dual wheels for heavy load capacity and protect floor
2. Excellent Durability and anti-noise
3. Suitable for small swivel radius in limited space
4. Unique Crankshaft style swivel mechanism, easy to swivel
5. Shorten AGV / LGVs' swivel radius
