1000mm Decorative Stainless Steel Sheet Aisi 304 316L 201 Mirror Double Colors Stamping Embossed

PVD Mirror Double Color Coating Stamped Finish Art Decorative Stainless Steel Sheet

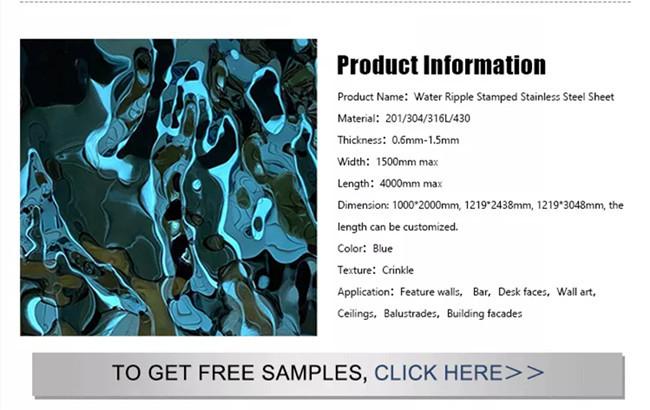

01What is stainless steel water ripple
Stainless steel water ripple, also known as water wave stainless steel, water pattern stainless steel, water wave stainless steel, is based on the reflective properties of 8K mirror stainless steel, and the smooth concave and convex on the surface of the stainless steel plate is realized by stamping, and the final achievement is similar to the water ripple effect.

02. Material properties
1. Safety, environmental protection, fire prevention
Commercial spaces have high requirements for fire protection. Many sales centers, department stores, and hotels will use large areas of stainless steel water corrugated boards for decoration.

2. Durable, impact-resistant, corrosion-resistant and not fading
Corrosion and colorfast resistance make it suitable for use on exterior walls and wet areas.

3. The decorative effect is strong, and the mirror effect is very three-dimensional.
The mirrored stainless steel water corrugated board, applied to the top ceiling, will make the whole space transparent, and the depth changes under different light or lights, the sparkling visual effect greatly deepens the sense of spatial hierarchy, and the reflected image will Scattered into visuals similar to Impressionist paintings.

4, easy to clean, maintenance-free, no fingerprints
The stainless steel water corrugated board does not need too much maintenance, if there is any stain, just wipe it with a rag.

03.Material Specifications
Common stainless steel water corrugated plates are made of 304 steel, 304L steel
Some areas with special requirements will also use 316 steel with better corrosion resistance, with a thickness of 0.6mm-1.5mm (different factories produce slightly different specifications)
The general width is 0.5m, 0.8m, 1m, 1.22m, 1.5m, and the length can be customized
Color can also be customized, such as: natural color, bronze color, champagne color, blue, etc.
Stainless steel water corrugated board can be customized with various patterns
Common ones are: pearl rice, pearl board, refined corrugated board, diamond checkered pattern, antique checkered pattern, leather pattern, etc.
The market price of stainless steel corrugated sheet is roughly 200~400 yuan/㎡, and the price varies with thickness.

04. Construction technology
Production process
Common stainless steel surface treatment process
There are wire drawing, mirror surface, sandblasting, titanium plating, etching, anti-fingerprint, etc.
Stainless steel water corrugated board is stamped
The pattern is stamped on the stainless steel plate
Embossing is rolled with patterned work rolls
Its work rolls are usually processed with aggressive liquids
The depth of bumps on the board varies by pattern
About 20-30 microns
The color of stainless steel water corrugated board can also be customized
during production
Integrate the main body with the tinted layer
To maintain the basic structure and basic properties of the original stainless steel

Before installation, cut and fold according to the actual size of the site.
1. Inner wall
a. First use the base board to make a primer.
b. Glass glue or Jialong skeleton is used for the installation of the background wall.
c. The ceiling glass glue dragon skeleton + screws are installed and fixed.
d. If there are special shapes, it is necessary to use a welding machine for welding.
2. Exterior wall
Directly use the glass glue dragon skeleton + screws to install and fix.
