3.54 Inch 800x640 Resolution Highlight 1000nits Automotive Standard 3.54" Sector IPS LCD Display For E-Bike
3.54 Inch 800x640 Res. RGB 3.54" Sector IPS LCD Display with Automotive Standard For E-Bike
Product Description
Team Source Display 3.54 inch LCD display model TST035WVHS-110 is a transmissive color liquid crystal display with 800x640 resolution and RGB interface. This product consists of upper glass, lower glass, backlight and polarizer etc. After measurement, the size of this 3.54 inch LCD display active area is 90x72mm, and the outline size is 97.6x83.79x4.04mm. This fan-shaped 3.54 inch LCD display is usually used in E-Bike, two wheel car etc.
Product Paramenter
| Display Type | 3.54 Inch LCD Display |
| Model Number | TST035WVHS-110 |
| Resolution | 800xRGBx640 |
| Outline mm | 97.6x83.79x4.04mm |
| AA mm | 90x72mm |
| Interface | RGB |
| Luminance | 1000nits |
| Driver IC | FL5892C |
| Viewing Direction | All O'clock |
| TP/Lens | Support to customize |
| Backlight | 12 LEDs, 70mA |
| Operating Temperature | -30℃~+85℃ |
| Storage Temperature |
-40℃~+90℃ |
| Original Place | Dongguan, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
|
Supply Ability |
1500000 per month |
|
Customized |
FPC, CTP/RTP, logo, color , size etc |
|
Payment |
T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 3.54 inch |

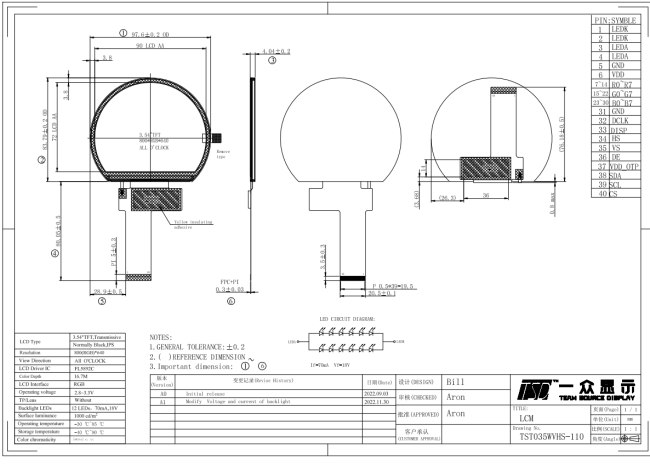

Product drawings
Company Profile
Team Source Display (brand: TSD) was established in 2004, specializing in the development, manufacture and sales of 0.96 inch-32 inch color TFT LCD displays, monochrome LCD display, capacitive touch screen and resistive touch screen. The factory is located in Dongguan, China, with a plant area of more than 12,000 square meters.
Pre-sales service
1.Our team design and make solutions based on different requirements from different customers.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Our Certificates
TSD factory have passed ISO9001, ISO14001, IATF16949 and ISO13485 certification etc., more certification please feel free to contact us.
Product Applications
Our TFT liquid crystal displays are mainly used in communication equipment, consumer electronics, industrial applications, office automation, smart applications, automobiles, IT products, medical applications and other fields. Wherever there is a demand for LCD, our products can be used.
FAQ
Q. TSD is a LCD display manufacturer or trader?
A: Team Source Display is a LCD display manufacturer in Shenzhen for more than 19 years.
Q: Is this 3.54 inch LCD display can meet automotive standard ?
A: Yes, this LCD display can meet automotive standard and it's operating tempreture is -30 to 80, and storage tempreture is -40 to +90.
Q: Does this 3.54 inch lcd display support customize service?
A: Yes, this lcd display support to customize CTP and RTP, cover glass etc.
Q: Dose this 3.54 inch LCD display support outdoor use?
A: Yes, this 3.54 inch LCD display is 1000nits luminance and support to use in outdoor.
Q: What's the lead time for sample?
A: The lead time of sample is 3-7 days. The lead time for mass production is 2-3 months.
