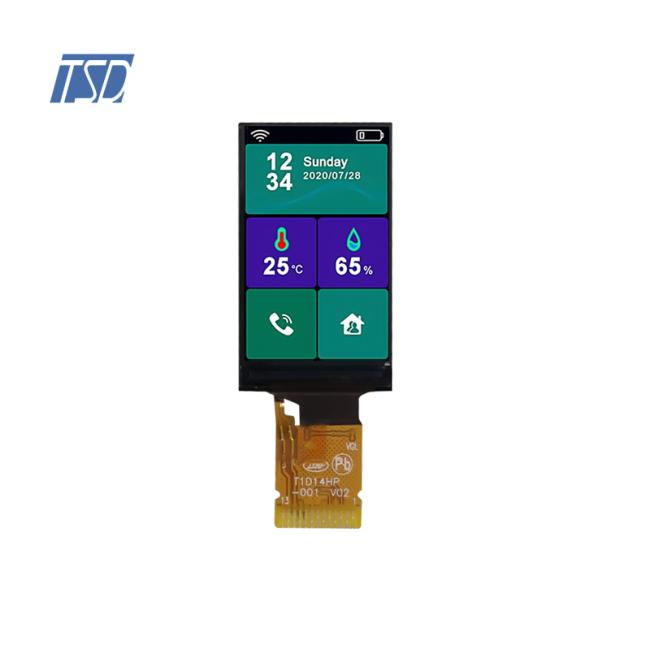

1.14 Inch 135x240 IPS TFT LCD Display 350 Nits Industrial Grade TST11401A
Description of TST11401A
TST11401A is 1.14 inch 135x240 resolution 4 wire SPI interface LCD display module in industrial grade, We also have consumer grade in the same size and resolution. It could be used for industrial control, smart home or consumer grade product. The brightness is 350 nits, White LEDs is 1 piece, backlight current is 20mA and backlight voltage is 3.0V, which could be customized. For this 1.14 inch TFT LCD module, driver IC is ST7789V3-G4-A, viewing direction is free, all o'clock, color depth is 262K, white backlight and transmissive mode.
Specification of Ips Lcd Display
| LCD type | IPS LCD display |
| Part No. | TST11401A |
| Resolution | 135x240 |
| Outline dimension | 17.6x31x1.56mm |
| Active Area | 14.86x24.91mm |
| Brightness | 350 cd/m2 |
| Interface | SPI |
| Viewing angle | All o'clock |
| Operating temperature | -20℃ to +70℃ |
| Storage temperature | -30℃ to +80℃ |
Feature of IPS LCD Display
Panel Size: 1.14 inch ips lcd panel
Resolution: 135x240
Interface Type: 13 pins SPI
Viewing Angle: Free
Pixel Arrangement: RGB-stripe
Surface Treatment: Anti-glare
Backlight type: 1 LEDs, 20mA, 3.0V
Color Depth: 262K
Smart home, industrial control, consumer electronic product etc
