Full Automatic Flap Barrier Turnstile Gate Access Control RFID Reader For Buildings

Flap Barrier RS 488-1 housing case is made of 2.0mm thinckness 304 or 316 stainless steel.Flap Barreiras RS 488-1 is consist of dc motor,wings,electric circuit,led lamp,buzzer,battery,sensors,mechanism and so on.Subway Gate RS 488-1 Also Called: Metro Turnstile,Flap Barrier,Flap Turnstile etc.Subway Gate RS 488-1 due to its aesthetic look, Flap Tourniquet is widely installed in high-end places. such as bank,park,brt station,Stadiums,office,Playgrounds,supermarket,metro stationFlap Turnstiles RS 488-1 with standard fire interface,wing open for evacuation even power is not cut off when fire alarm triggered.Flap Torniquetes RS 488-1 memory can be set,swipe cards several times for group pass,fast transit speed.Flap Barreras RS 488-1 has sufficient space, which can mount with any type of external device.( e.g.:reader,push button,counter,coin insert,barcode/QR reader,wheel,card collector,display).Flap Barrera RS 488-1 has standard relay signal, which can be integrated with any kind of third-party access control system: IC/ID Card Reader,Face Recognition,RFID,Biometeric Reader,Fingerprint Reader,Smart Card and so on.Flap Turnstiles RS 488-1 wing color,casing size and sensor numbers are customized.

1.Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.

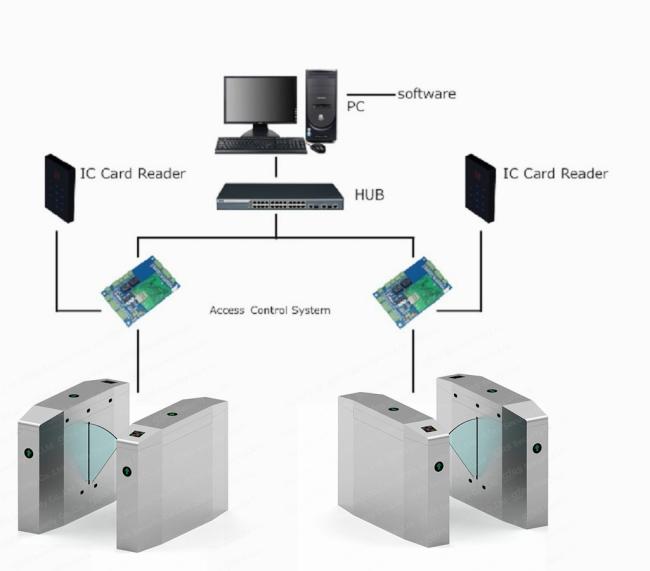

2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering
complete entrance control solutions.
3.Malfunction self-detection, which is easy for operation and maintenance.
4.Operational mode can be set up through the built-in menu on the control panel.
5.Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing,
the arms wing will stop its movement to prevent the user from being clamped.
6.Anti-collision function, the flaps will stay close if not receiving the open signal.
7.Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency.
It will open automatically in case of emergency.
8.Flaps reset to close position when power resume.
9.Flaps reset to lock position when access time expire.
10.Prevents Invalid/Tailgate/Wrong direction access.
11.LED Array indication for access granted/denied.
12.Compatible with diverse access control devices.
13.Pedestrian flow directions can be single or double directions.
14.RS485 socket is available to connect the computer.

1. Cabinet part:
1.1. Frame material: 304 #, thickness 1.2- 1.5 mm;
1.2. Multi-layer drawing on the surface of the frame;
1.3. The frame is welded by fixtures;
2. Drive Movement part:
2.1. Low noise;
2.2. Movement frame material 6061 profile aluminum;
2.3. The inner guide pulley adopts metal bearings;
3. Electric control accessories:
3.1.Switching power supply adpots brand power supply to make tis operating voltage more stable
3.2. The infrared sensor uses a domestic brand, and the internal parts are imported parts
