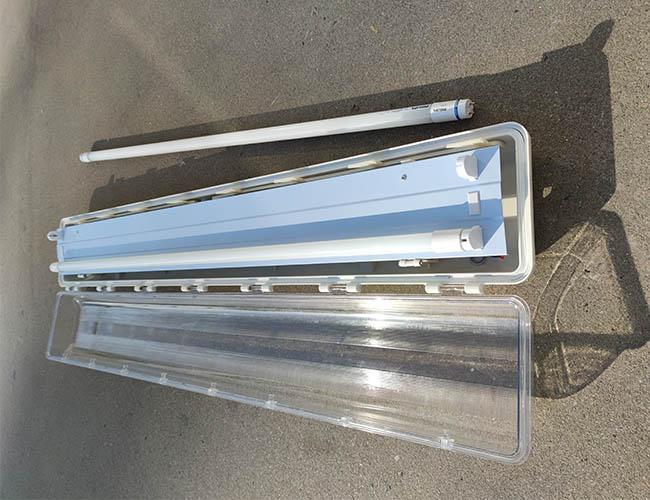

IP66 Stainless Steel LED Explosion Proof Fluorescent Light T5 T8 Tube Atex
Key Words: Explosion proof light, ATEX LED light, IP66 explosion proof fixture, stainless steel LED light, T5 T8 explosion proof fluorescent, waterproof LED tube light, hazardous area lighting.
Product Features:
-
ATEX Certified Explosion Proof Design
Certified for use in hazardous areas with explosive gases and dust, ensuring maximum safety in Zone 1 & Zone 2 environments. -
IP66 Waterproof & Dustproof Protection
High-grade IP66 rating provides excellent resistance against water jets, heavy rain, and dust ingress, ideal for harsh industrial conditions. -
High-Quality Stainless Steel Housing
Durable 304/316 stainless steel body offers outstanding corrosion resistance, extending service life in oil & gas, chemical, and offshore environments. -
Compatible with T5 & T8 LED Tubes
Flexible design supports both T5 and T8 LED fluorescent tubes, allowing for easy retrofit or customized lighting solutions. -
Energy-Efficient LED Technology
Delivers high lumen output with low power consumption, reducing energy costs while providing bright, reliable illumination. -
Long Lifespan & Low Maintenance
LED light source with extended operational life, minimizing downtime and maintenance expenses.
| Main technical parameters | |
| Rated power (W) | 1×8/2×8 1×16/2×16 |
| Rated voltage (V) | 110V-250V |
| Luminous flux (LM) | 880/1760 1760/3520 |
| Average service life of light source (h) | 80000 |
| Protection class | IP66 |
| Ex Mark | Ex edq II C T4 DIP A20 TA,T6 |
| Lead in cable | φ10mm-φ14mm |
| Introduction device | G3/4" |
| Net weight (kg) | Single tube 5.4kg, double tube 6.1kg |
| Parameters of T5 fluorescent lamp with emergency function are as follows: | |
| Emergency starting time (S) | 0.3 |
| Charging time (h) | 24 |
| Emergency lighting time (min) | 90 |
