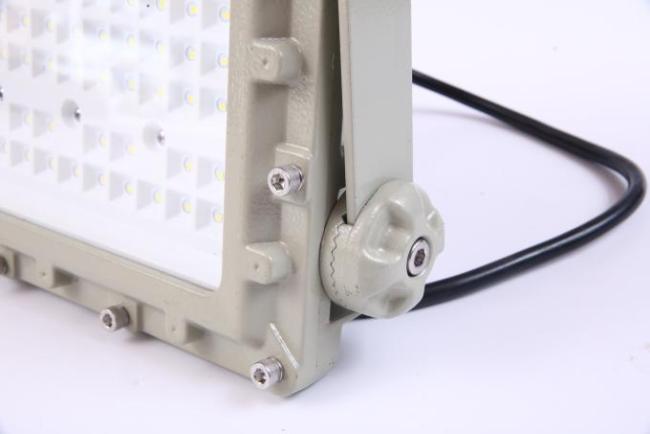

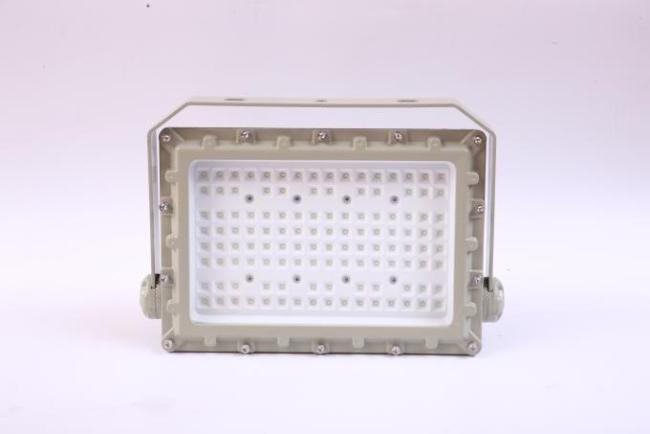

Atex Zone 1&2 Explosion Proof Flood Light Fixtures IP66 50w To 240w WF2
The top quality New style Factory making IP66 50w to 400w explosion proof flood light
Series:
Fashionable design, super slim model.
Good quality housing,good performance on heat dissipation and on strength
High lumen efficiency:130lm/w.
Features:
Zone 1&2, Zone 21&22
Instant on crisp white light output
High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
Isolated LED compartment reduces temperature within driver housing
Multi choice of beam angle for 60° 90° 120° LED lifetime:100000hrs
Applications:
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Specification:
| Explosion protection | ||||
| Ex Mark | II 2G Ex d e mb IIC T6 | |||
| II 2D Ex tD A21 T80℃ | ||||
| For use in | Zone 1, 2 & Zone 21, 22 | |||
| Electrical data | ||||
| Rated voltage | 100-240VAC, 50-60Hz | |||
| Power factor | ＞0.95 | |||
| THD | ＜20% | |||
| Luminous characteristics | ||||
| Power consumption [W] | 20~80 | 100~120 | 150~200 | 240~300 |
| Colour temperature [K] | 6000~6500 | |||
| Luminaire efficiency [Lm/W] | 120~130 | |||
| Beam angle | 120° (60°, 90° optical len is optional) | |||
| Mechanical data | ||||
| Degree of protection | IP66 | |||
| Cable entry | G 3/4” | |||
| Terminal | ≤2.5 mm² | |||
| Mounting Styles | Ceiling; Wall Bracket; Pendant | |||
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability, and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
