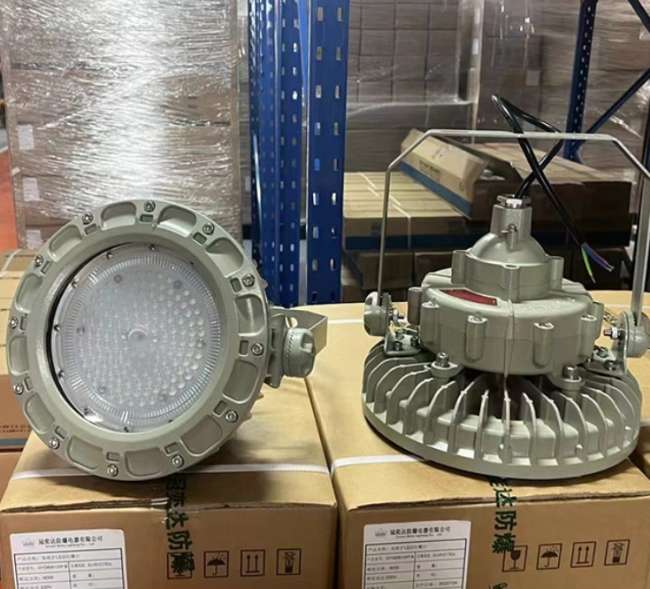

Triple Cavity Explosion Proof High Bay Light IP66 ATEX Approved
ATEX Approved Professional Explosion Proof High Bay Light IP66 Triple Cavity Light
Standard Materials:
1. Housing: Die-casting aluminum
2. Exterior: Stainless steel
3. Globe: Tempered glass
4. Gasket: Silicon rubber
Application:
1. Typical applications include
2. Oil and gas industrial
3. Chemical petrochemical
4. Pharmaceutical industries
5. Pulp and Paper
6. Waste and sewage treatment
7. Power Generation
Features:
1. Zone1,2, Zone 21,22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial applications
4. Isolated LED compartment reduces temperature within driver housing
5. Multi choice of beam angle for 60° 90° 120°
Specification:
| European (ATEX) Gas and Dust | Ex d IIC T6/T5 Gb,Ex tD A21 IP66 T80℃/T95℃ | ||||||
| For use in | Zone1, 2 & Zone 21, 22 | ||||||
| Electrical data | |||||||
| Rated voltage | 100-240VAC, 50-60Hz | ||||||
| Power factor | >0.95 | ||||||
| THD | <20% | ||||||
| Luminous characteristics | |||||||
| Power consumption [W] | 50 | 75 | 100 | 150 | |||
| Colour rendering [CRI] | 80 (±2) | ||||||
| Colour temperature [K] | 5700-6500 | ||||||
| Luminaire efficiency [Lm/W] | 1258-140 | ||||||
| Beam angle | 120° (60°, 90° is optional) | ||||||
| Mechanical data | |||||||
| Degree of protection | IP66 | ||||||
| Cable entry | G 3/4” | ||||||
| Weight [kg] | 7.7 | 9.95 | / | ||||
| Terminal | ≤2.5 mm² | ||||||
| Mounting Styles | Bracket mount, ceiling mount, 30° wall mount, 90° wall mount, flange mount | ||||||
