Metal Lamp Marine Aluminum Explosion Proof Led Light IP66 30-150W 100-240VAC
Metal Lamp Marine Aluminum 30-150W Explosion Proof Led Light IP66 100-240VAC
Features:
1. Instant on crisp white light output
2. High efficiency drivers and LEDs provide, low cost operation in harsh and heavy industrial
3. Isolated LED compartment reduces temperature within driver housing
4. Environmental-friendly and energy saving, simple shape, easy installation
5. Constant current output, stable performance
6. Low power consumption, high light efficiency, good color rendering property
7. Widely used in factories, warehouses, stadiums and other panoramic lighting
8. 5 year fixture warranty.
| Rated power | 20W,50W,75W,100,120W,150W |
| Lumen efficient |
130-140LM/W
|
| Beam angle |
120° (60° or 90° is optional)
|
| Protection degree | IP66 |
| Color temperature | 6000 |
|
Mounting Styles
|
Pendant; Ceiling; Wall Bracket; Stanchion
|
|
Rated voltage
|
100-240VAC, 50-60Hz
|
|
For use in
|
Zone 1, 2 & Zone 21, 22
|
|
Cable entry
|
G 3/4”
|

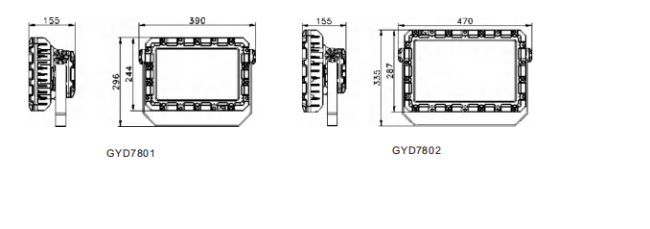

Dimension & Installation [mm]
Applications:
1. Explosive gas mixture hazardous locations: Zone 1 & Zone 2.
2. Explosive gas mixtures: IIA, IIB and IIC.
3. Flammable dust environment:21,22 area
4. Often be used in chemical plant,gas station,oil station,workshop,warehouse,pharmaceuticals,smelting, shipbuilding, military, textile and other flammable and explosive places
