Hot Rolled Wear Resistant Steel Sheet Plate NM400 AR500 High Hardness 400 500
Hot Rolled Wear Resistant Steel Sheet Plate NM400 AR500 High Hardness 400 500
Product Information
Wear-resistant steel plate is one of the most versatile wear plate in the world. Its combination of strength and hardness makes your products stand up in tough environments, absolutely. it gives 4 or 5 times strength and lifespan than ordinary steel plate.
NM400 series are developed for applications where high wear resistant performance is required, such as dumper, garbage vehicle, concrete mixer truck, industrial air fan, hopper, crusher, machinery for coal, grain, cement, grab bucket, etc
|
Commodity
|
Wear Resistant Steel Sheet |
|
Standard
|
ASTM,AISI,DIN,EN,BS,SUS, JIS
|
|
Material
|
NM400 NM450 AR500 AR400 and so on |
|
Thickness
|
2mm~100mm or as required
|
|
Width
|
1m,1.2m,1.22m,1.5m,1.8m,2m,2.2m or as customer required
|
|
Length
|
2m,2.44m,3m,5.8m,6m or as customers required
|
|
Packing
|
Standard export seaworthy package,suit for all kinds of transport,
or as required. |
|
Delivery Time
|
According to the quantity you ordered or Upon negotiation
|
|
Price Term
|
EX-Working,FOB, CIF ,CFR or others
|
|
Container Size |
Exteriornal size of the container
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
|
Application |
Steel plate are widely used in shipping building,engineer construction,mechanical manufacturing,the size of alloy steel sheet can be made,according to clients required.
|

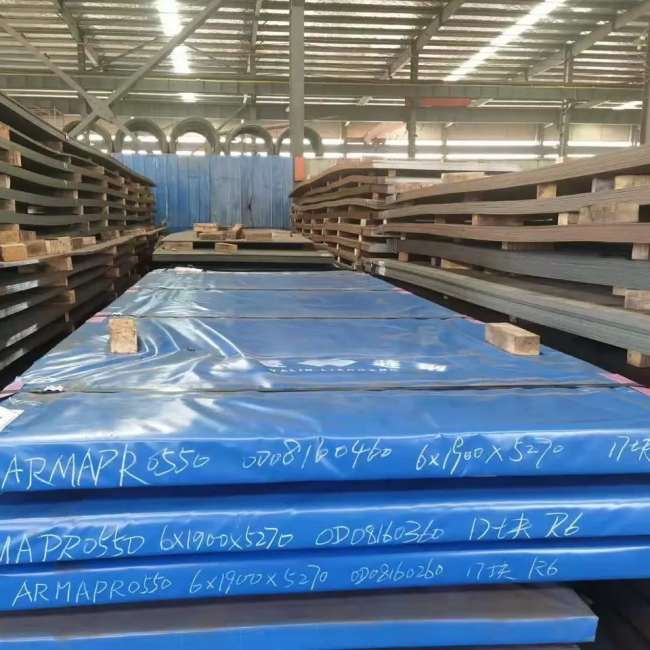

Product Image
|
Steel/Grade
|
C
|
Si
|
Mn
|
P
|
S
|
AL
|
Cr+Ni+Mo
|
Nb+V+Ti
|
|
NM360/AR360
|
0.10-0.30
|
0.20-0.40
|
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<0.6
|
Trace Amount
|
|
NM400/AR400
|
0.10-0.40
|
0.20-0.40
|
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<0.9
|
|
|
NM450/AR450
|
0.10-0.40
|
0.20-0.40
|
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<1.2
|
|
|
NM500/AR500
|
0.10-0.40
|
0.20-0.45 |
1.00-2.00
|
≤0.015
|
≤0.003
|
≥0.20
|
<1.5
|
|
|
NM550/AR550
|
0.10-0.50
|
0.20-0.45
|
1.00-1.50
|
≤0.015
|
≤0.003
|
≥0.20
|
<2.0
|
|
|
NM600/AR600
|
0.10-0.50
|
0.20-0.45
|
1.00-1.50
|
≤0.015
|
≤0.003
|
≥0.20
|
<2.5
|
Mechanical property
|
Grade
|
Tensile strength
|
Elongation
|
Hardness
|
-20℃ Impact energy
|
|
(Mpa)
|
(%)(min)
|
(HBW)
|
AKv/J (min)
|
|
|
NM360
|
≥1100
|
12
|
330-390
|
24
|
|
NM400
|
≥1200
|
10
|
370-430
|
24
|
|
NM450
|
≥1250
|
7
|
420-480
|
24
|
|
NM500
|
|
|
470(min)
|
|
|
NM550
|
|
|
530(min)
|
|
|
NM600
|
|
|
570(min)
|
|
Application
Package & Shipping
FAQ
Q1: Can you send samples?
A: Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2: What product information do I need to provide?
A: Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3: It's my first time to import steel products, can you help me with it?
A: Sure,we have agent to arrange the shipment, we will do it together with you.
Q4: What ports of shipment are there?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5: What about product prices information?
A: Prices various according to periodic price changes of raw materials.
Q6: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
