G350 Z180 Gi Steel Galvanized Steel Coil Full Hard 0.5mm For Roofing
Price:
Negotiable
MOQ:
2 Tons
Delivery Time:
7-10 days
Brand:
WISCO
Product Description
G350 Z180 Gi Steel Galvanized Steel Coil Full Hard 0.5mm For Roofing
Product Parameters
Galvanized coil is a thin steel sheet in which a thin steel sheet is immersed in a molten zinc bath so that a layer of zinc is adhered to the surface. It is mainly produced by continuous galvanizing process, that is, galvanized steel plate is made by continuously immersing the rolled steel plate in a plating tank with molten zinc. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.
|
Technical Standard
|
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
|
|
Steel Grade
|
DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type
|
Coil Sheet Plate Strip
|
|
Thickness
|
0.12-6.00mm or customer's requirement
|
|
Width
|
600mm-1500mm, according to customer's requirement
|
|
Type of Coating
|
Hot Dipped Galvanized Steel(HDGI)
|
|
Zinc Coating
|
30-275g/m2
|
|
Surface Treatment
|
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
|
|

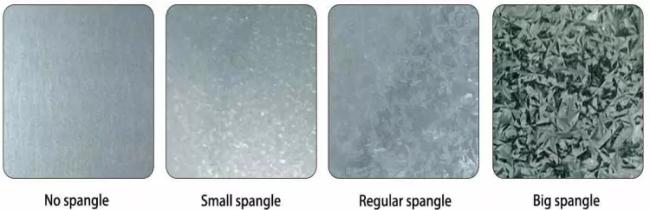

Surface Structure
|
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
|
|
Quality
|
Approved by SGS,ISO
|
|
ID
|
508mm/610mm
|
|
Coil Weight
|
3-20 metric ton per coil
|
|
Package
|
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by
seven steel belt.or according to customer's requirement |
Surface Treatment
| Surface Treatment Type | Code | Feature |
| Chromic acid treatment | C | Good corrosion resistance, suitable for bare state |
| Chromic acid treatment + oiling | S | Good corrosion resistance |
| Phosphoric acid treatment (including sealing treatment) | P | A certain degree of corrosion resistance, good paint performance |
| Phosphoric acid treatment (including sealing treatment) + oiling | Q | It has certain corrosion resistance, good paint performance, and prevents rust during transportation and storage |
| Phosphoric acid treatment (excluding sealing treatment) | T | A certain degree of corrosion resistance, good paint performance |
| Phosphoric acid treatment (excluding sealing treatment) + oiling | V | Have certain corrosion resistance, good paint performance, and prevent rust |
| Oiled | O | Prevent rust during transportation and storage |
| No treatment | M | Suitable for immediate painting |

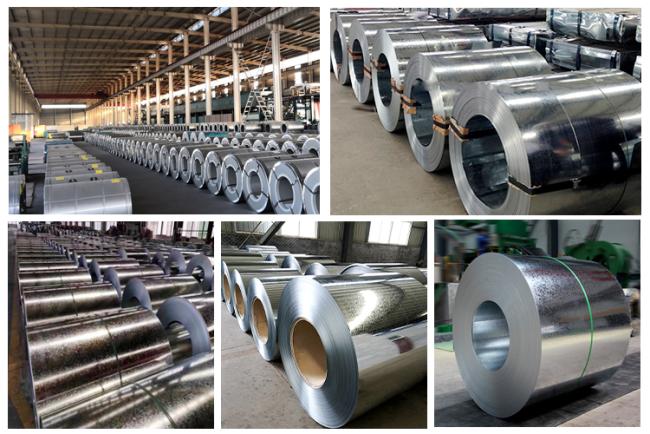

Product Detail
Surface

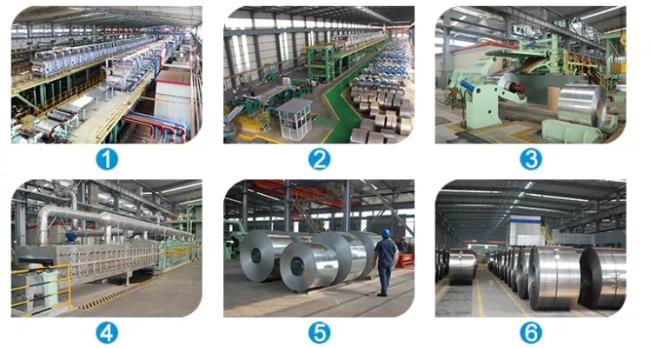

Production Process
Application

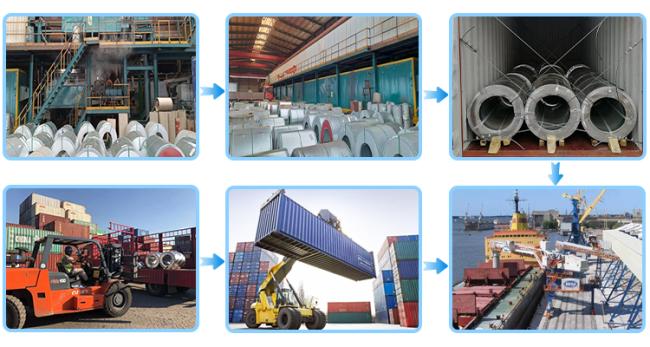

Packaging & Shipping
Certification
FAQ
Q: Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
