Product Introduction

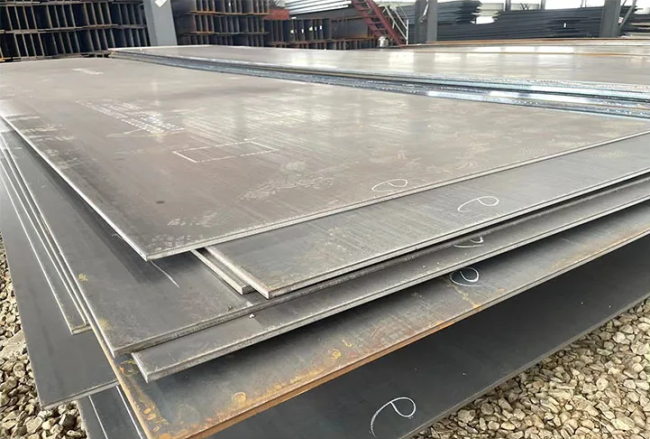

A283 carbon steel plate material confirms the specification present by ASTM A283/A283M standard. It offers low and medium tensile strength meant for general medium strength utilization. It is usually available in hot-rolled condition but can even be procured in normalized condition.
A283 grade C offer good weldability properties and are applicable for applications which need medium strength and good forming properties. It is primarily used for making buildings, bridges, and other related structures. This mixture of properties makes it appropriate for construction and manufacturing applications.
|
Product |
Carbon steel plates
|
|
Size Tolerance
|
±1%
|
|
Width
|
1000mm-2000mm or as customer's requirements
|
|
Thickness
|
Cold rolled:0.3~4.0mm or as required
|
|
Hot rolled:4mm~100mm or as required
|
|
|
Length
|
100mm to 12000mm or as customer's request
|
|
Technology
|
Hot roll, cold roll, cold drawn, ect.
|
|
Material
|
10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52
Grade A, Grade B, Grade C |
|
Standards
|
API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS
6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711 |
|
Certifications
|
MTC ISO9001
|
|
Packing
|
Industry standard packaging or according to client's requirement
|
|
Payment
|
T/T,L/C,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram
|
|
Delivery time
|
Usually 15 working days, your purchase volume determines our delivery time
|
Chemical Composition
| Grade A | Grade B | Grade C | |
| Carbon, max | 0.14 | 0.17 | 0.24 |
| Manganese, max | 0.90 | 0.90 | 0.90 |
| Phosphorus, max | 0.035 | 0.035 | 0.035 |
| Sulphur, max | 0.04 | 0.04 | 0.04 |
| Silicon
Plates 1 1/2 in and under, max Plates over 1 1/2 in |
0.40 0.15-0.40 | 0.40 0.15-0.40 | 0.40 0.15-0.40 |
| Copper min % when copper steel is specified | 0.20 | 0.20 | 0.20 |
Mechanical Properties
| Grade A | Grade B | Grade C | |
| Tensile Strength: | 45,000 -60,000 psi
[310 - 415 MPa] |
50,000 -65,000 psi
[345 - 450 MPa] |
55,000 75,000 psi
[380 - 515 MPa] |
| Min. Yield Point: | 24,000psi
[165 MPa] |
27,000psi
[185 MPa] |
30,000psi
[205 MPa] |
| Elongation in 8″: | 27% min | 25% min | 22% min |
| Elongation in 2″: | 38% min | 28% min | 25% min |
Test
We will control the quality from part of material steel plate, each plate produced will be have it is own identify label, quality will check the chemical component and physical property and then provide material test certificate. Size dimension will be checked and show pictures to customer to guarantee all goods will be meet requirement.
Cutting Service
Recommend Products
Application
Hot-rolled steel products are widely used in cold-rolled substrates, ships, cars, bridges, construction, machinery, oil pipelines, pressure vessels, etc. due to their excellent strength, good durability, easy processing and outstanding weldability.
