ZX200-3 ZX240-3 ZX250-3 Hydraulic Pump Oil Seal 4451039
4451039 excavator Hydraulic pump repair kit ZX200-3 ZX240-3 ZX250-3 main pump seal kit
Product Description
The installation quality of O-ring has an important impact on its sealing performance and service life. Leakage problems are often caused by poor installation. During installation, O-rings are not allowed to be scratched, installed incorrectly, or twisted. Before assembly, the sealing groove and sealing mating surface must be strictly cleaned; At the same time, apply grease to the surface to be passed during O-ring assembly. In order to prevent the O-ring from being cut or scratched by sharp edges such as sharp corners and threads during installation, a lead-in angle of 15O ~ 30o shall be reserved at the installed shaft end and hole end. When the O-ring needs to pass through the external thread, a special thin-wall metal guide sleeve shall be used to cover the external thread; If the O-ring needs to pass through the orifice, the orifice shall be inverted into the corresponding bevel shape to prevent the O-ring from being scratched. The bevel angle of the groove is generally a = 120o ~ 140o.
|
Part Number
|
4451039
|
|
Part name
|
Hydraulic pump repair kit , main pump seal kit
|
|
Brand
|
O-Ring
|
|
Machine Model
|
ZX200-3 ZX240-3 ZX250-3
|
|
MOQ
|
1SET
|
|
Delivery time
|
3-7 Days
|
|
Size
|
20X15X10
|
|
Weight
|
0.5KG
|
|
Packing Type
|
Carton
|
|
Out packing size
|
20X15X10
|
|
Out packing Weight
|
0.5KG
|
| Compatible equipment models: 4451039: | |||||||||||
| HU230-A IZX200 IZX200LC MA200 MA200-G SR2000G VR512 VR516FS ZR130HC ZR420JC ZR900TS ZR950JC ZX140W-3 ZX140W-3-AMS ZX140W-3DARUMA ZX145W-3 ZX145W-3-AMS ZX160LC-3 ZX160LC-3-AMS ZX160LC-3-HCME ZX170W-3 ZX170W-3-AMS ZX170W-3DARUMA ZX180LC-3 ZX180LC-3-HCME ZX180W ZX180W-AMS ZX190W-3 ZX190W-3-AMS ZX190W-3DARUMA ZX200 ZX200-3 ZX200-3-HCMC ZX200-3G ZX200-5G ZX200-E ZX200-HHE ZX200-X ZX200LC-5G ZX200LC-HHE ZX210-3-AMS ZX210-3-HCME ZX210-AMS ZX210-HCME ZX210H ZX210H-3 ZX210H-3-HCMC ZX210H-3G ZX210H-5G ZX210K ZX210K-3 ZX210K-3-HCMC ZX210K-3G ZX210K-5G ZX210LC-3-HCMC ZX210LC-3G ZX210LCH-5G ZX210LCK-3-HCMC ZX210LCK-5G ZX210N-3-AMS ZX210N-3-HCME ZX210N-AMS ZX210N-HCME ZX210W ZX210W-3 ZX210W-3-AMS ZX210W-3-HCMC ZX210W-3DARUMA ZX210W-AMS ZX220W-3 ZX225US ZX225US-3 ZX225US-3-HCME ZX225US-E ZX225US-HCME ZX225USR ZX225USR-3 ZX225USR-E ZX225USR-HCME ZX225USRK ZX225USRK-3 ZX230 ZX230-HHE ZX240-3 ZX240-3-AMS ZX240-3-HCMC ZX240-3G ZX240-5G ZX240-AMS ZX240-HCME ZX240H ZX240K ZX240LC-3G ZX240LC-5G ZX240LC-HHE ZX240N-3-HCME ZX250-AMS ZX250-HCME ZX250H-3 ZX250H-3G ZX250H-5G ZX250K-3 ZX250K-3G ZX250K-5G ZX250LC-3-HCMC ZX250LC-3-HCME ZX250LC-3G ZX250LCH-5G ZX250LCK-5G ZX250W-3 ZX260LCH-3G ZX270 ZX270-3 ZX270-HHE ZX280-5G ZX180LC-3-AMS ZX280LC-3 ZX280LC-3-HCME ZX280LC-5G ZX280LC-AMS ZX280LC-HCME ZX280LCH-3 ZX300W ZX360W-3 |
|||||||||||

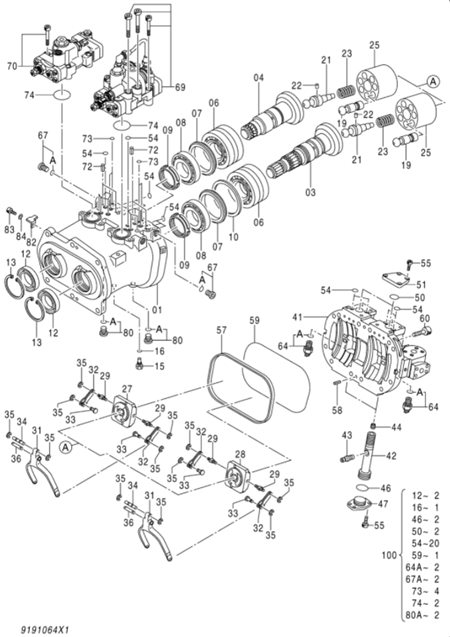

Parts on group PUMP;UNIT:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| +++++++ | [1] | PUMP;UNIT | ||
| 1. | 1032319 | [1] | CASING;PUMP | |
| 3. | 2043207 | [1] | DISC;DRIVING | |
| 4. | 2043211 | [1] | DISC;DRIVING | |
| 6. | 4410050 | [2] | BRG.;ROL. | |
| 7. | 4339171 | [2] | RING | |
| 8. | 4622945 | [2] | BRG.;ROL. | |
| 9. | 4178173 | [2] | NUT;BRG. | |
| 10. | 4338907 | [1] | RING;THRUST | |
| 12. | 4333170 | [2] | SEAL;OIL | |
| 13. | 4116290 | [2] | RING;RETAINING | |
| 15. | 4233165 | [1] | PLUG | |
| 16. | 957366 | [1] | O-RING | |
| 19. | 8059452 | [14] | PISTON | |
| 21. | 4337035 | [2] | SHAFT;CENTER | |
| 22. | 4198956 | [2] | PIN | |
| 23. | 4179181 | [2] | SPRING;COMPRES. | |
| 25. | 2036744 | [2] | ROTOR | |
| 27. | 2036795 | [1] | VALVE | |
| 28. | 2036786 | [1] | VALVE | |
| 29. | 4179179 | [4] | PIN | |
| 31. | 3075674 | [2] | LINK;E | |
| 32. | 9724756 | [4] | LEVER | |
| 33. | 4179177 | [4] | PIN | |
| 34. | 4179176 | [2] | PIN | |
| 35. | 4146370 | [12] | RING;RETAINING | |
| 36. | 4200227 | [2] | PIN | |
| 41. | 1027131 | [1] | HEAD | |
| 42. | 3069541 | [2] | PISTON;SERVO | |
| 43. | 4338053 | [2] | PIN | |
| 44. | 4337812 | [2] | SCREW;SET | |
| 46. | 4355085 | [2] | O-RING | |
| 47. | 4338060 | [2] | STOPPER | |
| 50. | 4355083 | [2] | O-RING | |
| 51. | 4338061 | [2] | STOPPER | |
| 54. | 4180349 | [20] | O-RING | |
| 55. | M340825 | [16] | BOLT;SOCKET | |
| 57. | 3070581 | [1] | RING;BACKUP | |
| 58. | 4099290 | [2] | PIN;SPRING | |
| 59. | 4342840 | [1] | O-RING | |
| 60. | M341245 | [12] | BOLT;SOCKET | |
| 64. | 4436271 | [2] | SENSOR;PRES. | |
| 64A. | 4365826 | [1] | O-RING | |
| 67. | 9134110 | [2] | PLUG | |
| 67A. | 957366 | [1] | O-RING | |
| 69. | +++++++ | [1] | REGULATOR;L | I 9207258 <for assembly of machine><for details see "REGULATOR (L)"> |
| 69. | 9207258 | [1] | REGULATOR;L | <for transportation> |
| 70. | +++++++ | [1] | REGULATOR;R | I 9207259 <for assembly of machine><for details see "REGULATOR (R)"> |
| 70. | 9207259 | [1] | REGULATOR;R | <for transportation> |
| 72. | 4515041 | [4] | PIN;SPRING | |
| 73. | 4343074 | [4] | O-RING | |
| 74. | 4348665 | [2] | O-RING | |
| 80. | 9134111 | [2] | PLUG | |
| 80A. | 4509180 | [1] | O-RING | |
| 82. | 4252767 | [1] | BRACKET | |
| 83. | M340613 | [1] | BOLT;SOCKET | |
| 84. | A590908 | [1] | WASHER;SPRING | |
| 100. | 4451039 | [1] | KIT;SEAL |

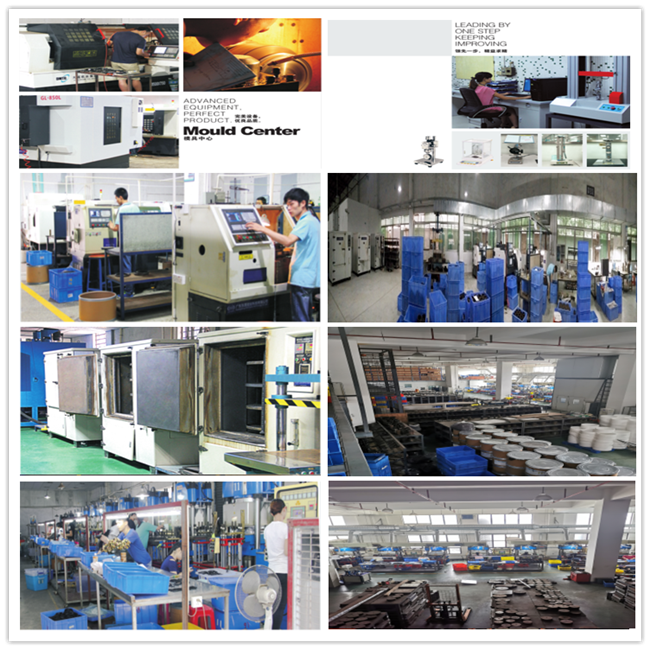

Factory Dedails
