China Single Mode Fiber Optical Coupler , 1x2 Fiber Coupler Low Insertion Loss for sale

Single Mode Fiber Optical Coupler , 1x2 Fiber Coupler Low Insertion Loss

Price Negotiable

Price: Negotiable

MOQ: 10

Delivery Time: 7-10 day

Brand: GaPho

Product Description

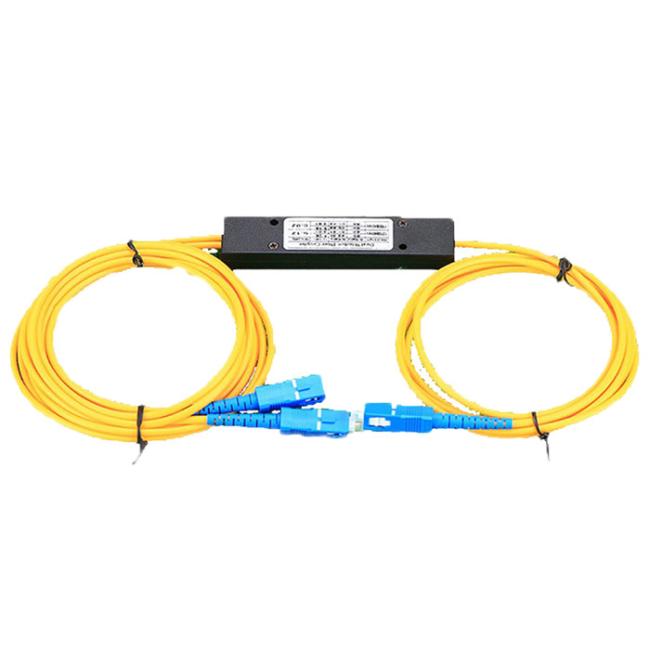

Fiber Optical Coupler 1x2 Single Mode Fiber Coupler Module

Features

The 1x2 single-mode fiber coupler module has low insertion loss, low polarization-related loss, and stable and reliable quality. Suitable for optical fiber communication network and test equipment.

Low insertion loss, high return loss, small PDL, stable and reliable.

Parameter Type		1X2 SSC		1X2 DWC
Center wavelength(nm)		1310/1550/other		1310,1550		1310,1550
Wavelength range(nm)		±15		±40		±80
level		P	A	P	A	P	A
Additional loss(dB)		≤0.07	≤0.10	≤0.07	≤0. 10	≤0.07	≤0. 10
Insertion loss(dB )	50/50	≤3.40	≤3.60	≤3.60	≤3. 80	≤3.80	≤4.00
	40/60	≤4.4/2.6	≤4.7/2.8	≤4.7/2. 7	≤4.9/2.9	≤5.0/2.8	≤5.2/3.0
	30/70	≤5.7/1.9	≤6.0/2.0	≤6. 0/1.9	≤6. 3/2.1	≤6.4/2. 0	≤6. 7/2. 2
	20/80	≤7.6/1.25	≤8.0/1.35	U 9/1. 3	≤8. 4/1. 4	≤8. 3/1. 3	≤8. 7/1. 5
	10/90	9. 2-11.0/≤0.65	9.0-11.2 /≤O. 80	9. 2-11.2 /≤O. 75	8.5.4 /≤O. 80	9. 5-11.05 /≤O.75	8. 75-11. 45 /≤O. 80
	5/95	12.0-14.2 /≤0.40	11.75-14.45 /≤O.50	12.05-14.15 /≤O. 40	11.60-14.60 /≤O. 50	12.0-14.25 /≤O. 45	11. 50-14. 70 /≤O. 50
	2/98	15.7-18.5 /≤O.25	15.35-18.85 /≤O.35	15.75-18.45 /≤0. 30	15.15-19. 0 /≤O. 40	15. 60-18. 60 /≤O. 30	14.95-19.20 /≤O. 40
	1/99	18.55-21.5 /≤O.20	18.15-22.0 /≤O.30	18.60-21.60 /≤O. 25	17.95-22. 25 /≤O. 35	18. 35-21.85 /≤O. 25	17.60-22. 55 /≤O. 30
Polarization dependent loss(PDL) (dB)		≤0.10	≤0.15	≤0. 15	≤0.20	≤0. 15	≤0.20
Return loss(dB)		>55
Operating temperature(°C )		-5~+70
Storage temperature(°C )		-40~+85

Parameter Type		1X2 TWC		1X2 WBC
Center wavelength (nm)		1310, 1490, 1550		1310,1550 or C+L		C or L
Wavelength range (nm)		±40 ( 1490±10)		±40		1528-1565 or 1570-1605
Level		P	A	P	A	P	A
Additional loss (dB)		≤0.07	≤0.10	≤0.07	≤0.10	≤0.07	≤0.10
Insertion loss(dB )	50/50	≤3.60	≤3.80	≤3.40	≤3.60	≤3.35	≤3.50
	40/60	≤4.7/2.7	≤4.9/2.9	≤4.4/2.6	≤4.7/2.8	≤4.4/2.55	≤4.6/2.7
	30/70	≤6.0/1.9	≤6.3/2.1	≤5.7/1.9	≤6.0/2.0	≤5.7/1.85	≤5.9/1.95
	20/80	≤7.9/1.30	≤8.4/1.40	≤7.6/1.25	≤8.0/1.3	≤7.55/1.25	≤7.8/1.3
	10/90	9.2-11.0/≤0.75	8.8-11.40 /≤0.80	9.55-10.65 /≤O.65	9.3-10.9 /≤O. 80	9.55-10.60 /≤O. 65	9.35-10.85 /≤O.80
	5/95	12.05-14.2/≤0.40	11.55-14.65 /≤O.50	12.4~13.80 /≤O.40	12.10~14.10 /≤O.50	12.45-13.75 /≤O. 40	12.15~14.05 /≤O.45
	2/98	15.60-18.55 /≤0.30	15.00-19.20 /≤O.40	16.10-18.05 /≤O.25	15.70-18.45 /CO. 35	16.20-17.95 /≤O.25	15.80-18.35 /≤O.30
	1/99	18.45-21.7 /≤0.25	17.8-22.4 /≤O. 35	19.05-21.15 /≤O.20	18.55-21.65 /≤O.30	19.10-21.10 /≤O.20	18.65-21.55 /≤O.30
Polarization dependent loss (PDL) (dB)		≤0.15	≤0.20	≤0.10	≤0.15	≤0.10	≤0.15
Return loss (dB)		≥55
Working temperature (℃)		-5~+70
Storage temperature (℃)		-40~+85

serial number	illustrate	Options
XXX	Device type	SSC / DWC / TWC/ WBC
X	Level	P = P,A = A,S =custom made
X	Port type	1 = 1X2, 2 = 2X2
XXXX	Center wavelength	1550 = 1550nm,1310 = 1310nm,1310/1550 = 1310nm/1550nmother
XX	Split ratio	01 = 1/99, - 05 = 5/95 …,50 = 50/50
X	Fiber type	0 = SMF-28e,2 = other
XXXX	Pigtail type	250 = 250um,900 = 900um,2000 = 2.0mm,3000 = 3.0mm
XX	Interface Type	FA = FC/APC, FU = FC/UPC, SA = SC/APC, SU = SC/UPC, LA = LC/APC, LU = LC/UPC, M = None
XXXX	Package size	PS1= 90X20X lOmm
