ITU 20-60 1X2 200Ghz Dense Wavelength Division Multiplexer For Fiber Optical Amplifier
Price:
negotiate
MOQ:
100
Delivery Time:
7-10 day
Brand:
GAPHO
Product Description
1529.55~1561.42(ITU 20~ 60)1X2 200GhzDWDM for FIber Optical Amplifier CATV Epoxy System with Epoxy Free Optic path

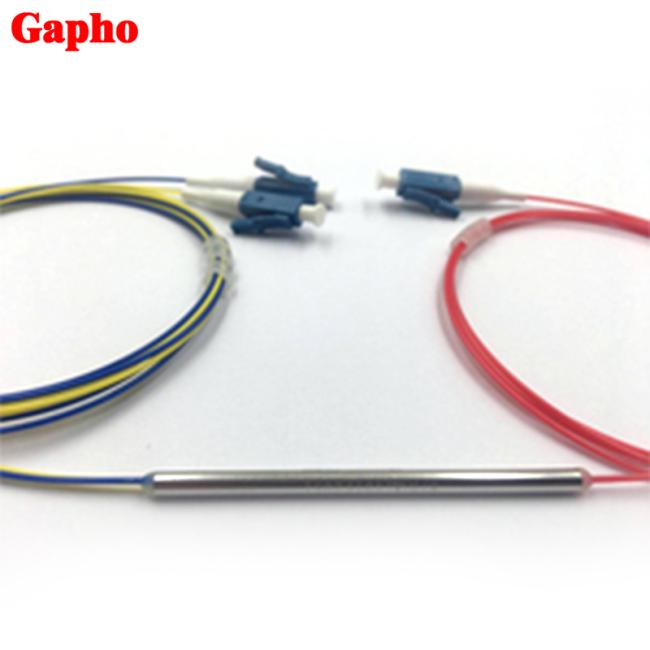

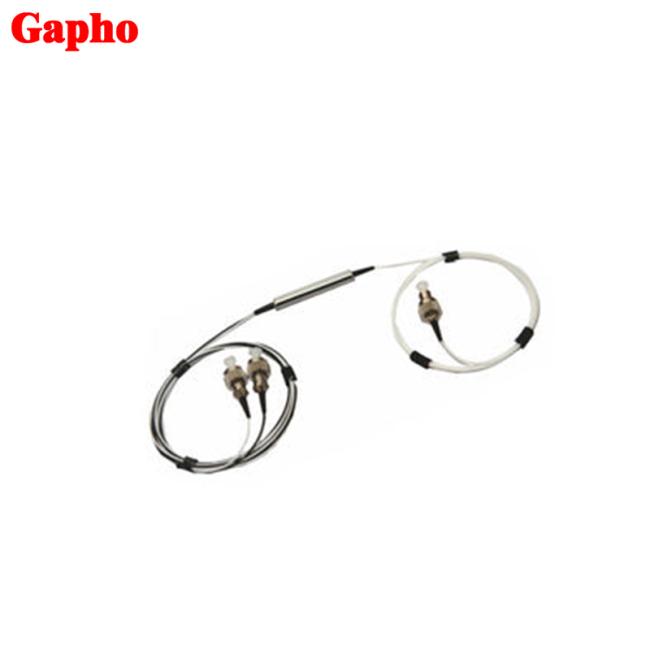

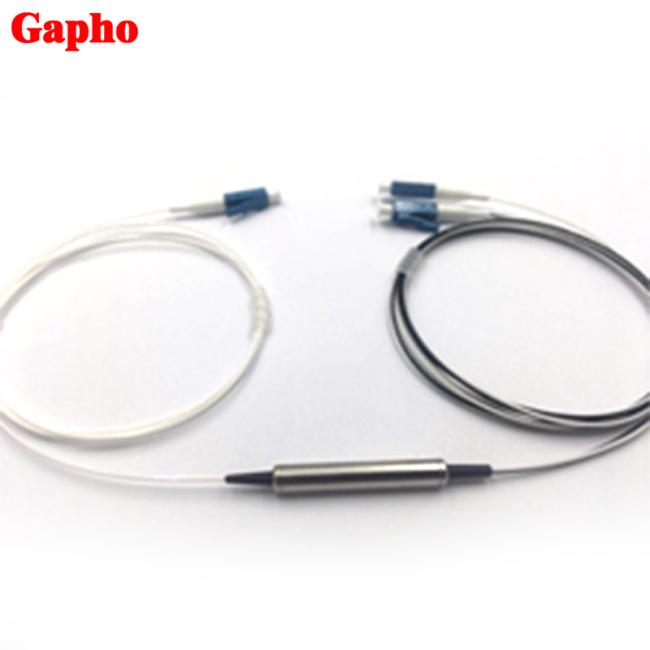

1X2 200Ghz Dense Wavelength Division Multiplexer (DWDM)
Describetion:
200GHz 1x2 DWDM Device(3 ports) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path. It can be used for wavelength add/drop in telecommunication network system.
Features:
- Low Insertion Loss
- High Channel Isolation
- High stability and reliability
- Epoxy Free Optical Path
Application:
- DWDM Network
- Wavelength Routing
- Fiber Optical Amplifier
- CATV Fiber optic System
Specifications:
| Parameter | 1x2 200Ghz DWDM | |
| Channel Wavelength (nm) | 1529.55~1561.42 (ITU 20~ 60) | |
| Center Wavelength Accuracy (nm) | ± 0.1 | |
| Channel Passband (@-0.5dB bandwidth)(nm) | ≥ 0.5 | |
| Insertion Loss (dB) | Add / Drop Ch. | ≤ 0.9 |
| Express Ch. | ≤0.4 | |
| Channel Ripple (dB) | ≤ 0.4 | |
| Isolation(dB) | Adjacent Ch | ≥ 30 |
| Non-adjacent Ch | ≥40 | |
| Express Channel Isolation (dB) | ≥ 12 | |
| Insertion Loss Temperature Sensitivity(dB/°C ) | < 0.003 | |
| Wavelength Temperature Shifting (nm/ °C) | < 0.002 | |
| Polarization Dependent Loss (dB) | ≤ 0.10 | |
| Polarization Mode Dispersion (ps) | ≤ 0.1 | |
| Directivity (dB) | ≥ 50 | |
| Return Loss (dB) | ≥45 | |
| Power Handling (mW) | ≤300 | |
| Operating Temperature (°C) | 0 ~ +70 | |
| Storage Temperature (°C) | -40 ~ +85 | |
| Package Dimension (mm) | Ø5.5 x L34 | |
Ordering information:
|
DWDM
|
Channel Type |
Spacing | ITU Channel | Pigtail Type |
Fiber Type |
Length |
Connector
|
|
1=1ch
|
2=100Ghz
|
21=21ch 22=22ch …… 60=60ch
|
250=250um bare fiber 900=900um loose tube 2000=2mm loose tube 3000=3mm loose tube |
1=SMF- 28e
|
1= 1m X=Specify
|
NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC MU=MU/UPC XX=Other |
