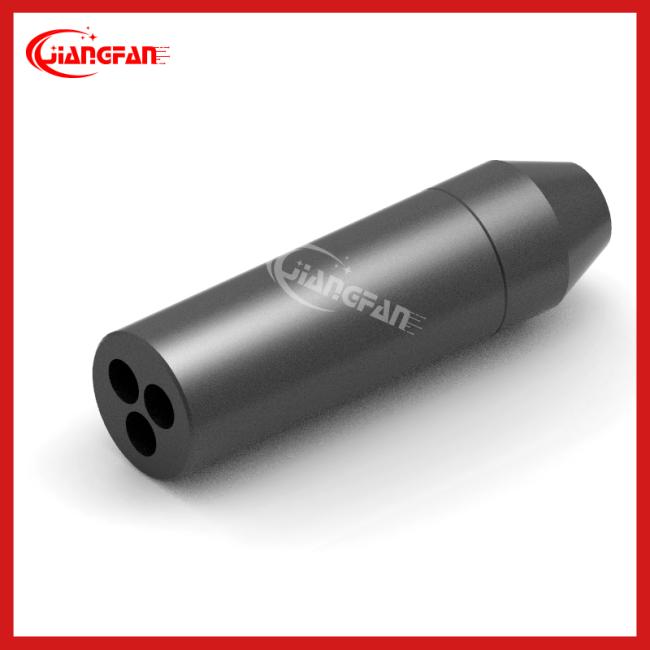

FZQ-01 Bundle Splitter Fiber Fan Out Kit Cable Dia 3-7mm Plastic Hose
FZQ-01 Optical cable splitter
fiber optic fan out kit ,FZQ-01bundle splitter,cable dia 3-7mm,2/4/6/8/12/24core,armored fiber optic cable,plastic hose
Product application:
it is used to fix the connection between branch protection tube and optical cable, protect the optical fiber with diameter less than 0.5mm from accidental breaking and damage, make the product tensile resistance, bending resistance, more stable optical fiber data, safe and firm, and beautiful product appearance.
Usage:

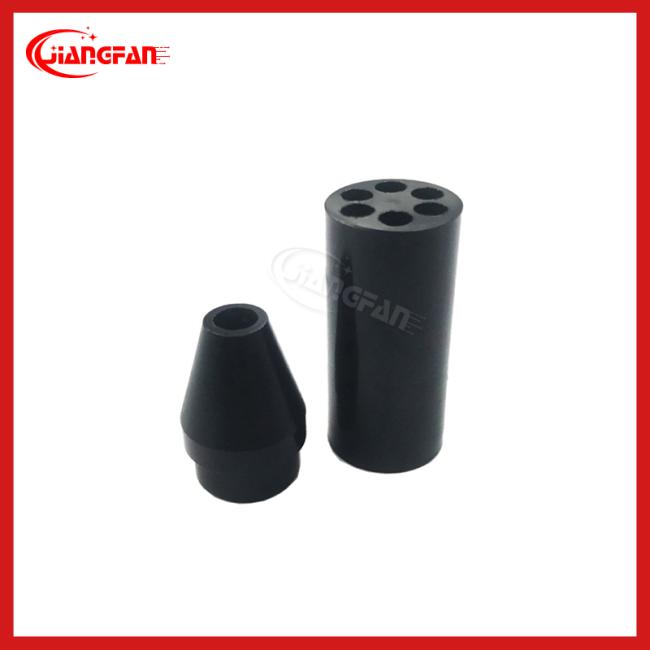

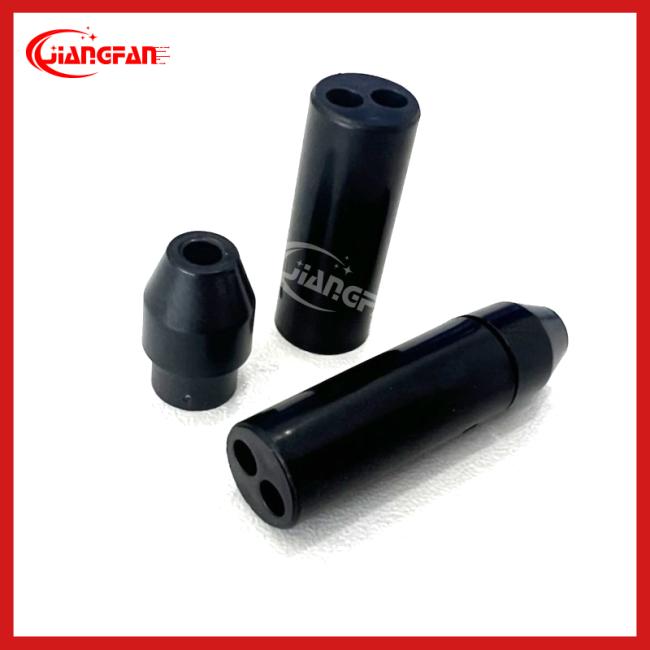

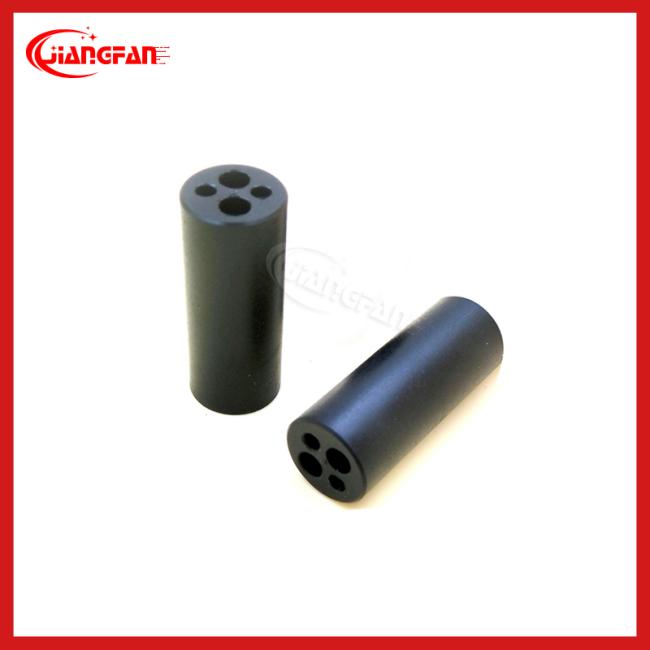

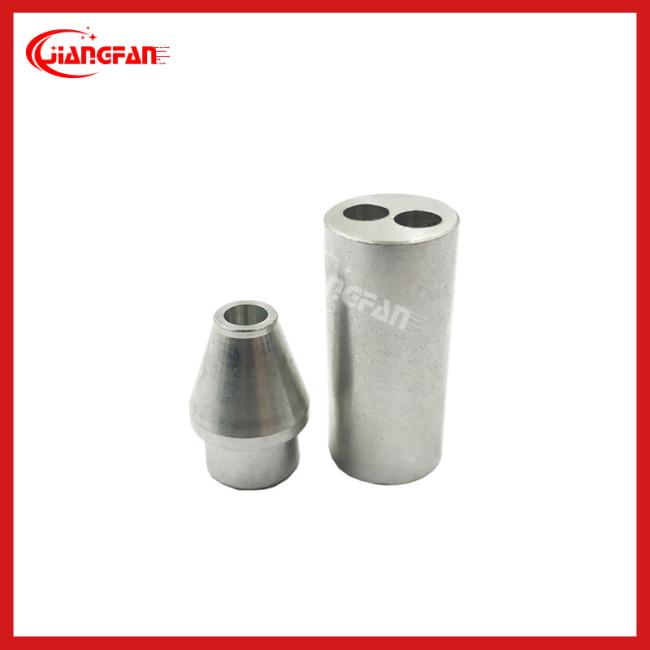

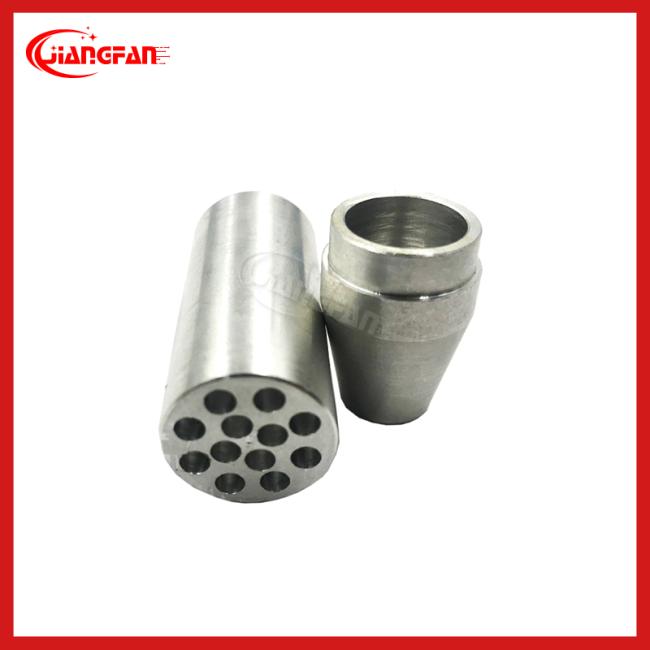

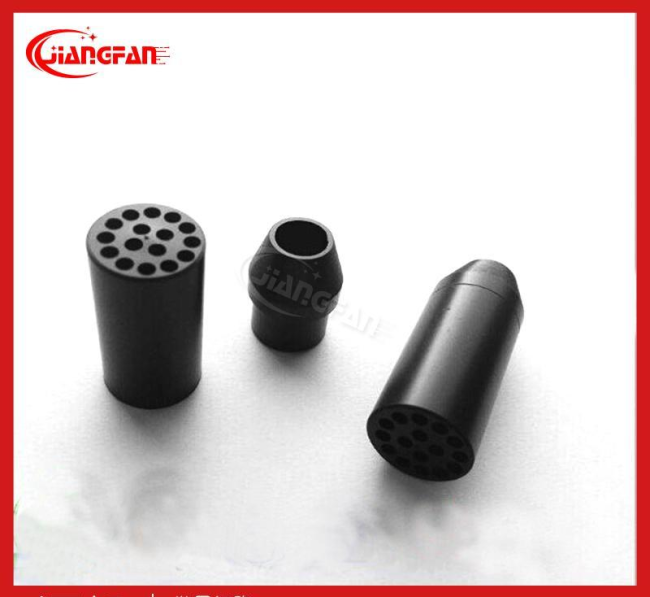

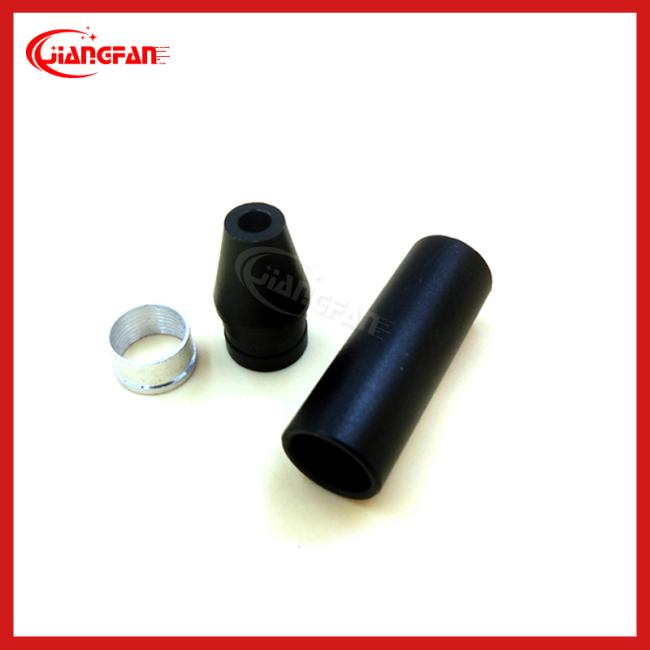

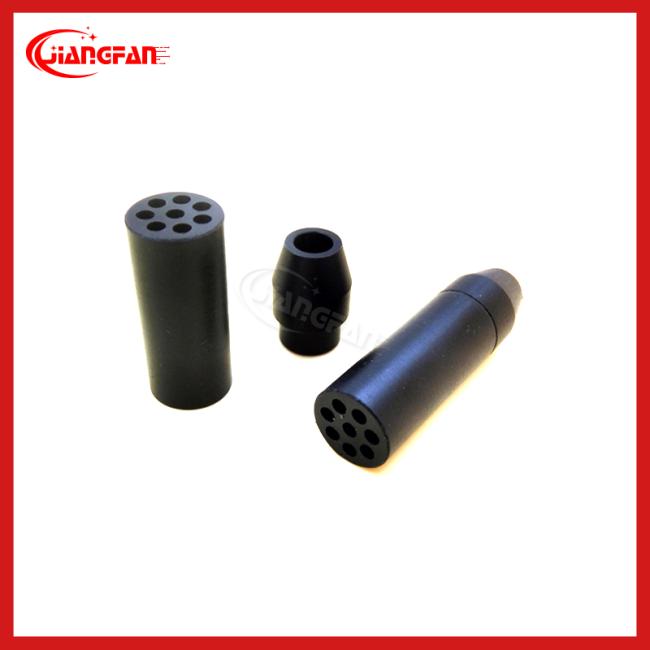

The product components are composed of branch end, main body and optical cable end (different product models and different number of components). The branch end is the accessory of fixed protective tube, and the optical cable end is the component of fixed optical cable. Fixing methods: generally, there are metal ring fixing, glue filling, extrusion deformation and other fixing methods.
Product ordering:
You can choose according to our specification table. If you don't choose the right product! We can design and customize production according to customer requirements.
Material available:stainless steel/aluminum alloy/copper/iron/POM
Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser LOGO
Color:conventional color is blank,sliver white,customizable in any other color.It is suitable for all round indoorcables,outdoor cables,waterproof cables,armored cables,photoelecric composite cables and FTTH cables.

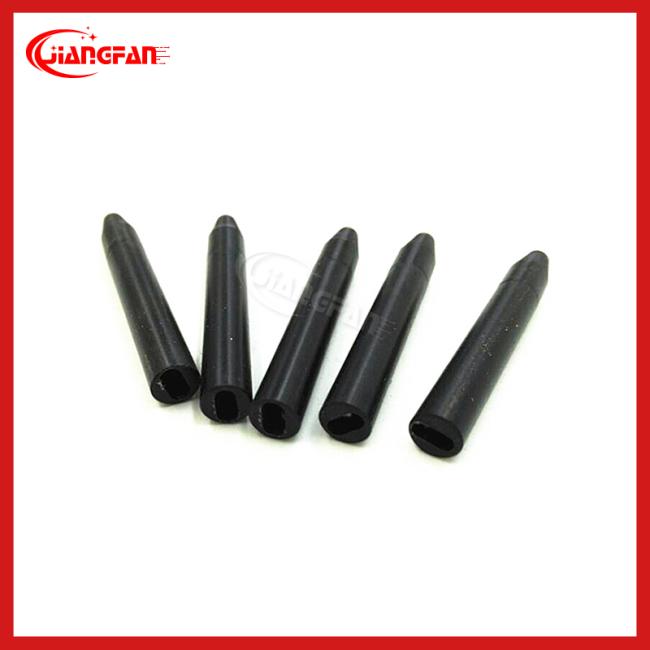

Accessories:heat shrinkable tube,glue,protective sleeve,fixing ring,screw,spanner
Application:
- Bunch cable branch
- Armored fiber optic cable branch
- Field optical cable branch
- Various optical/cable branch solutions
Features:
- Material non-metal black
- POM material
- High temperature resistant to ROHS
- Fast and easy fixing
Product structure dimension drawing:
Product specification diagram:
FZQ-01 Specifications:
| Number | Product number | φOD x L | ID 2 core | cable dia | color |
| 1 | FZQ-01-01 | φ10*35 | 2core2.0 | 3-7mm or other | Steel/Aluminum/Copper/Plastic |
| 2 | FZQ-01-02 | φ10*35 | 2core3.0 | 3-7mm or other | Steel/Aluminum/Copper/Plastic |
| 3 | FZQ-01-03 | φ10*35 | 4core2.0 | 3-7mm or other | Steel/Aluminum/Copper/Plastic |
| 4 | FZQ-01-04 | φ10*35 | 4core3.0 | 3-7mm or other | Steel/Aluminum/Copper/Plastic |
| 5 | FZQ-01-05 | φ10*35 | 6core2.0 | 3-7mm or other | Steel/Aluminum/Copper/Plastic |
| 6 | FZQ-01-06 | φ14*40 | 6core3.0 | 3-10mm or other | Steel/Aluminum/Copper/Plastic |
| 7 | FZQ-01-07 | φ14*40 | 8core2.0 | 3-10mm or other | Steel/Aluminum/Copper/Plastic |
| 8 | FZQ-01-08 | φ14*40 | 8core3.0 | 3-10mm or other | Steel/Aluminum/Copper/Plastic |
| 9 | FZQ-01-09 | Ø10.5*40 | 12core2.0 | 3-11mm or other | Steel/Aluminum/Copper/Plastic |
| 10 | FZQ-01-10 | Ø14*35 | 16core2.0 | 3-11mm or other | Steel/Aluminum/Copper/Plastic |
| 11 | FZQ-01-11 | Ø16*41 | 24core2.0 | 3-11mm or other | Steel/Aluminum/Copper/Plastic |
| 16 | FZQ-01-12 | Ø22*60 | 24core2.5 | 3-11mm or other | Steel/Aluminum/Copper/Plastic |
| 17 | FZQ-01-13 | 24core3.0 | Steel/Aluminum/Copper/Plastic | ||
| 18 | FZQ-01-14 | 24core0.9 | Steel/Aluminum/Copper/Plastic | ||
| 19 | FZQ-01-15 | 36core0.9 | Steel/Aluminum/Copper/Plastic | ||
| 20 | FZQ-01-16 | 36core2.0 | Steel/Aluminum/Copper/Plastic | ||
| 21 | FZQ-01-17 | 36core3.0 | Steel/Aluminum/Copper/Plastic | ||
| 22 | FZQ-01-18 | 48core0.9 | Steel/Aluminum/Copper/Plastic | ||
| 23 | FZQ-01-19 | 48core2.0 | Steel/Aluminum/Copper/Plastic | ||
| 24 | FZQ-01-20 | 48core3.0 | Steel/Aluminum/Copper/Plastic | ||
| 25 | FZQ-01-21 | 72core0.9 | Steel/Aluminum/Copper/Plastic | ||
| 26 | FZQ-01-22 | 72core2.0 | Steel/Aluminum/Copper/Plastic | ||
| 27 | FZQ-01-23 | 96core0.9 | Steel/Aluminum/Copper/Plastic | ||
| 28 | FZQ-01-24 | 96core2.0 | Steel/Aluminum/Copper/Plastic |
FZQ-01 product ordering information:
|
Core No. OD2 |
Core Dia OD2 |
OD Cable Dia |
OD1 Product Dia |
L Product Lenths |
material |
||||||
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | 5 | Other | 5 | Other | 5 | Other | ||
| 6 | 24core | ||||||||||
| 7 | Other | ||||||||||
