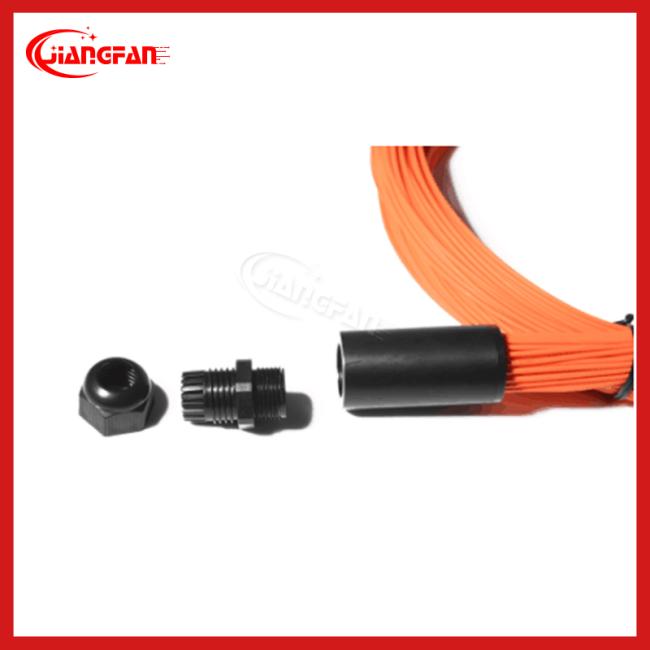

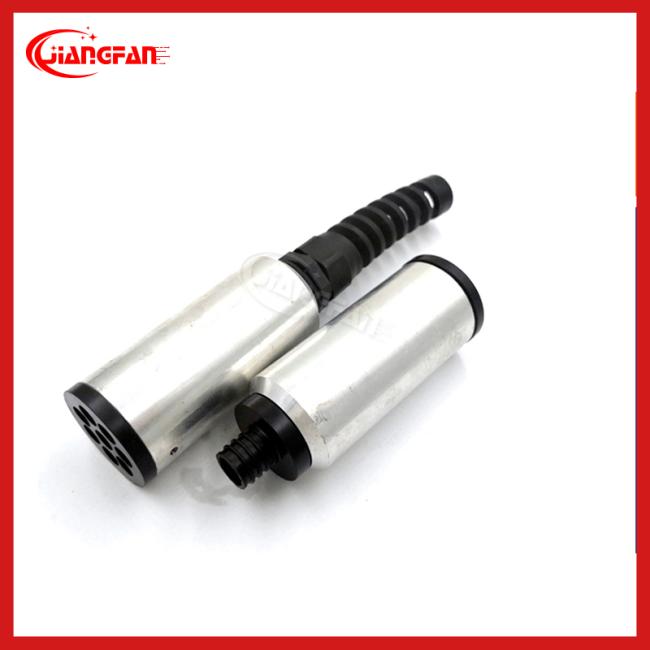

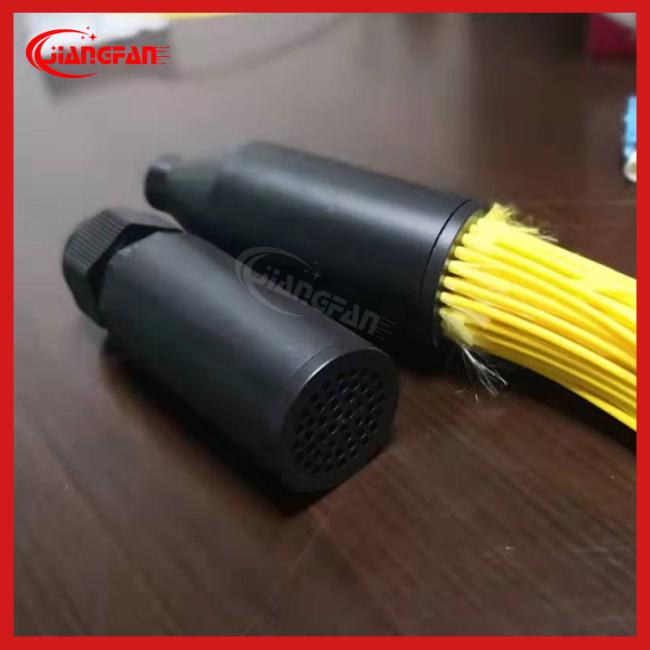

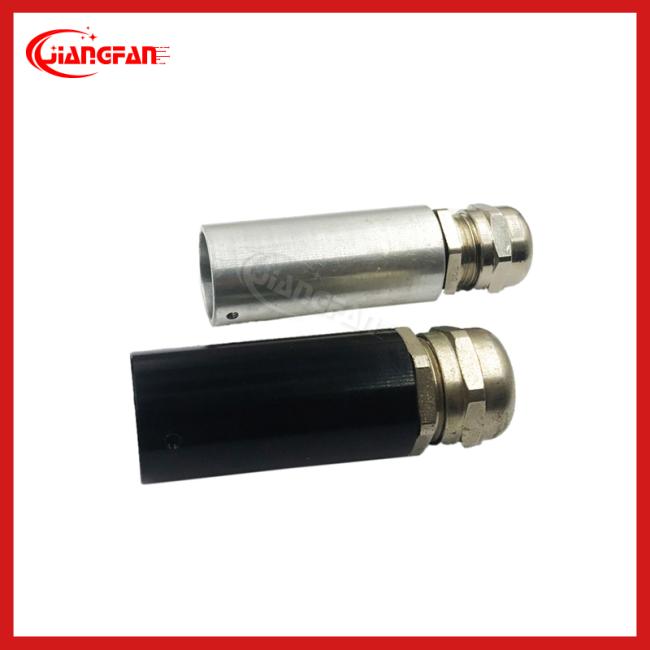

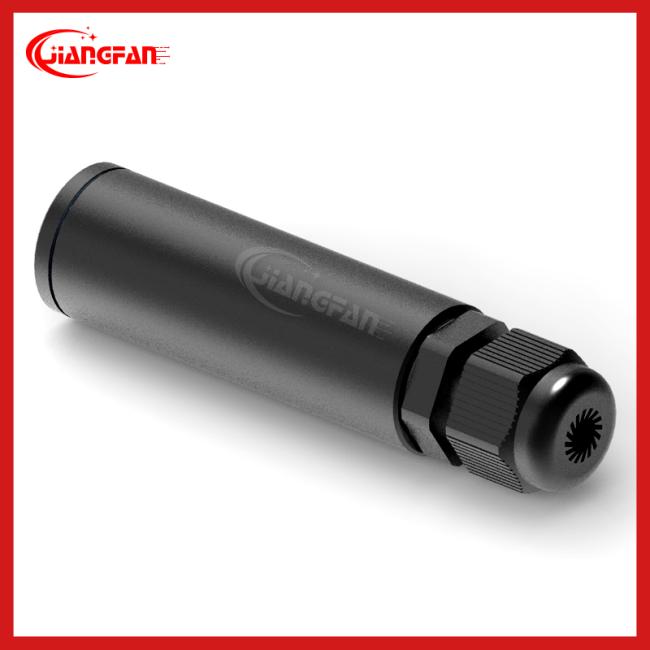

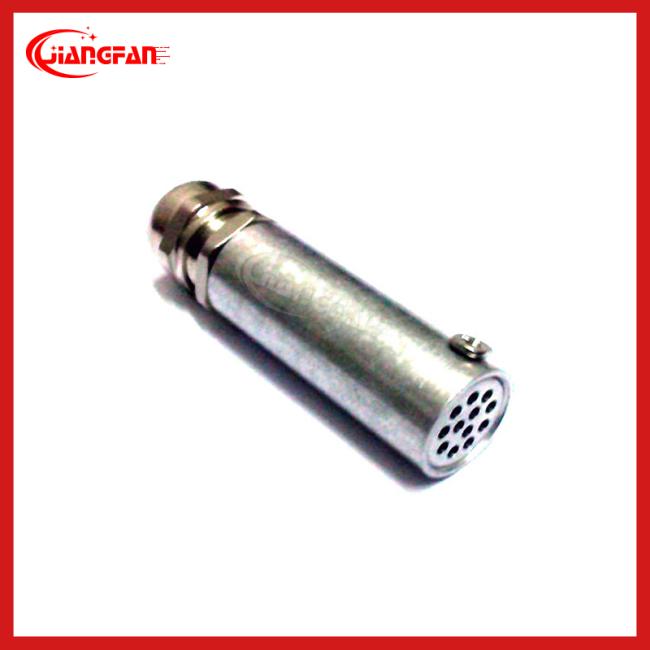

1 Separate 8 12 Cores Fiber Fan Out Kit Plastic Metal Tensile
FZQ-06 Optical cable Bundle splitter
Factory direct supply Fiber optical Fan out Kit 1 separate 8 cores 12coresPlastic metal tensile
Material available:stainless steel/aluminum alloy/copper/iron/POM
Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser LOGO
Color:conventional color is blank,sliver white,customizable in any other color.It is suitable for all round indoorcables,outdoor cables,waterproof cables,armored cables,photoelecric composite cables and FTTH cables.

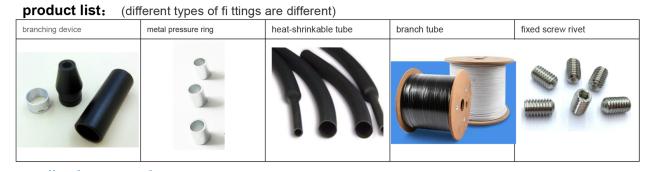

Accessories:heat shrinkable tube,glue,protective sleeve,fixing ring,screw,spanner.

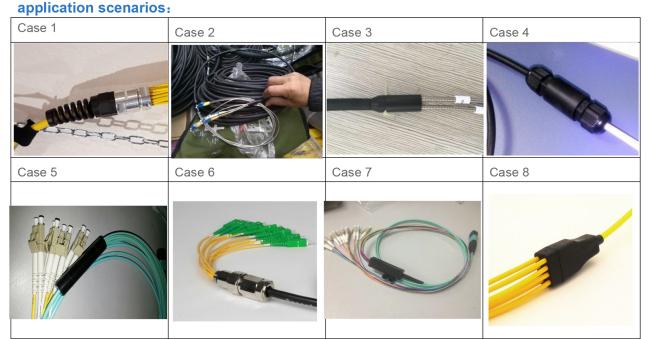

Application:
- Bunch cable branch
- Armored fiber optic cable branch
- Field optical cable branch
- Various optical/cable branch solutions
Features:
- Material non-metal black
- POM material
- High temperature resistant to ROHS
- Fast and easy fixing
Product structure dimension drawing:
FZQ-06 Specifications:
| Product Code | φOD x L | Specification | cable dia | product material |
| FZQ-06-01 | 20*50 | 6core2.0 | 3-8mm | Steel/Aluminum/Copper/Plastic |
| FZQ-06-02 | 20*50 | 6core3.0 | 3-8mm | Steel/Aluminum/Copper/Plastic |
| FZQ-06-03 | 22*55 | 12core2.0 | 3-8mm | Steel/Aluminum/Copper/Plastic |
| FZQ-06-04 | 22*55 | 12core3.0 | 6-10mm | Steel/Aluminum/Copper/Plastic |
| FZQ-06-05 | 24*55 | 24core2.0 | 6-10mm | Steel/Aluminum/Copper/Plastic |
| FZQ-06-06 | 26*60 | 24core3.0 | 6-12mm | Steel/Aluminum/Copper/Plastic |
| FZQ-06-07 | 28*62 | 48core2.0 | 6-12mm |
Steel/Aluminum/Copper/Plastic
|
FZQ-06 product ordering information:
|
Core No. OD2 |
Core Dia OD2 |
OD Cable Dia |
OD1 Product Dia |
L Product Lenths |
material |
||||||
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | 5 | Other | 5 | Other | 5 | Other | ||
| 6 | 24core | ||||||||||
| 7 | Other | ||||||||||

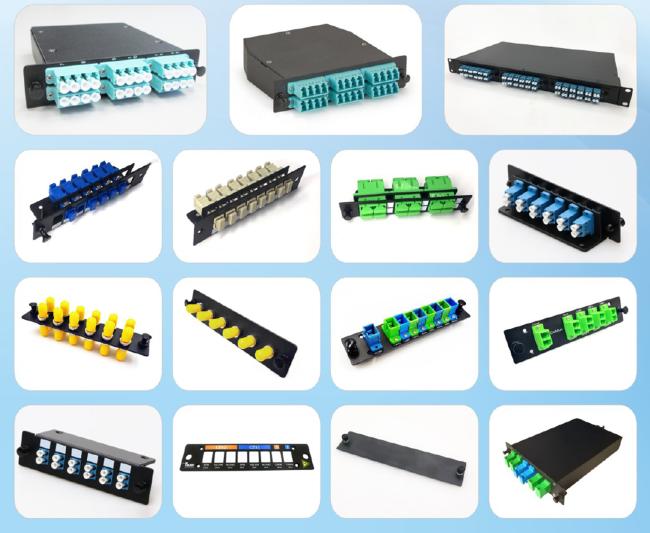

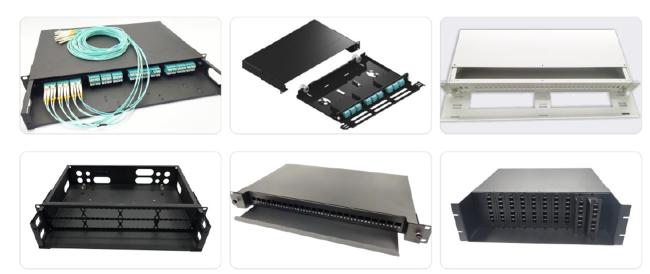

Other Products

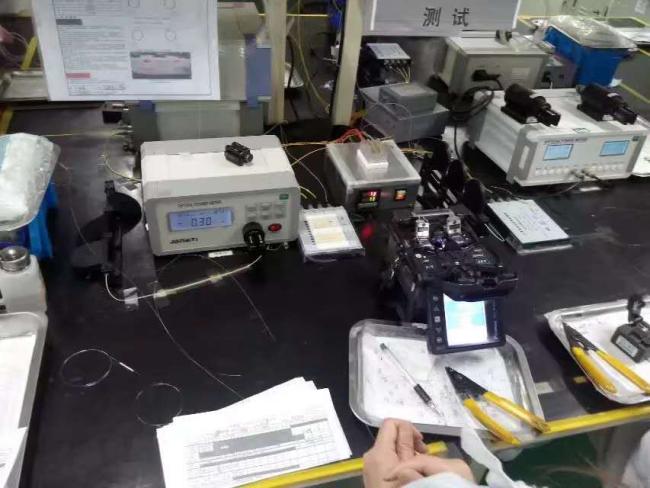

Operating environment
