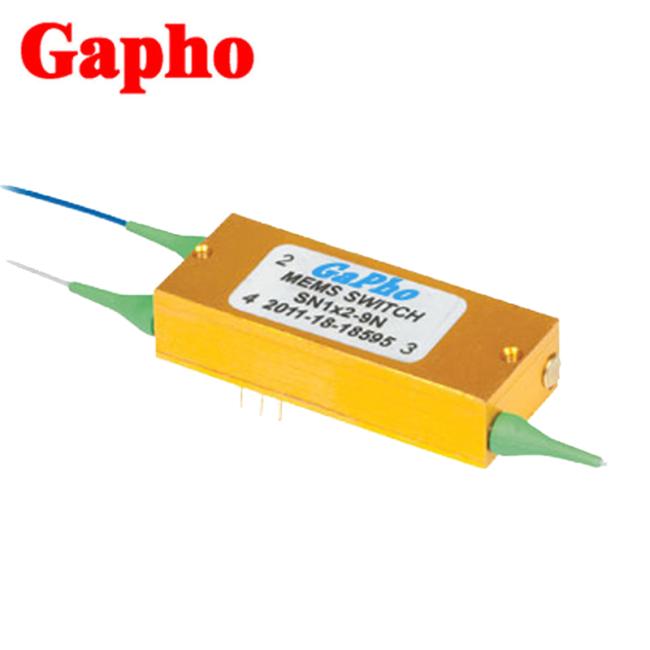

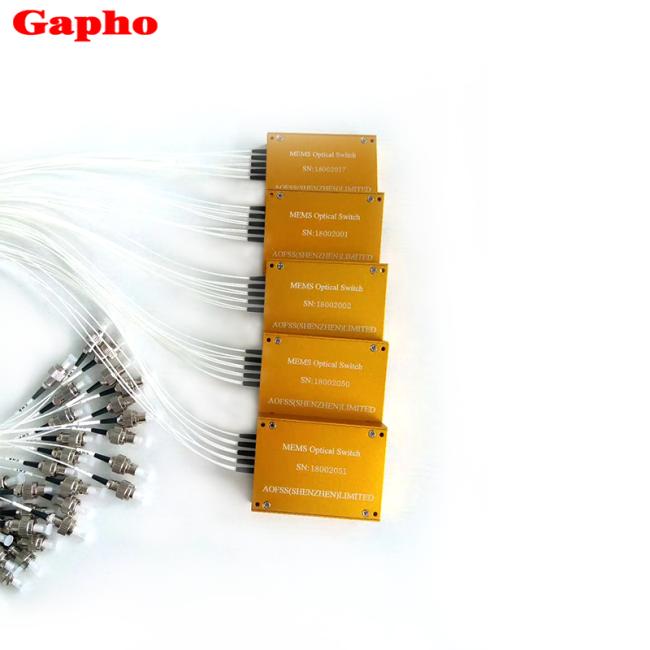

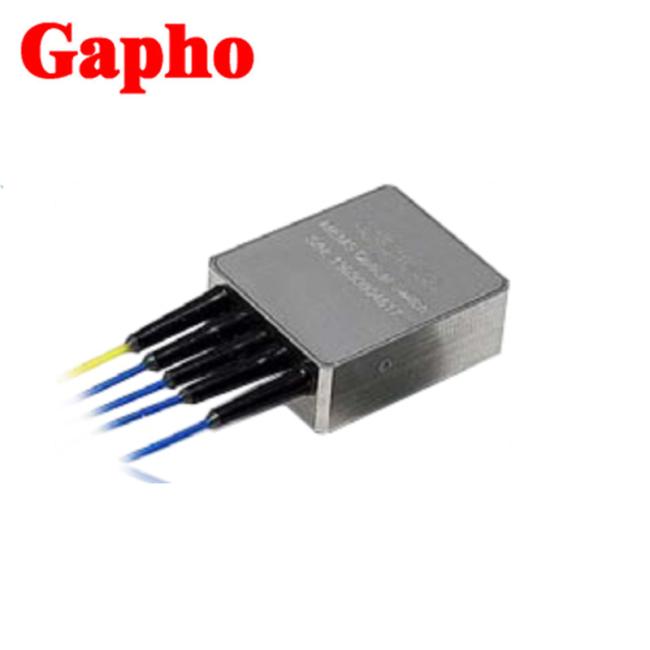

2x2 MEMS Fiber Optical Switch Dia 250um 900um Wavelength 1310 / 1550Nm
2x2 MEMS optical Switch fiber dia 250um or 900um wavelength 1310/1550 nm and other E MEMS2X2 Optical Switch.ppt..pptx
| Features: | Application |
|
|
|
|
|
|
Description
The MEMS Latch Series 1x8 Fiber optic switch connects optical channels by redirecting incoming optical signals into selected output fibers. This is achieved using a patent pending MEMS configuration and activated via an electrical control signal. It uniquely features rugged thermal activated micro-mirror movements instead of rotation, and latches to preserve the selected optical path after the drive signal has been removed. This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost.
Specifications:
|

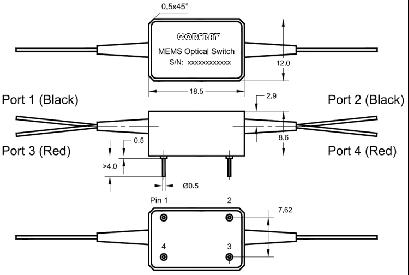

Dimensions

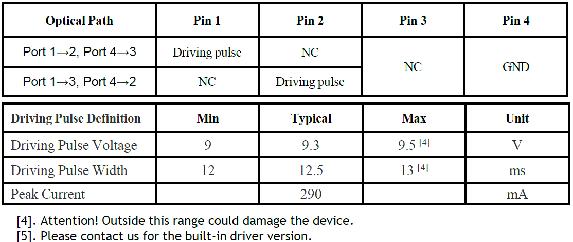

Electrical Driving Requirements
Ordering Information:MSW－1×8－A－B－C－D－E
| A | B | C | D | E |
| Mode | Wavelength | Fiber Diameter | Fiber Length | Connector |
|
SM:9/125um M5: 50/125um M6: 62.5/125um
|
85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm |
25:250um 90:900um |
05:0.5m 10:1.0m 15:1.5m |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
