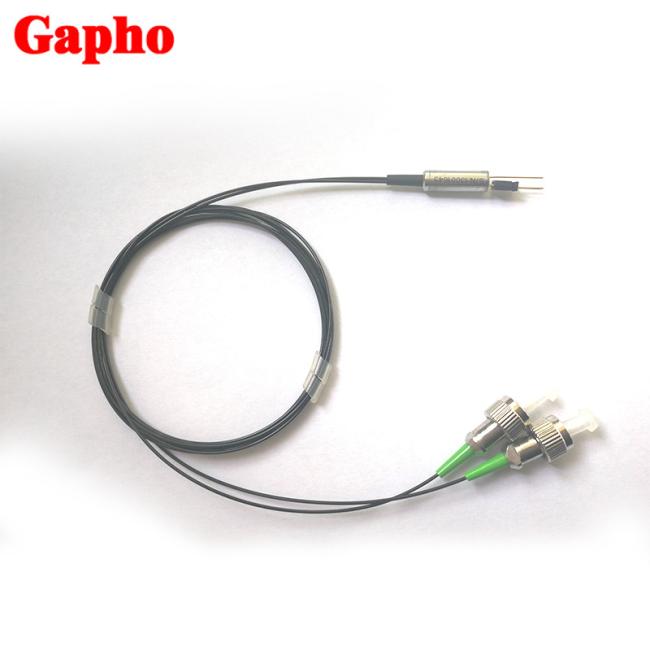

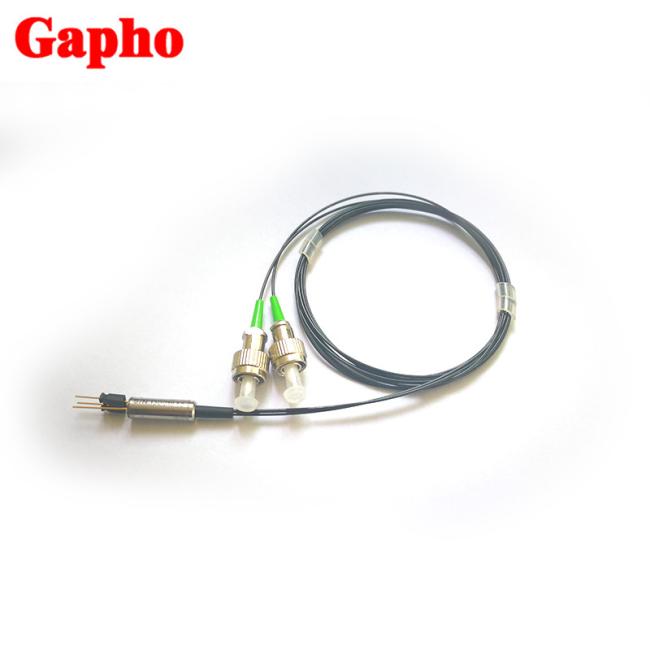

1064nm 2mm Loose Tube Fiber Optical Attenuator VOA Wide Attenuation Range
1064 nm fiber optical attenuator VOA 2mm loose tube wide attenuation rangePM VOA _1064,1310,1550_-16.docx
variable optical attenuator VOA is a kind of optical device which can reduce optical signal. It’s used to correct optical power
performance& optical calibration, and fiber signal attenuation, to ensure a stable link in network, and make optical power to
required level.
Features
- high precision &wide attenuation range
- low inaertion loss&high PER
- high stability and reliability
Application
- optical communication ayatems test
- fiber componenet test
- fiber sensor
specifications
| Parameter | Value | |
| Wavelength (nm) | 1310,1550 or 1310/1550 | 1064 |
| Bandwidth(nm) | ±40 | ±20 |
| Attenuation range (dB) | 0.6 ~40 | 0.6 ~40 |
| Original loss (dB) | ≤0.6 | ≤0.6 |
| Extinction ratio (dB) | >20 | >20 |
| Return loss (dB) | ≥ 50 | ≥ 50 |
| Adjustment Precision (dB) | 0.02 | 0.02 |
| Fiber type | PM 1310, PM1550 | PM 980 |
| Dimensions (mm) | 26× 18× 8 | |
| Operating temperature (℃) | -5 ~ +70 | |
| Storage temperature (℃) | -40 ~ +85 | |
ordering information
| PMVOA | Wavelength | Adjustment Type | Pigtail Type | Fiber Type | Length | Connector | |
| 13=1310 | 1= Hand | 900=900um | loose | 5=Panda | 0.8= | NE=None | |
| 15=1550 | adjustment | tube | fiber | 0.8m | FA=FC/APC | ||
| 1315=1310/1550 | 2= Screw | 2000=2mm | loose | FC=FC/UPC | |||
| adjustment | tube | SA=SC/APC | |||||
| 3000=3mm | loose | SC=SC/UPC | |||||
| tube | XX=Other | ||||||
company prolife
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
FAQ
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:When our company be established?
A: We started from year 2013
Q: Can you provide samples for customers?
A: Yes, but the shipping will be charged on the customer's account.
