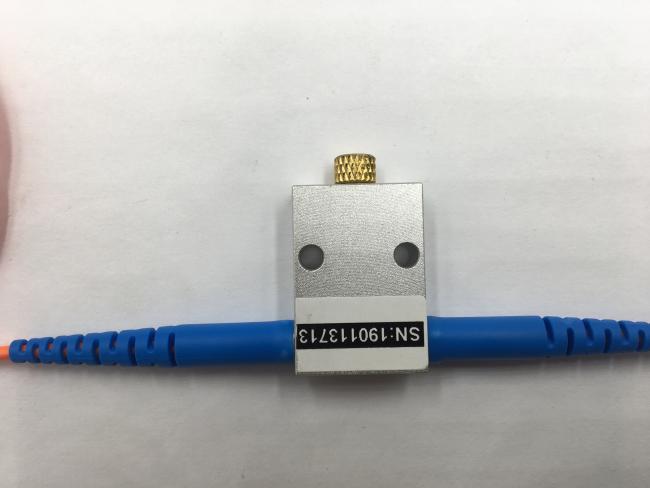

High Precision VOA 850nm Optical Fiber Attenuator FC SC LC Single Mode 26x16x8mm
High precision VOA 850 nm optical fiber attenuator FC SC LC single mode 26x16x8 mmMVOA 850.doc
Description
1,variable optical attenuator VOA is a kind of optical device which can reduce optical signal.
2,It’s used to correct optical power performance& optical calibration, and fiber signal attenuation, to ensure a stable link in network, and make optical power to required level.
Features
Ø Low original loss
Ø High precision
Ø Wide attenuation range
Ø Compact size
Application
Ø Optical passive component test
Ø Optics lab use
Ø Fiberoptic Systems Testing
specifications
| Parameters unit | ||||
| Operating Wavelength | nm | 850nm | ||
| Bandwidth | nm | ±40 | ||
| Insertion Loss | dB | Typ:0.8 Max:0.9 | ||
| Attenuation range | dB | 0.8~60 | ||
| PDL | dB | ≤0.1 | ||
| Return Loss | dB | ≥35 | ||
| Attenuation Precision | dB | ≤0.02 | ||
| Fiber Type | SMF-28e | |||
| Connector Type | FC SC LC customization is available. | |||
| Fiber Length | m | ≥1.0 | ||
| Transmission Power | mw | ≤500 | ||
| Operation Temperature | ℃ | -20～+70 | ||
| Storage Temperature | ℃ | -40～+85 | ||
| Dimension | mm | 26x16x8 | ||

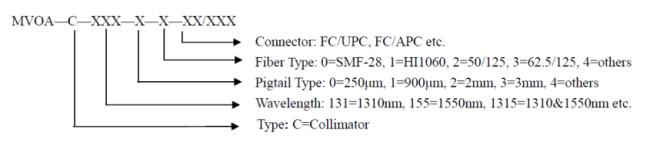

ordering information
company prolife
According to the customer's requirement.
We can provide packing according to customer's requirement, quantity, weight and volume.
Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
FAQ
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:When our company be established?
A: We started from year 2013
Q: Can you provide samples for customers?
A: Yes, but the shipping will be charged on the customer's account.
