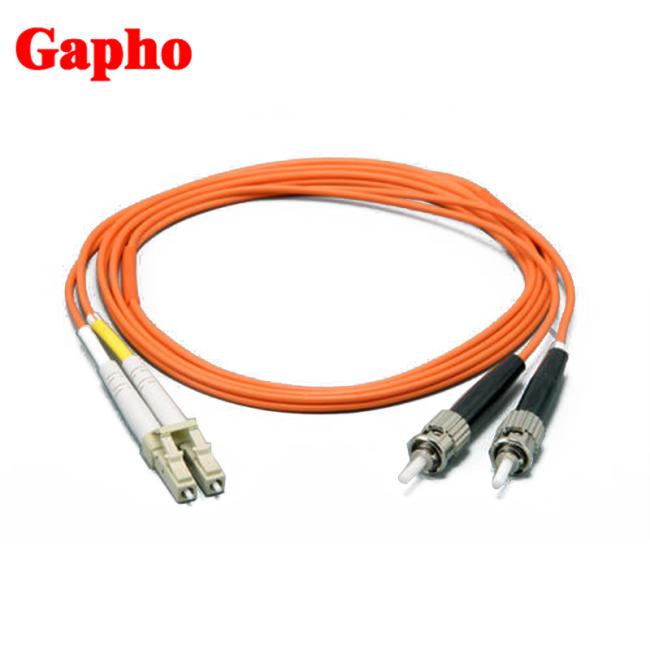

2 4 8 12 24 Core Bunched Pigtail Fiber Jumper Cable SC To LC FC ST Singlemode
fiber optic jumper
Fiber Patch Cable or Fiber jumper is an fiber cable that has fiber connectors installed on one or both ends. General use of these cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.It has a thick protective layer, which is generally used in the connection between the optical terminal and the terminal box, and in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and local area network.
| ITEM | VALUES |
| Insertion Loss |
≦ 0.15 dB Typical (SM) ≦ 0.2 dB Typical (MM) ≦ 0.3 dB Typical (MTRJ MM) |
| Return Loss |
＞ 40dB (PC) ＞ 45dB (SPC) ＞ 50dB (UPC) ＞ 60dB(APC) |
| Temperature Range | －40°C ~ 75°C |
| Durability | ＜ 0.2 dB change after 500 matings |
Features
- Compliant with JIS C-5973, Bellcore
- Optical performance 100% factory test
- Precision ceramic ferrule with end-face geometry per IEC proposal
- Riser & LSZH cable option
- Low insertion loss
- Low back reflection
Applications
- Telecommunication
- CATV Networks
- Data Communication Networks
- Active device termination
- Instrumentation
- Local Area Network
