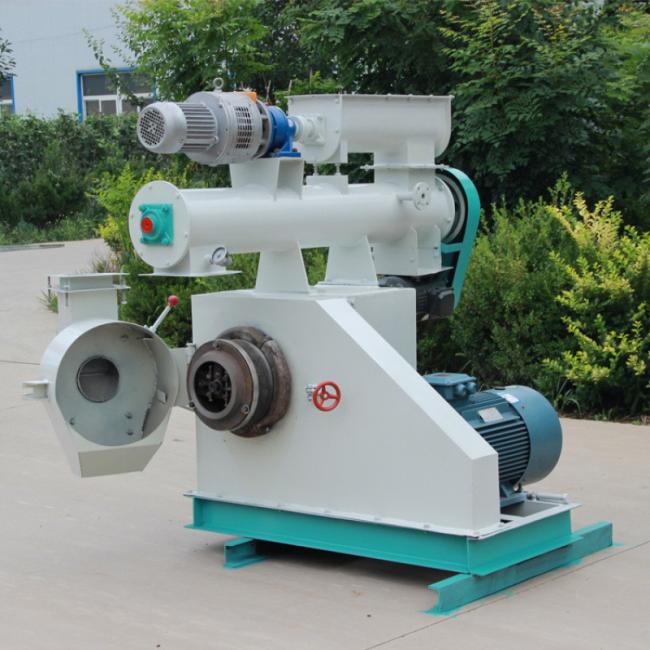

1.0-3.5mm Cattle Feed Pellet Mill Machine Pellet Making Machine For Poultry Feed
Animal Feed Pellet Mill Machine Feed Pellet Making Machine for Poultry
Product description of feed pellet mill machine
Parameter of feed pellet mill machine
| Model No. | Main motor power | Capacity (t/h) | Ring die inner diameter (mm) | Feeder power (kw) | Conditioner motor power (kw) | Size (mm) | Weight (kg) |
| SZLH250 | 22kw | 0.6-1 | 250 | 0.75 | 1.1 | 1750×650×1750 | 800 |
| SZLH320 | 37kw | 1-3 | 320 | 0.75 | 2.2 | 1900×1800×1650 | 2000 |
| SZLH350 | 55kw | 3-5 | 350 | 0.75 | 2.2 | 2100×2000×1850 | 2400 |
| SZLH420 | 110kw | 8-10 | 400 | 1.5 | 4 | 2200×2000×2150 | 2900 |
| SZLH508 | 132/160kw | 10-18 | 450 | 1.5 | 4 | 2300×2350×2150 | 3500 |
Features of feed pellet mill machine:
1. This equipment widely applied product with mature technology .
2. The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3. Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5. Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6. International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7. Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
a. For pig, the pellet diameter is usually 3.5-6.5mm.
b. For cattle, the pellet diameter is usually 4.5-8mm.
c. For chicken, pellet diameter is usually 3.2mm.
d. For fish, pellet diameter is usually.0.9-3.0mm.
e. For shrimps, pellet diameter is usually 1.0-3.5mm.
Pellet length is customized.
