110kw Animal Feed Extruder Machine For Making Poultry Feed
China pellet animal feed extruder machine manufacturer
Introduce:
Animal Feed Extruder Machine for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock and poultry feed. You can make 2-8 mm diameter animal feed pellets. Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets.
Parameter of animal feed extruder
| Model | SZLH250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
| Power(KW) | 22 | 37 | 55 | 110 | 160 |
| Capacity(T/H) | 1 | 2-4 | 5-7 | 8-10 | 15-20 |
| Inner dia(mm) | 250 | 320 | 350 | 420 | 508 |
| Pellet size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
How to Work:

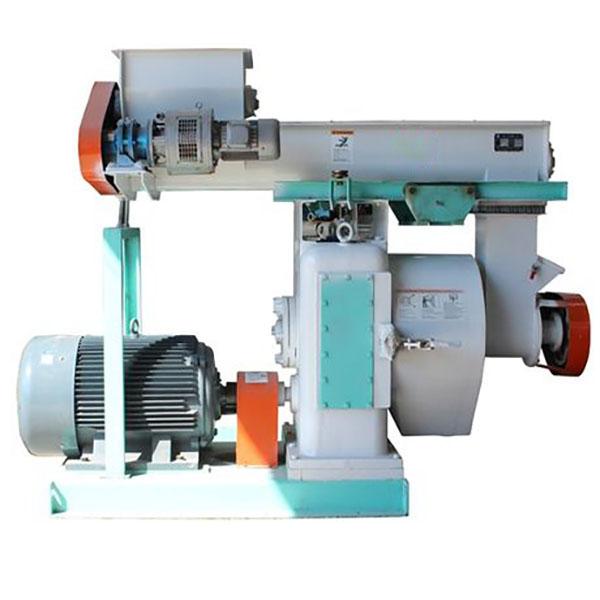

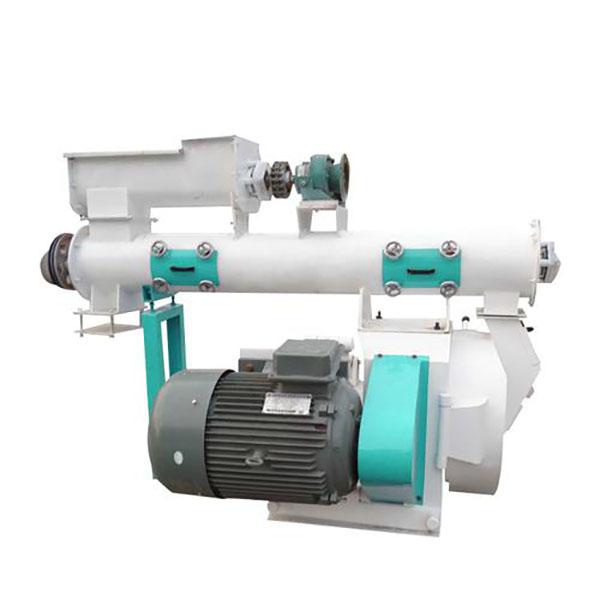

SZLH Feed Pellet Machine Euipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets.
It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials .
Product Feature:
1. Double motor drive system with the ideal transmission ratio, large driving torque, smooth transmission.
2. The VVVF (electromagnetic speed) feeding, is equipped with overload protection device, a magnetic plate iron removing device.
3. The high yield, low noise, convenient operation and maintenance.
4. The main parts of the bearings and the standard parts are imported.
5. With 2-14mm, a variety of ring die size and thickness, the user can choose according to different needs.
Advantages:
1. Wide applicable scope: It can process different materials such as corn, maize, grass, grains, molasses, and some other raw materials.
2. Highly efficient one step gear transmission drive ensures maximum utilization ratio of energy.
3. Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control.
4. Stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency.
5. High precision driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.
6. Capacity: We can customize the different capacities from 1 ton per hour to 50 ton per hour or even more.
7. After-sale guarantee: One year warranty and all round after sale service
8. Gearbox: with pinion shaft, main gear, main shaft, quill shaft, gearbox body, manual lubrication system and overload protection system.
9. Coupling assembly: with hub-taper lock bores, bushing-taper locks, S-shaped grid cover etc.
10. One set of roller assembly---two roller system.
11. Ring die special design for low bulk density pelleting
12. Door made with one knife assembly.
13. Feed chute: External discharging can be carried out by pulling out the external discharging lever arm of feed chute to prevent feed from entering the pellet chamber for the convenience of trial run and breakdown removal
