Home Poultry Feed Production Line Goose Duck Chicken Pellet Machine
Farm Use Poultry Feed Production Line Goose Duck Chicken Pellet Machine
We provide both single equipment and complete feed making line, and accessories are also available. We can offer customized solutions for machine size ,feeder , screen , aspiration system , underneath hopper etc.

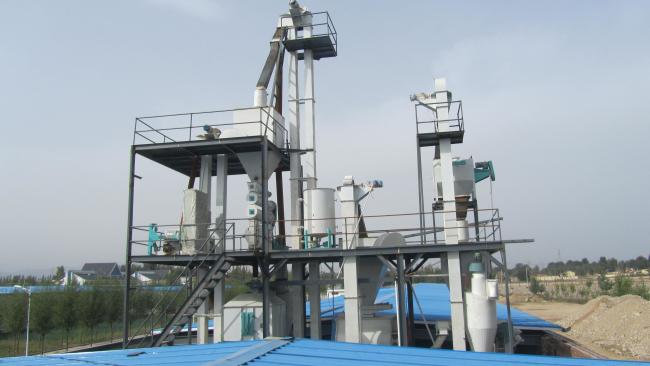

The poultry feed pellet production line is used to press raw materials into pellets.The raw mateirals can be corn,wheat,grain,wheat,etc.The processing is included crusher-mixer-conveyor-pellet machine-cooler.This small animal feed pellet production line is widely used in large,medium and small scale aquaculture,livestock farms and grain feed processing plants.The small simple animal feed pellet production line has a simple and light structure, and the production capacity is 500-2000kg, which is convenient for assemble and maintenance and very practical for small feed factory, farm and home use
Capacity and models:
| Model No. | Main Power (kw) |
Feeder Power (kw) |
Adjusor power (kw) |
Capacity (Ton/hr) |
| SZLH250 | 22 | 1.5 | 2.2 | 0.6-1.0 |
| SZLH304 | 30/37 | 1.5 | 2.2 | 1-3 |
| SZLH320 | 37 | 1.5 | 2.2 | 2-4 |
| SZLH350 | 55 | 1.5 | 3 | 3-5 |
| SZLH400 | 75 | 2.2 | 3 | 8-10 |
| SZLH420 | 90 | 2.2 | 3 | 10-18 |

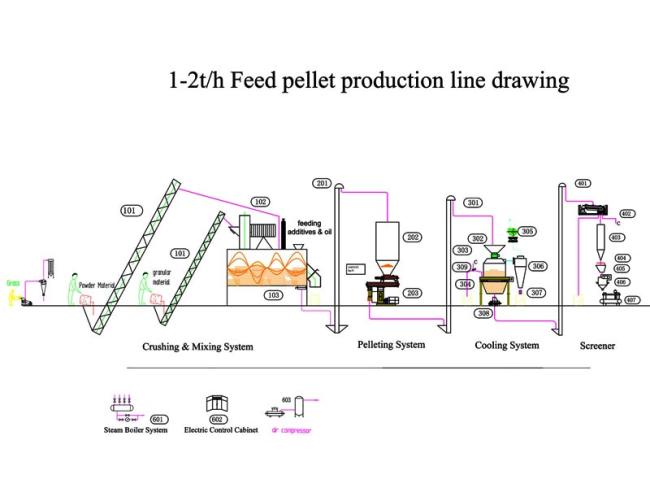

Machines of the Procedure:
1. Hammer mill & Cyclone 2. Screw conveyor 3. Mixing machine 4. Pellet machine 5.Cooling & screening machine
| MACHINE | No. | Product | type | Power(KW) |
| Raw materials receiving and crushing and mixing system | 101 | Screw Conveyor | TSLL16 | 2.2 |
| 102 | Hammer Crusher | SFPZ56*20 | 15 | |
| 103 | Mixer | SHW1.0 | 7.5 | |
|
Pelleting system |
201 | Bucket Elevator | TDTG36/18 | 2.2 |
| 204 | Pellet Machine(include control box) | SZLH250 | 11*2+2.2+0.75 | |
|
Cooling system |
303 | Airlock | GFY250 | 0.75 |
| 304 | Counter Flow Cooler | SKLN11 | 0.75 | |
| 305 | Air Blower | 4-72-4A | 5.50 | |
| 308 | Pellet crusher | SSLG15*80 | 5.5 | |
| 309 | Manual Three-way | SD20*20 | ||
| Auxiliary System | 402 | Rotary Screener | SFJH80*2d | 1.5 |
| Auxiliary System | 601 | Boiler |
After-sales Service:
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments;
5. Training the first-line operators on site;
6. Regularly visit clients to solve production problems Providing life-long maintenance service
7. Providing technical exchanging.
Our Advantage:
- 20 year machinery production experience
- Full technical support
- Aftersale installation service
- Quality insurance and competitive price
