Encoder Worm Small DC Gear Motors JGY370 DC 12v Self Locking 150rpm

Worm Gear Motor Encoder Geared Motor DC 12V24V JGY370 Self-locking Strong Low Speed

low speed high torque 90 degree right angle worm gear DC geared motor

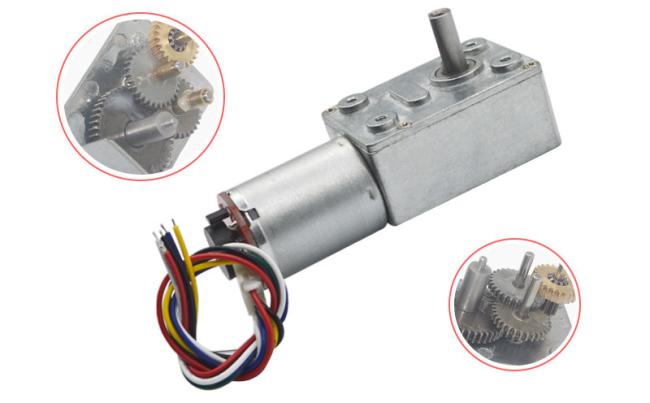

Worm gearbox Micro Dc Gear Motor Description:

Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:

Datasheet:

Rated DC 6V660 testing parameter datasheet
Reduction ratio	40	65	90	150	200	260	340	600	1000
No Load Current(ma)	≤100	≤100	≤100	≤100	≤100	≤100	≤100	≤100	≤100
No Load speed (rpm)	150	90	66	40	30	23	18	10	6
Rated torque(kg.cm)	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated speed (rpm)	120	70	51	30	22	18	15	7.5	4
Rated Current(A)	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Stall Torque (kg.cm)	0.9	1.6	2	7.5	10	13	18	30	45
Stall Current(A)	3.3	3.3	3.3	3.3	3.3	3.3	3.3	3.3	3.3

Rated DC 12V1260 testing parameter datasheet
Reduction ratio	40	65	90	150	200	260	340	600	1000
No Load Current(ma)	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60
No Load speed (rpm)	150	90	66	40	30	23	18	10	6
Rated torque(kg.cm)	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated speed (rpm)	120	70	51	30	22	18	15	7.5	4
Rated Current(A)	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Stall Torque (kg.cm)	0.9	1.6	2	7.5	10	13	18	30	45
Stall Current(A)	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7

Rated DC 24V2460 testing parameter datasheet
Reduction ratio	40	65	90	150	200	260	340	600	1000
No Load Current(ma)	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40
No Load speed (rpm)	150	90	66	40	30	23	18	10	6
Rated torque(kg.cm)	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated speed (rpm)	120	70	51	30	22	18	15	7.5	4
Rated Current(A)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
Stall Torque (kg.cm)	0.9	1.6	2	7.5	10	13	18	30	45
Stall Current(A)	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85

Specification:

Note:Different parameters' motors have their different looks. The lower speed and higher voltage are, the larger the torque is. Please read the parameters table before buying. Thanks!!!
Voltage: DC6V, DC12V, DC24V
No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 90rpm, 150rpm
Wirings:

Notice:
The yellow and green wires are the speed signal output line, and they can't be connected any power supply, or it will be burnt.
Positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V.
Control CW or CCW of motor by changing the positive and negative power supply of encoder (change Red Wire and White Wire connect)
Red Wire - positive power supply of motor(+)
White Wire - negative power supply of motor(-)
Black Wire - negative power supply of encoder(-) (positive and negative power supply of encoder do not allow connect wrong;voltage is3.3-5V)
Blue Wire - positive power supply of encoder(+) (positive and negative power supply of encoder do not allow connect wrong;voltage is 3.3-5V)
Yellow Wire - signal feedback (11 signals per motor turns a circle)
Error: ±10%
Output Shaft Diameter: 6mm D-type
Output Shaft Length: 14mm

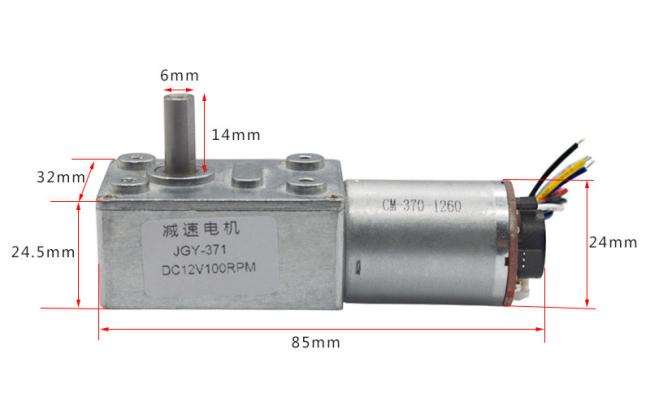

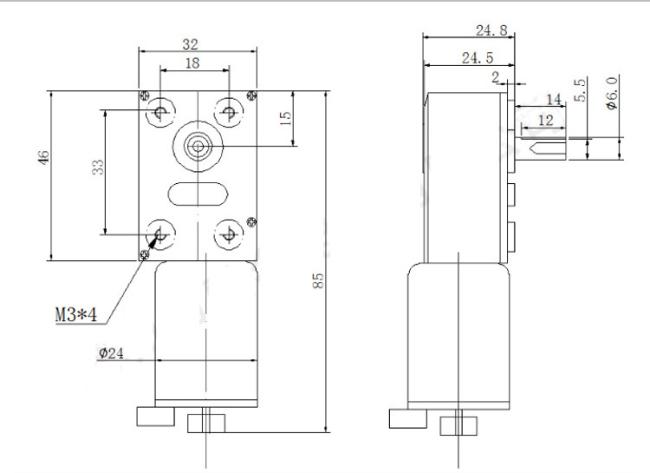

Gearbox Size:46*32*25mm
Gearbox Size Detal, please see the table
