Womala Air Suspension Solenoid Valve LR070245 for Land Rover Range Rover Sport

Product Overview

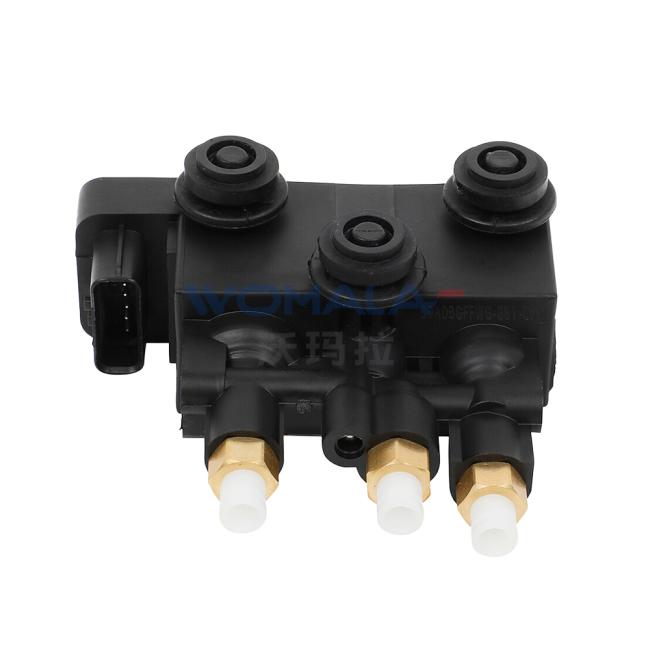

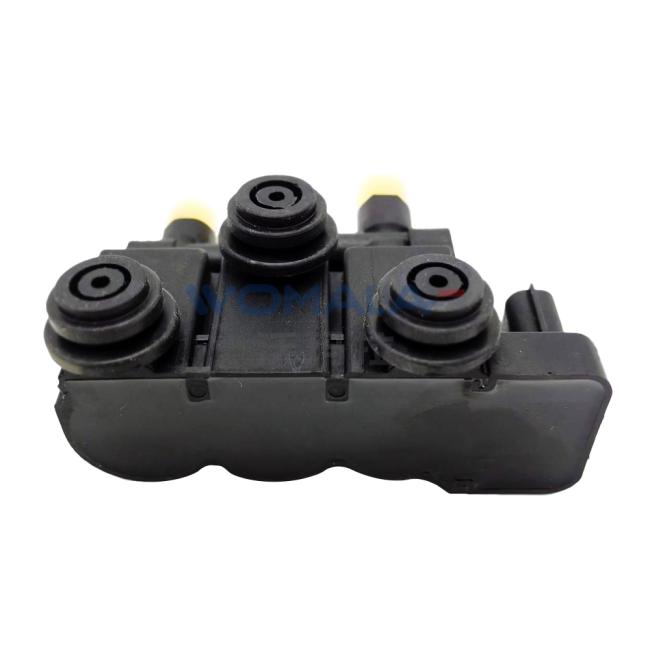

The Front Air Suspension Valve Block LR070245 (current replacement LR176325) is a Genuine OE-grade pneumatic control component engineered for the air suspension system on select for Land Rover vehicles. This front valve block distributes compressed air from the suspension compressor to the front air springs or air struts at each corner, maintaining correct ride height and suspension stiffness under varying load and driving conditions. The unit is computer-controlled and is a direct replacement for the factory valve block.

LR176325 is the current replacement part, superseding LR070245 and LR037081.

⚠️ Important: This is the front valve block. The rear valve block is a separate part number (LR070246 / LR176326). Confirm the position before ordering.

Key Features

• Precise air distribution – routes compressed air to each front corner of the air suspension system

• OE-grade quality – available as Genuine Land Rover, Arnott (VB-3622), URO Parts, and quality aftermarket alternatives

• Direct-fit replacement – matches factory mounting points and electrical connections

• Computer-controlled operation – integrates with the vehicle's suspension ECU for automatic ride height adjustment

• Sold individually – one valve block required per front axle

OE Cross-Reference

???? Supersession Note: LR176325 is the current replacement part. LR037081 was an earlier reference, and T4K14385/T4K19950 are Jaguar-branded equivalents for the same valve block.

Technical Specifications

Vehicle Fitment

Engine compatibility (verify with VIN): 2.0L L4 Gas / Diesel · 3.0L V6 / I6 Gas / Diesel (MHEV) · 5.0L V8 Gas · 2.0L PHEV

⚠️ Important: VIN cut-offs apply for Discovery 5 (to VIN P2125418) and New Defender (to VIN P2468304). For Range Rover and Range Rover Sport, separate configurations exist for 2013, 2014–17, and 2018–19 model years. Confirm your VIN before ordering.

Signs of Failure

• Uneven ride height – one or more front corners sit lower than others

• Suspension fault warning – dashboard alert illuminated

• Compressor running excessively – system constantly trying to maintain pressure

• Air leaks – audible hissing or loss of pressure in the front air suspension

• Vehicle sagging – front end drops, especially after being parked

???? A failing valve block can cause the air suspension compressor to overwork and eventually fail. Replacing the valve block promptly prevents secondary compressor damage. Common failure cause is dried-out O-rings or failed electrical solenoid components.

Critical – Verify Your VIN Before Ordering

Valve blocks are position-specific (front vs. rear) and VIN-sensitive. This is the FRONT valve block — the rear counterpart is LR070246 / LR176326. Provide your VIN – our team confirms exact compatibility before dispatch. We cannot accept returns for misordered parts without VIN verification.

???? Installation Tip: Professional installation recommended. After replacement, the suspension system may require calibration using diagnostic equipment. Inspect all air lines and O-rings for wear or damage during replacement.

Why Choose Us

Contact us for bulk orders or VIN‑checked quotes.

Specifications subject to change; images for reference only.Aftermarket replacement – not affiliated with Jaguar Land Rover.
