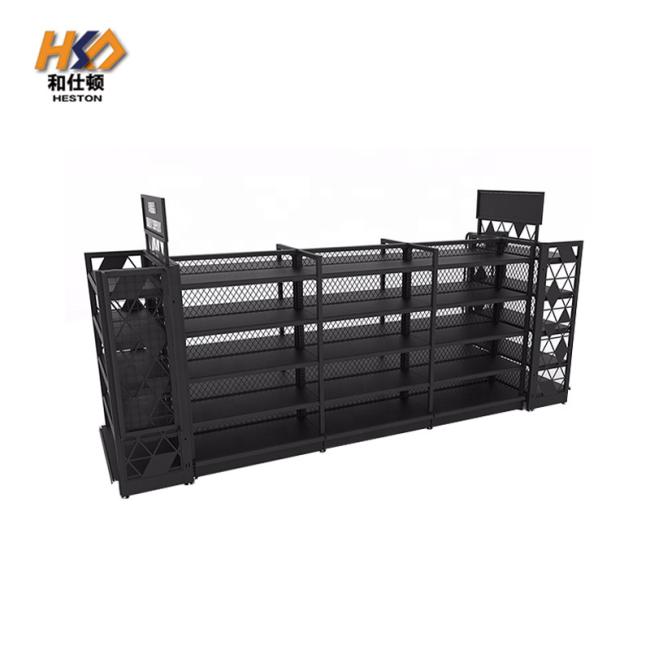

Four-Post Back Wire Mesh Supermarket Shelf Gondola Rack Display Stand
Four-Post Back Wire Mesh Supermarket Shelf Gondola Rack Display Stand
Four-post back wire mesh supermarket shelf gondola rack display stand is the main part of supermarket,store,shop,retail for displaying goods.
This type is very popular for fair price Finest, import shops, grocery shops, comestic shops and so on.
Four-post design can give you a stronger capacity and fashion sense.
Material specification: The upright is 30*30*1.2mm or 30*30*1.5mm, shelf plate: 0.6mm, back wire mesh: 50*50*4.0 mm. or 50*50*3.0mm
Characteristic: Medium duty, modern, fashion, high quality.
Our company's Advantage:
1. We are a experienced manufacturer, factory since 2005. Exported to more than 15 countrys.
2. Professional technical team for customing service.
3. We have our own professional sales team to solve your problems.
4. 24 hours online working.You can contact us at any time.
5. Quality guarantee.
| Specification: | |||
| 1.Upright:30*30*1.2-2.0mm | 2.Thickness of shelf:0.5-1.5mm | ||
|
3.Wire mesh:30*80 or 50*50, Wire thickness:3.0,4.0,5.0mm |
4. Surface treatment: Powder coated | ||
| 5. Layer board can be adjusted freely,Base foot assemble with the upright | 6. Bearing capacity:50-150kg/layer | ||
| Size: | |||
| (Length x Width(Depth) x Height) mm | |||
| Some Regular Standard size | Single side(mm) | Double side(mm) | End side(mm) |
| 900*400*2100 | 900*800*1650 | 800*400*1650 | |
| 900*450*2100 | 900*900*1800 | 900*450*1800 | |
| 1000*450*2250 | 1000*900*1800 | 900*450*1800 | |
| 1000*500*2250 | 1000*1000*1800 | 1000*500*1800 | |
| 1200*500*2400 | 1200*1000*1950 | 1000*500*1950 | |
| 1200*600*2400 | 1200*1200*1950 | 1200*600*1950 | |
| Length(mm) | 510 to 1300mm can be customzied | ||
| Width(Depth)(mm) | 250 to 650 mm can be customzied | ||
| Height(mm) | 1050-2850mm can be customzied | ||
| Loading capacity | 50-150kg/layer( it is deceided by the thickness of material) | ||
| Layers and colors according to your request (Standard is 5 layers, white, black, grey color) |
|||
FAQ:
1. Q:Are you manufacture or trading company?
A:We are manufacture. Our factory has been specializing in supermarket
shelves, warehouse racks and different,kinds of display stands since 2005.
2. Q:Where is your factory? Can I visit ?
A:Our factory is located in ChangShu, JiangSu.
You are warmly welcome to visit whenever you are available.
3. Q:What is your quality?
A:Our products are sturdy and durable, with strong load-bearing capacity,
corrosion resistance and durability.
4. Q:Are samples available?
A:Yes, samples are available at any time.
We charge some sample cost and will return it during the next order.
5. Q:Could you produce according to customers' design?
A:Sure, we have very rich experience in customizing shelves.
6. Q:Do you produce shelf with different kinds of materials?
A:Yes,our products are mainly made of metal but we also produce accessory
shelves or displays with wood,titanium alloy,acrylic,glass,etc.wall recessed
jewelry cabinet.
7. Q:How can i install the shelf and rack?
A:It's easy to install the shelf,because our shelf design without any screw and nuts.
There are also install video and picture for u. If need,we can also ask engineers
to teach you.
8. Q:What is the manner of packing?
A:Generally, shelves are flat packed by air bubble film/ film in standard export
cartons.
Other packing like wooden box are available to clients' requirement.
