Black HDPE Water Supply Drain Pipes PE100 Plastic 100 Meters

Price Negotiable
Price: 0.5$/m(1~10m);0.43$/m(>1000m)
MOQ: 10 Meter/Meters
Delivery Time: Negotiable
Brand: HAIYANG
Product Description

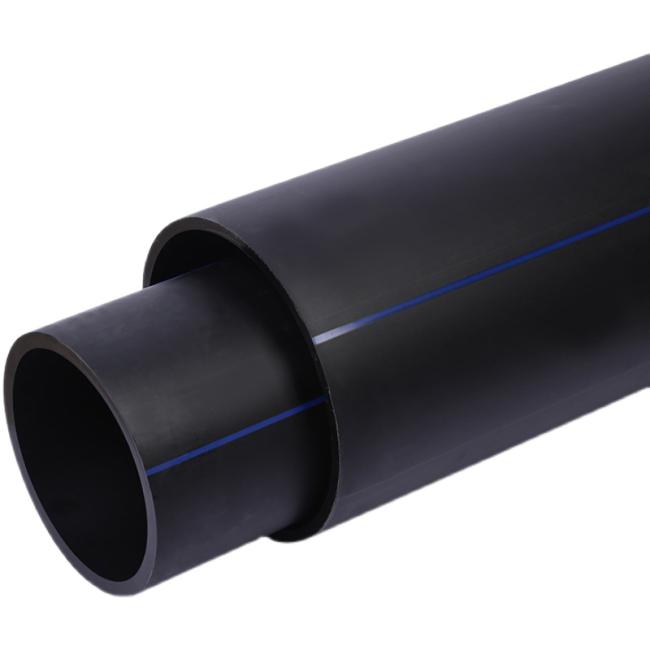

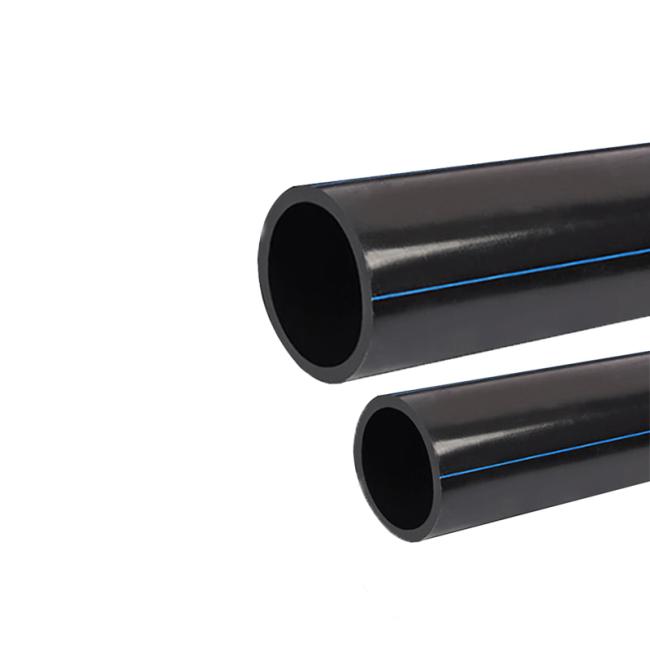

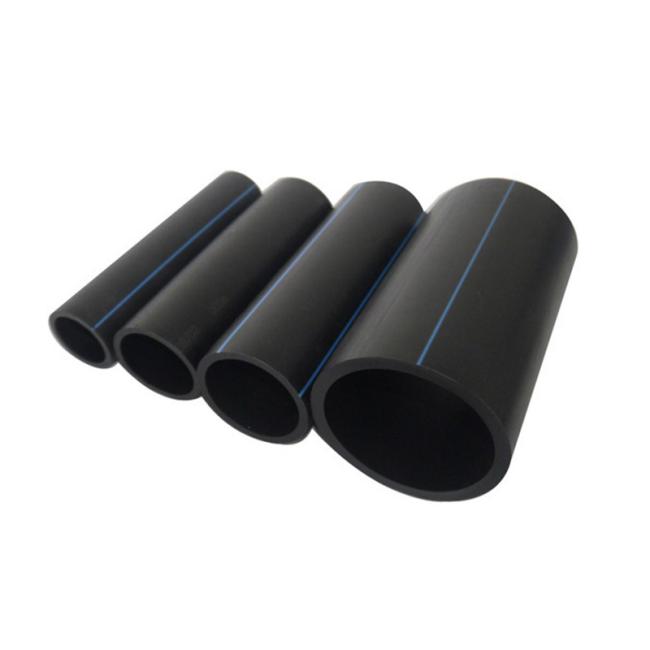

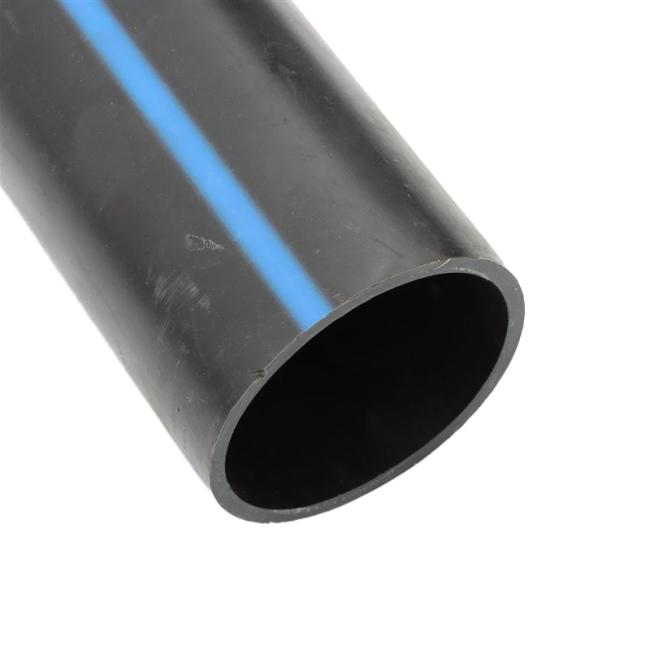

Black HDPE Water Supply Pipe PE100 Plastic Water Pipe Drain Pipes

----------------------------------------



Basic Info.



PE pipes for water supply are the replacement products of traditional steel pipes and PVC drinking water pipes.The water supply pipe must bear a certain pressure, usually a PE resin with a large molecular weight and good mechanical properties, such as HDPE resin, should be used. LDPE resin has low tensile strength, differential pressure resistance, poor rigidity, poor dimensional stability during molding and difficult connection, and is not suitable as a material for water supply pressure pipes. However, due to its high hygienic index, LDPE, especially LLDPE resin, has become a common material for the production of drinking water pipes. LDPE and LLDPE resins have low melt viscosity, good fluidity, and easy processing, so their melt index can be selected in a wide range, usually MI is between 0.3-3g/10min.



Size   PN2.0MPa PN1.6MPa PN1.25MPa PN1.0MPa PN0.8MPa PN0.6MPa
    SDR 9 SDR 11 SDR 13.6 SDR 17 SDR 21 SDR 26
OD(inch) OD(mm) thickness thickness thickness thickness thickness thickness
1/2 20 2.3 2.3
3/4 25 3 2.3 2.3
1 32 3.6 3 2.4
1 1/4 40 4.5 3.7 3 2.4
1 1/2 50 5.6 4.6 3.7 3
2 63 7.1 5.8 4.7 3.8
2.5 75 8.4 6.8 5.6 4.5
3 90 10.1 8.2 6.7 5.4 4.3
4 110 12.3 10 8.1 6.6 5.3 4.2
5 125 14 11.4 9.2 7.4 6 4.8
5 140 15.7 12.7 10.3 8.3 6.7 5.4
6 160 17.9 14.6 11.8 9.5 7.7 6.2
7 180 20.1 16.4 13.3 10.7 8.6 6.9
8 200 22.4 18.2 14.7 11.9 9.6 7.7
8 225 25.2 20.5 16.6 13.4 10.8 8.6
10 250 27.9 22.7 18.4 14.8 11.9 9.6
11 280 31.3 25.4 20.6 16.6 13.4 10.7
12 315 35.2 28.6 23.2 18.7 15 12.1
14 355 39.7 32.2 26.1 21.1 16.9 13.6
16 400 44.7 36.3 29.4 23.7 19.1 15.3
18 450 50.3 40.9 33.1 26.7 21.5 17.2
20 500 55.8 45.4 36.8 29.7 23.9 19.1
22 560 62.5 50.8 41.2 33.2 26.7 21.4
24 630 70.3 57.2 46.3 37.4 30 24.1
28 710 79.3 64.5 52.2 42.1 33.9 27.2
32 800 89.3 72.6 58.8 47.4 38.1 30.6
36 900   81.8 66.2 53.3 42.9 34.4
40 1000   90.2 72.5 59.3 47.7 38.2
48 1200     88.2 67.9 57.2 45.9
55 1400     102.9 82.4 66.7 53.5
60 1500     110.2 88.2 71.4 57.6
65 1600     117.6 94.1 76.2 61.2





Advantage


1. Easy to recycle.
2. Chemical resistance, internal, external and microbial corrosion resistance, strong corrosion resistance, and healthy. It is suitable for conveying acidic and alkaline substances, sewage, natural gas, coal gas and other substances;
3. Good environmental adaptability and frost resistance. Can be used for indoor and outdoor water supply pipelines.
4. Long service life, with a service life of more than almost 50 years;





Details









Application



HDPE drainage pipe is a replacement product of traditional steel pipes and polyvinyl chloride drainage pipes. It is mainly responsible for drainage of rainwater, sewage, irrigation and drainage of farmland, etc. It is widely used in roads, railway subgrades, subway projects, waste landfills, tunnels, etc. , Green belts, sports grounds and slope protection caused by high water content and other drainage fields, as well as underground irrigation and drainage systems for agriculture and horticulture.





Certificate



Company Profile



High Mountain Pipe is A company specializing in the production of PE water supply pipes, PE gas pipes and PE flame-retardant, anti-static mining pipes, PE ground source heat pump pipes, PE siphon drainage pipes, PERT floor heating pipes and supporting PE water supply pipes, PE gas pipes, PE flame retardant, anti- High-tech enterprise of series products such as double-resistance pipe fittings for electrostatic mine, PE ground source heat pump pipe fittings, PE sprayed anticorrosive steel flanges, PE ball valves, PERT floor heating pipe fittings, PE siphon drainage pipe fittings, etc.











FAQ



Q: How and when can I receive my goods after payment?
A: For small batch products, they will be delivered to you by international express (DHL, FedEx, TNT, etc.) or by air. It usually takes 3-5 days to receive the goods after delivery. For high-volume products, it is worthwhile to see the goods and deliver them. It takes several days to several weeks to reach the destination port, depending on the location of the port.



Q: Can I customize the size I need?
A: Yes.



Q: How to buy products?
A: Send an email to us and we will get back to you within one day.
