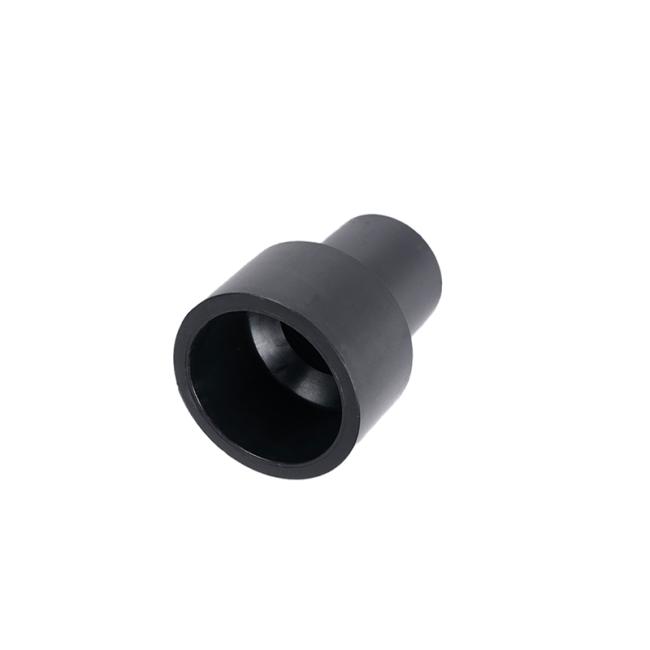

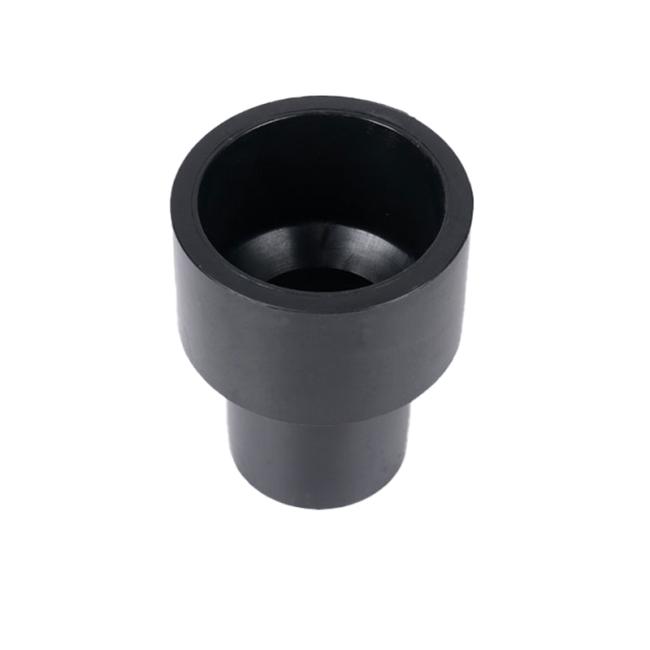

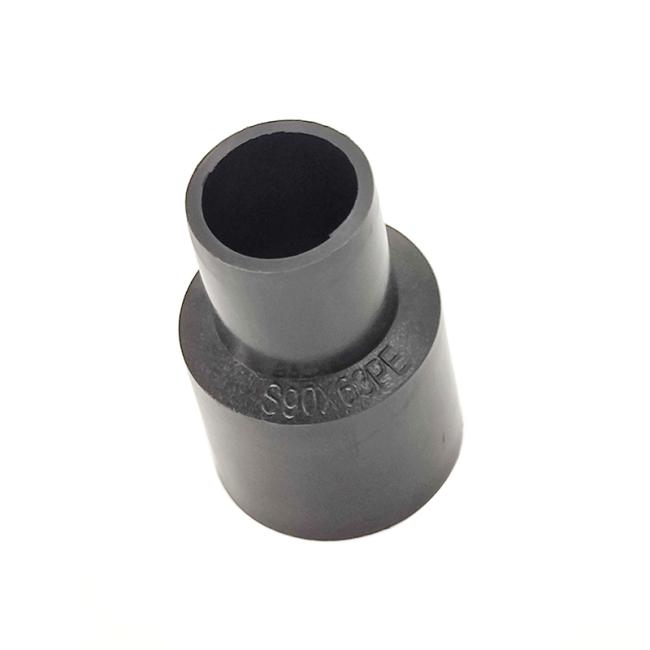

Hdpe Pipe Hot Melt Fittings Reducer Pipeline Fittings Water Pipe Joint
HDPE Pipe Hot Melt Fittings Reducer Pipeline Fittings Water Pipe Joint
----------------------------------------
Basic Info.
Place of Origin:Jiangsu, China
Color: common color is black or white, but it can also be adjusted to other colors according to customer requirements
Material quality: high density polyethylene (HDPE)
Processing technology: pipe outer diameter, wall thickness, pressure, color can be processed according to customer requirements.
| Outer Diameter DN (mm) |
SDR 9 PN20 |
SDR 11 PN16 |
SDR 13.6 PN12.5 |
SDR 17 PN10 |
SDR21 PN8 |
SDR26 PN6 |
| Wall Thick Ness(mm) | ||||||
| 20 | 2.3 | 2.3 | ||||
| 25 | 3 | 2.3 | 2.3 | |||
| 32 | 3.6 | 3 | 2.4 | |||
| 40 | 4.5 | 3.7 | 3 | 2.4 | ||
| 50 | 5.6 | 4.6 | 3.7 | 3 | ||
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | ||
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | ||
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 710 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 | |
| 800 | 72.7 | 58.8 | 47.4 | 38.1 | 30.6 | |
| 900 | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 | |
| 1000 | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 | |
| 1200 | 88.2 | 67.9 | 57.2 | 45.9 | ||
| 1400 | 102.9 | 82.4 | 66.7 | 53.5 | ||
| 1500 | 110.2 | 88.2 | 71.4 | 57.6 | ||
| 1600 | 117.6 | 94.1 | 76.2 |
61.2 |
||
Advantage
1. High corrosion resistance, long service life.
2. Antioxidant is added inside, which has better aging resistance;
3. The opening rate of the pipe surface is over 85%, which has good drainage;
4. The ring stiffness is relatively high. Tested by professional institutions, the ring stiffness can reach more than 1100KPa, which has good kang pressure;
5. Easy to connect.
Details
Application
Municipal engineering water supply system, building indoor water supply system, outdoor buried water supply system and residential area, factory area buried water supply system, old pipeline repair, water treatment engineering pipeline system, industrial water pipes in gardens, irrigation and other fields, etc.
Certificate
Company Profile
High Mountain Pipe has passed ISO 9001, ISO 14001, OHSAS 18001 management system certification and China environmental labeling product certification. The company is applying for CQC (China Quality) certification and CNAS (China National Accreditation Service for Conformity Assessment) national laboratory qualification accreditation. The company adheres to the business philosophy of "integrity, modesty, and a long history"
Long-term stock products: FRPP pipes, HDPE pipes, PP pipes, PPH pipes, PP boards, PE boards, UHMWPE boards and all pipe fittings.Pipes and plates with special quality requirements and colors, large quantities can be customized according to customer requirements and colors.
FAQ
Q: How can you guarantee the goods you offer is qualified?
A: We always believe honesty and responsibility are basis of one company, so whatever products we provide for you all are qualified. We will have goods tested and provide COA before delivery for sure.
Q: Can you make special designs and logos on your products?
A: Yes, it is very easy.
Q: Can I customize the size I need?
A: Yes.
