Tools & Hardware Pipe Fittings

Hdpe Pipe Fittings Large Diameter Pipe Elbow Sylphon Bellows Fittings

Price Negotiable
Price: 0.5$/m(1~10m);0.43$/m(>1000m)
MOQ: 10 Meter/Meters
Delivery Time: Negotiable
Brand: HAIYANG
Product Description

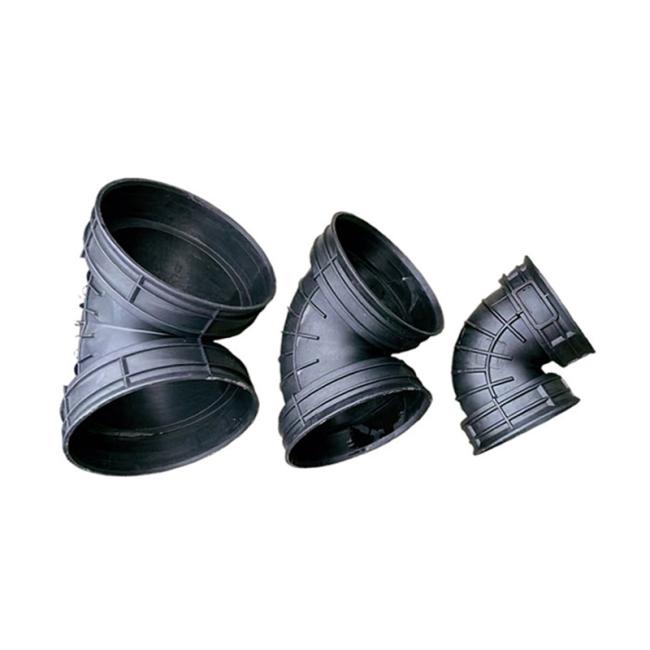

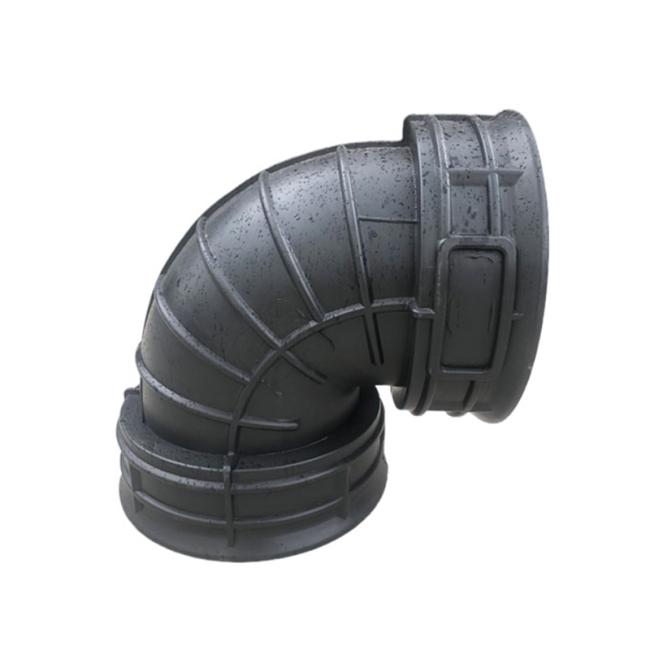

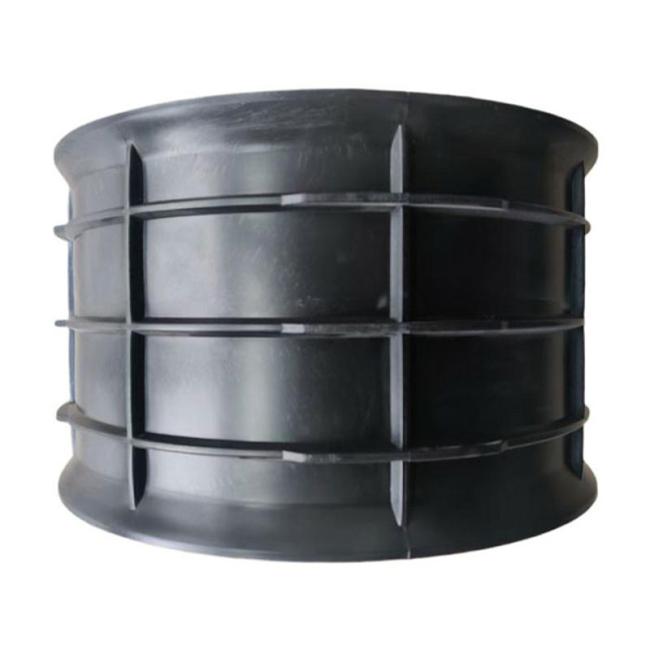

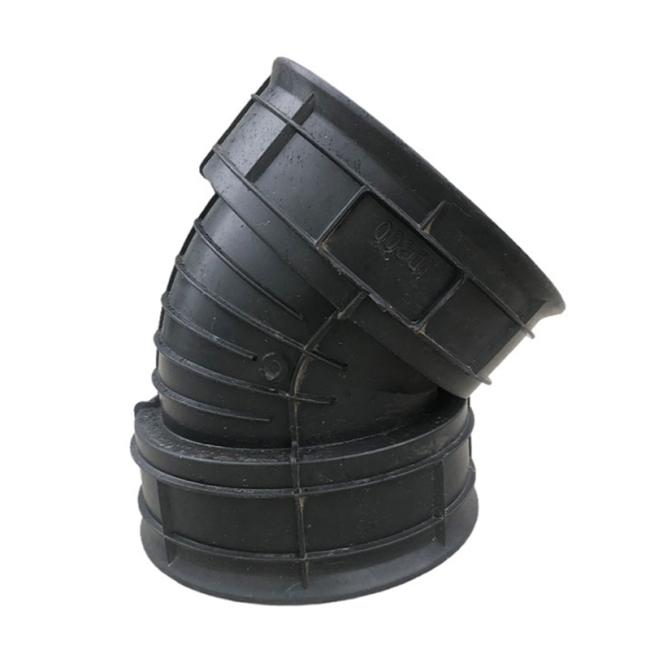

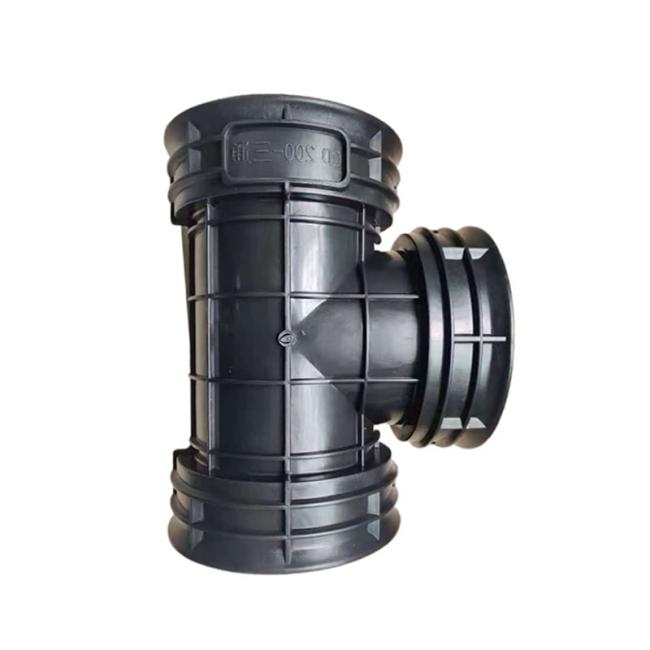

HDPE Pipe Fittings Large Diameter Pipe Elbow Sylphon Bellows Fittings

----------------------------------------



Basic Info.



HDPE drainage pipe is a thermoplastic pipe material, the matrix is ​​mainly high-density polyethylene resin, and it is used for plastic pipes without internal pressure after extrusion molding. The raw material is white powder or granular, non-toxic, tasteless, and has the advantages of corrosion resistance, aging resistance, impact resistance and crack resistance.HDPE has good electrical properties, especiallyhigh dielectric strength, medium to high molecular weight,and excellent impact resistance, both at room temperatureand even at low temperatures.HDPE (high density Polyethylene) pipes are supplied to China's municipal pipe market. Plastic pipes are developing steadily. PE pipes, PP-R pipes, and UPVC pipes all occupy a place.



Outer Diameter
DN (mm)
SDR 9
PN20
SDR 11
PN16
SDR 13.6
PN12.5
SDR 17
PN10
SDR21
PN8
SDR26
PN6
  Wall Thick Ness(mm)
20 2.3 2.3
25 3 2.3 2.3
32 3.6 3 2.4
40 4.5 3.7 3 2.4
50 5.6 4.6 3.7 3
63 7.1 5.8 4.7 3.8
75 8.4 6.8 5.6 4.5
90 10.1 8.2 6.7 5.4 4.3
110 12.3 10 8.1 6.6 5.3 4.2
125 14 11.4 9.2 7.4 6 4.8
140 15.7 12.7 10.3 8.3 6.7 5.4
160 17.9 14.6 11.8 9.5 7.7 6.2
180 20.1 16.4 13.3 10.7 8.6 6.9
200 22.4 18.2 14.7 11.9 9.6 7.7
225 25.2 20.5 16.6 13.4 10.8 8.6
250 27.9 22.7 18.4 14.8 11.9 9.6
280 31.3 25.4 20.6 16.6 13.4 10.7
315 35.2 28.6 23.2 18.7 15 12.1
355 39.7 32.2 26.1 21.1 16.9 13.6
400 44.7 36.3 29.4 23.7 19.1 15.3
450 50.3 40.9 33.1 26.7 21.5 17.2
500 55.8 45.4 36.8 29.7 23.9 19.1
560 62.5 50.8 41.2 33.2 26.7 21.4
630 70.3 57.2 46.3 37.4 30 24.1
710   64.5 52.2 42.1 33.9 27.2
800   72.7 58.8 47.4 38.1 30.6
900   81.8 66.2 53.3 42.9 34.4
1000   90.2 72.5 59.3 47.7 38.2
1200     88.2 67.9 57.2 45.9
1400     102.9 82.4 66.7 53.5
1500     110.2 88.2 71.4 57.6
1600     117.6 94.1 76.2

61.2





Advantage



1. Flexibility: Because PE-RT is relatively soft. Therefore, no special tools are required during construction, so the construction cost is relatively low.
2. Thermal conductivity: pipes used for floor heating need to have good thermal conductivity. PE-RT has better thermal conductivity, and its thermal conductivity is twice that of PP-R and PP-B pipes. It is very suitable for floor heating.
3. High temperature resistance: The high temperature resistance of PE-RT can reach 90°C, while that of PEX can only reach 65°C.
4. Low temperature thermal shock resistance: PE-RT has better low temperature shock resistance. During winter construction, the pipes are not susceptible to impact and rupture, which increases the flexibility of construction arrangements.
5. Environmental protection: PE-RT and PP-R can be recycled and will not pollute the environment. The PEX cannot be recycled will cause secondary pollution;



Details










Application


1.Urban and rural drinking water pipelines.
2.Material and liquid transportation pipelines in chemical, chemical fiber, food, forestry, printing and dyeing, pharmaceutical, light industry, papermaking, metallurgical and other industries.
3. Agricultural irrigation pipes.
4. Protection sleeves for post and telecommunications lines and power wires.
5. Mine mortar conveying pipeline.
6. Protection sleeves for post and telecommunications lines and power wires.
