Industrial For Food Packaging Of Thermoforming Film Coextruded
Industrial Usage For Food Packaging Of Thermofoming Films

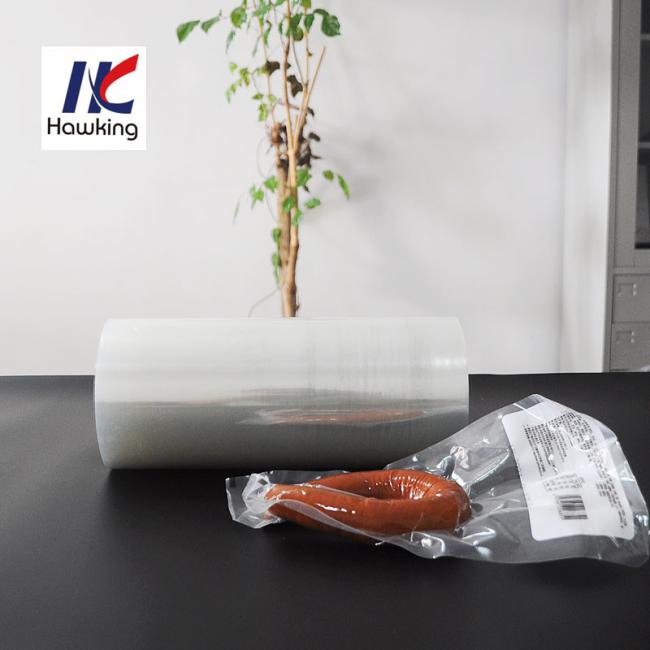

Thermoforming Film
Thermoforming is a method of forming plastic sheets. These sheets are available in a variety of thicknesses(30-350 micron),depending on the product type. Thinner sheets of plastic are referred to as films. Thermoforming films are essential for the creation of many common consumer goods.
Product Information:
| Unit | HKCE9860 | HKCE9880 | HKCE98100 | HKCE98125 | ||
| Thickness | um | 60 | 80 | 100 | 125 | |
| Tensile | MD | Mpa | ≥ 34 | ≥ 36 | ≥ 38 | ≥ 43 |
| Strength | TD | Mpa | ≥ 32 | ≥ 35 | ≥ 37 | ≥ 41 |
| Elongation | MD | % | ≥ 420 | ≥ 460 | ≥ 460 | ≥ 480 |
| TD | % | ≥ 435 | ≥ 470 | ≥ 470 | ≥ 530 | |
| Transparence | % | ≥ 92 | ≥ 92 | ≥ 92 | ≥ 90 | |
| Haze | % | ≤ 14 | ≤ 14 | ≤ 15 | ≤ 18 | |
| Coefficient of Friction | 0.1~0.25 | |||||
| WTR | g/ m2.24h. atm | ≤ 8 | ≤ 6 | ≤ 6 | ≤ 5 | |
| (38° C, 90%RH) | ||||||
| OTR | cc/ m2.24h. atm | ≤ 5 | ≤ 5 | ≤ 3 | ≤ 1 | |
| (23° C0%RH) | ||||||
| Heat Seat Strength | N/15mm | ≥ 27 | ≥ 29 | ≥ 33 | ≥ 38 |
Industrial usage of thermo films
Below are some of the important industrial usages of thermoforming films

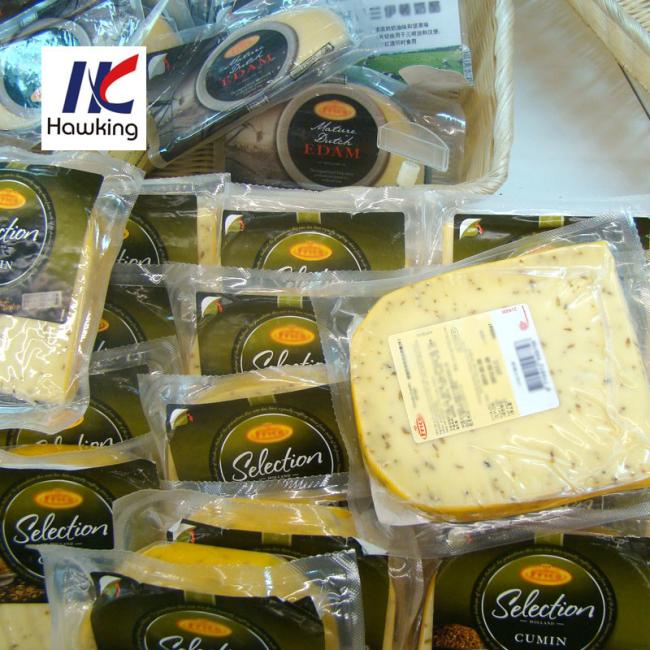

1. Thermoform in food packaging– The puncture resistant and meagre leakage feature finds good place in food packaging industry. In addition, at freezing temperature thermoform films retain strength and hence they are found to be one of the best packaging films for refrigerating food items like red meat, cheese, etc.
2. Thermoforming packaging for Medical industry– its strong mechanical properties and moisture barrier property finds its best usage for packaging sterile medical products such as medicines and medical equipments.
3. Thermoforming for other packaging purpose– Products made with thermoforming concept such as thermoforming films, thermoforming plastic sheets, and thermoformed blisters are found to be very useful in packaging different products such as cosmetics, food items, machines, medicines, etc. In addition, readymade packaging boxes are also available to make the packing very easy.
The Benefits of Thermoforming
There are some advantages traditionally associated with thermoforming
Low cost: Plastic sheets are an affordable raw material and the high-volumes facilitated by the thermoforming process generate additional economies of scale on large production runs.
Versatility: Thermoforming is a flexible process than can be used to make a variety of plastic goods of varying complexity.
Fast turnaround. As a high-volume plastic molding process, thermoforming offers fast lead times for large volumes of plastic products.
Low waste. Excess material can be collected, reground, and formed into plastic sheets for additional thermoforming activities.
Among the many different types of flexible packaging films available, thermoforming films stay one of the best options to obtain moisture free and reliable packing. It is also a cost effective option for packaging.
Storage:
Please store it in clean, well-ventilated and dry environments at a temperature between 5ºC and 35ºC; Keep it away from heat, corrosive chemicals or any other harmful substances.
Material: High-quality resin, strong toughness, not easy to damage.
Feature: No bubble, the thermoforming effect is excellent.
Notice: A variety of models, according to the needs of choice. Tear off the white protective paper before use.
Usage: Highly versatile,suitable for multiple applications,such as frozen food, organic food, soup, pre-cooked meals packaging, etc.
Samples can be provided for testing, but the MOQ for formal orders is 1-2 tons.
