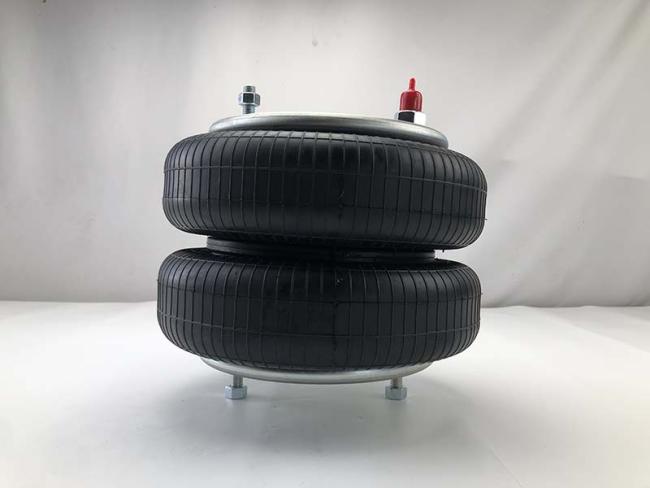

Gas Filled Truck Air Spring Fireston W01-358-7555 For Binkley XB-SPN-053-37

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1/2-13UNC

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC

Screw Center Distance of Bottom Cover Plate : 157 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 157mm

❸ Cover Plate

Top Cover Plate Diameter: 224.5 mm

Bottom Cover Plate Diameter: 224.5 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 343 mm

Maximum Height : 363 mm

Minimum Height :104mm

When should air springs be replaced?

Misalignment (this occurs when the upper and lower parts of the air springs aren't in the up and down position like they're supposed to be.
The girdle loop is loose.
If the air springs compress too far, bottom out abrasion could occur.

About Yiconton

We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

Our Advantage

The rubber is of high quality.
The plate is the steel,coated Zn,high capacity and anti-corrosion.
All air spring types can be used at a working temperature between -40°C and 70°
We also have our strict series quality control.
OEM Manufacturing welcome: Product
Sample order is available.
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
