Air Ride Spring Nature Rubber Industrial Air Spring 1B9-202 578913201

Technical parameters

Cover Plate

Top Cover Plate Diameter:160(mm)

Bottom Cover Plate Diameter:160(mm)

Gas Hole/Air Inlet

Gas Hole/Air Inlet:1/4-18NPTF

Blind Nut

Top Cover Plate Screw(Nut)Tooth:2X3/8-16UNC

Bottom Cover Plate Screw(Nut)Tooth:2X3/8-16UNC

Screw Center Distance Of Top Cover Plate:89(mm)

Screw Center Distance Of Bottom Cover Plate:89(mm)

Rubber Bellow

Rubber Bellows MAX Diameter: 222 (mm)

What do air springs replace?

Air suspension systems essentially replace a vehicle's coil springs with air springs. The air springs are simply tough rubber and plastic bags inflated to a certain pressure and height to mimic the coil springs.

Benefits for the Truck and Trailer

1. Reduces cab, truck body, and trailer damage
2. Reduces need for electrical and other repairs and maintenance
3. Reduces wear and tear on tires, axles, and transmissions
4. Reduces vehicle and fleet downtime
5. Extends life of truck and trailer
6. Protects hinges, lights, rivets, and trailer hardware
7. Provides greater comfort for the driver while decreasing fatigue
8. Bus and Train Air Springs

FAQ

1.IS THE SAMPLE AVAILABLE?
YES,Usually we send the samples by TNT,DHL,FEDEX or UPS,it will take around 3 days for our customers to receive them,but charge all customer will cost related to the samples, such as sample cost and airmail freight.We will refund our customer the sample cost after receiving its order.

2.WHAT IS YOUR WARRANTY TERM?
Our company offer 1% free spare parts to FCL order.There is a 2 years warranty for our export products has run outfrom the date of the shipment.If warranty ,our customer should pay for the replacement parts.

3.CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS ?
YES,OEM is welcomed.

4.I CAN NOT FIND OUT THE ITEMS WHAT I WANT FROM YOUR WEBSITE,CAN YOU OFFER THE PRODUCTS I NEED?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

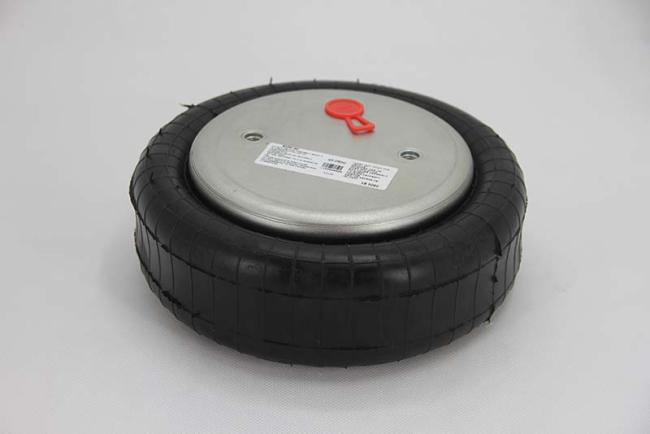

Product picture
