115mm Plate Dia Industrial Air Spring Single Convolute Bellows W01-358-7731
Industrial Single Convolute Air Bellows Spring W01-358-7731
Technical parameters
Cover Plate
Top Cover Plate Diameter:115(mm)
Bottom Cover Plate Diameter:115(mm)
Gas Hole/Air Inlet
Gas Hole/Air Inlet:1/4NPTF
Blind Nut
Top Cover Plate Screw(Nut)Tooth:2X3/8-16UNC
Bottom Cover Plate Screw(Nut)Tooth:2X3/8-16UNC
Screw Center Distance Of Top Cover Plate:44.5(mm)
Screw Center Distance Of Bottom Cover Plate:44.5(mm)
Rubber Bellow
Rubber Bellows MAX Diameter: 165 (mm)
What do air springs replace?
Air suspension systems essentially replace a vehicle's coil springs with air springs. The air springs are simply tough rubber and plastic bags inflated to a certain pressure and height to mimic the coil springs.
Applications
- Industrial actuator
- Vibration isolator
- Press machines
- Conveyors
- Lifts
- Packaging machines
Company History
Our company has been manufacturing air suspensions since 2004. We've learned a lot about what makes a great air suspension and how to make them. Since 2009, We have started cooperating with OEM (Original equipment manufacturer). In 2010, we manufactured air pumps as well as solenoid valve blocks. In 2016, we became an automatically integrated factory.
Now, YICONTON has become the most considerable manufacturer of air suspensions in Asia. Our products have been imported worldwide, mainly in North America.

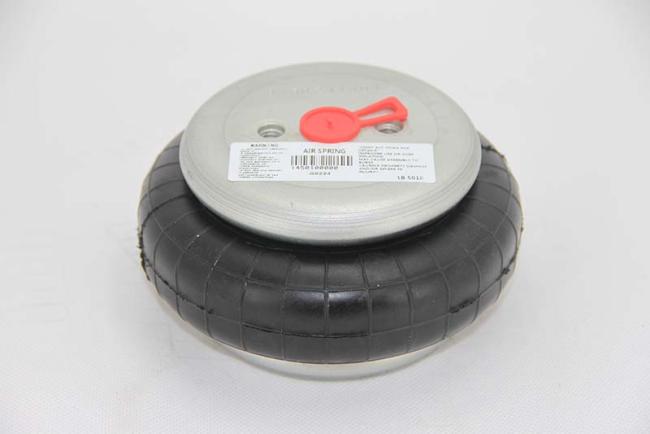

Product picture
