Triple Air Bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547
Triple air bag Suspension Air Spring W01-358-7995 W013587995 Contitech FT330-29547
Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231mm
Gas Hole / Air inlet 1/4NPTF
Rubber Bellows MAX Diameter 330mm
The Working Stroke MAX 460 mm to MIN 130 mm
What is a convoluted air spring?
Convoluted air springs are generally used for lifting axles and preserve the tires when the vehicle is empty. Aside from that, they are also utilized in industrial applications as pneumatic lift cylinders or suspension elements to absorb vibrations. These air springs are easy to mount and they last long.
Yiconton air spring Applications
Various applications in the automotive industry, such as
--- e.g. steering damping, engine vibration damping, belts
--- tension damping for engines and driver's seats in commercial vehicles, etc.
In household products, such as washing machines
Special dampers for bicycles
On commercial lawn tractors
In the medical equipment industry, e.g. on wheelchairs
About Yiconton
We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

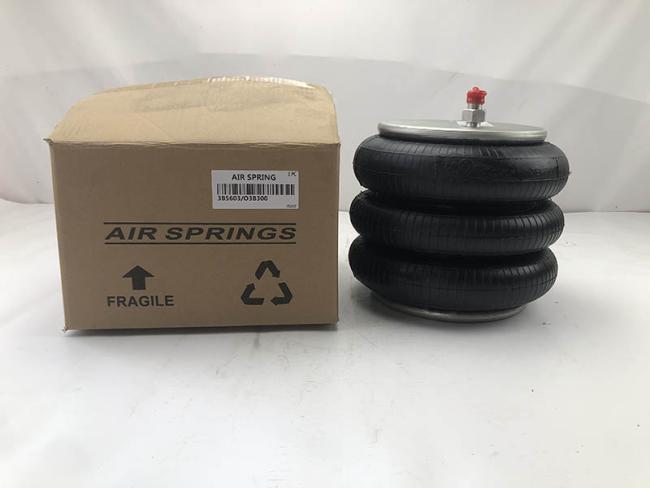

Product picture

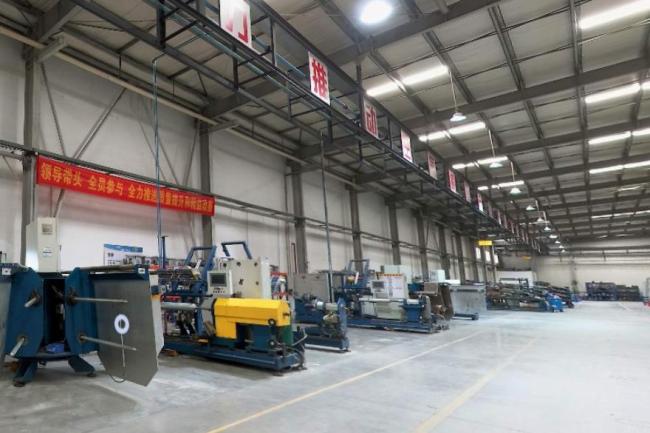

Factory picture
