Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094
Industrial Air Spring single convoluted air bags W01-358-7094 W013587094
Compressed Height: 80mm
Top Cover Plate Diameter: 289mm
Bottom Cover Plate Diameter: 289mm
Distance Gas Hole Between Nut 79 mm
Top Cover Plate Screw (Nut) Tooth :4pcX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 4pcX3/8-16UNC
The Working Stroke : MAX 140 mm to MIN 68 mm
Gas Hole / Air inlet : 3/4NPTF
What is the purpose of an air spring?
An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.
About Yiconton
We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

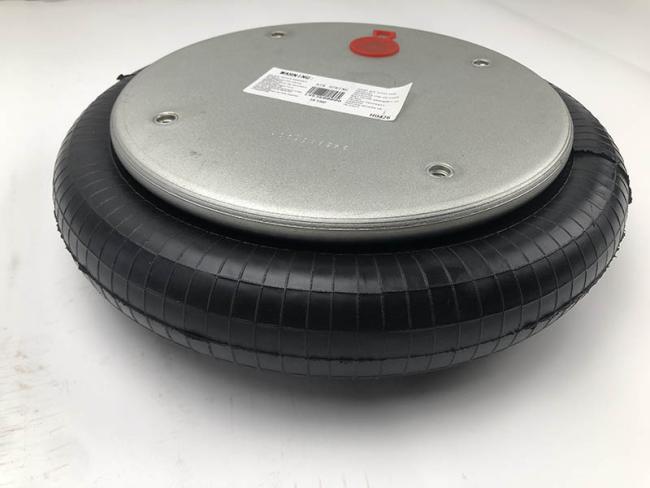

Product picture

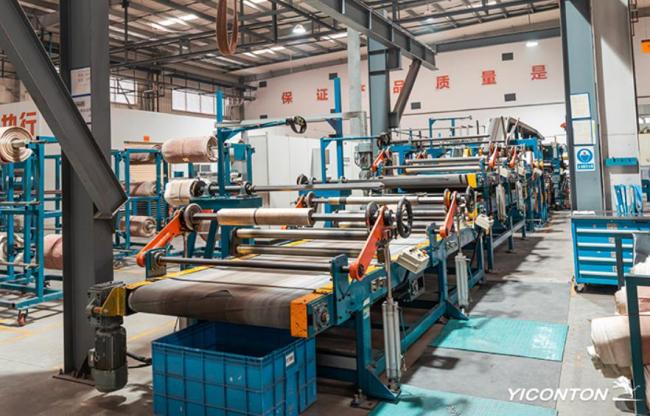

Factory picture
