1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490
Price:
Negotiable in person
MOQ:
50 pieces
Delivery Time:
30
Brand:
YITAO
Product Description
1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490
YITAO 1V 9336 truck air spring is manufactured with reference to the specifications of Firestone W01-358-9336, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.
Cross References
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-358-9336 | W013589336 / :W013589336 |
| Firestone | 1T15M-4 | 1T15M4 / :1T15M4 |
| Goodyear | 1R12-370 | 1R12370 / :1R12370 |
| Goodyear | 566-24-3-076 | 566243076 / :566243076 |
| Contitech | 910-14A490 | 91014A490 / :91014A490 |
| Triangle | 84906362 | :84906362 |
| Watson&Chalin | AS-0053 | AS0053 / :AS0053 |
Technical Specifications
| Specifications | Parameters |
|---|---|
| Natural height | 434mm |
| Maximum height | 414mm |
| Minimum height | To be updated |
| Extended Height | To be updated |
| Compressed Height | 150mm |
| Top Plate Width | 231mm |
| Piston Width | 248mm |
| Outer diameter | φ265 |
| Weight | 6.981 kg |
| Package Dimensions | 27*27*36cm |

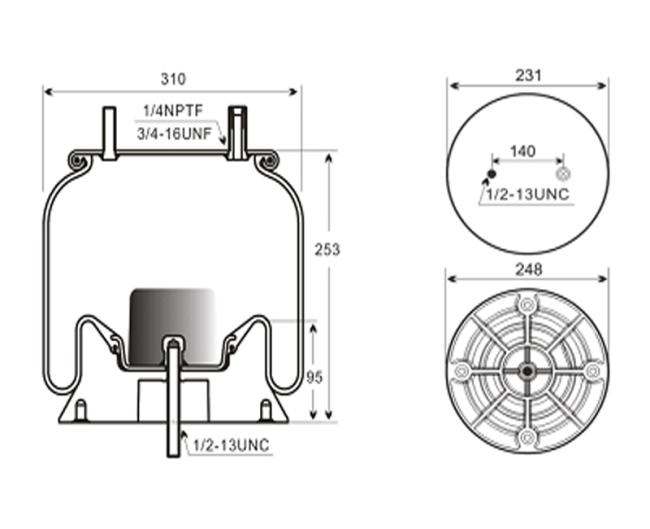

9336 Truck Air Spring Drawing
Delivery Information
| Delivery Time | Orders are typically shipped within 30 business days after payment is received |
|---|---|
| Packing | Brown carton packing; we can also pack according to your requirements |
| Marks | Generally display weight and size. We can also make shipping marks according to your requirements |
| Transportation Method | Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods |
| International Transport | Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us. |

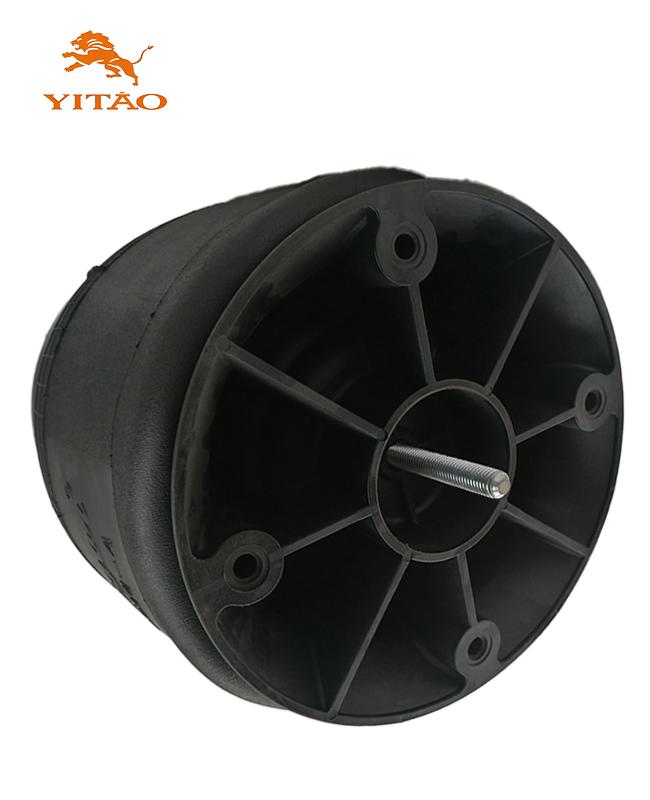

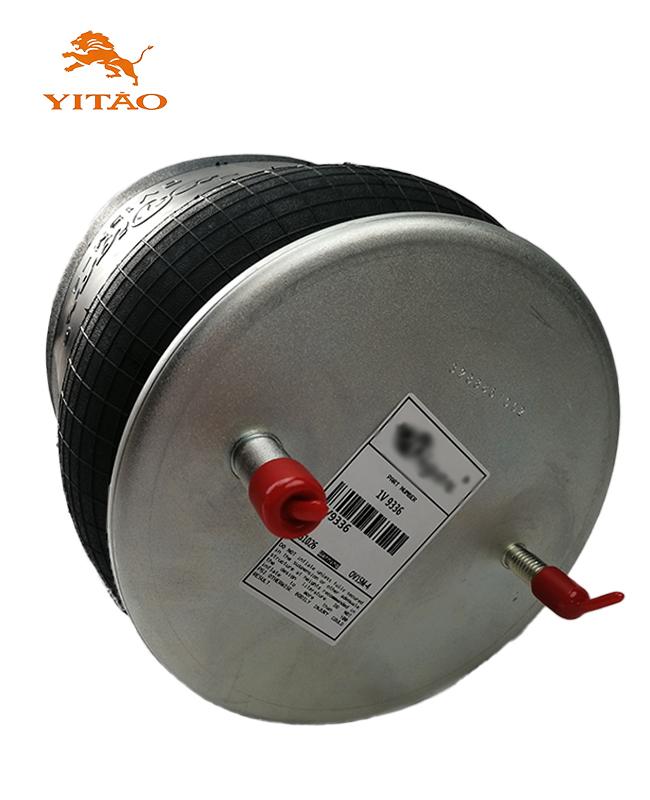

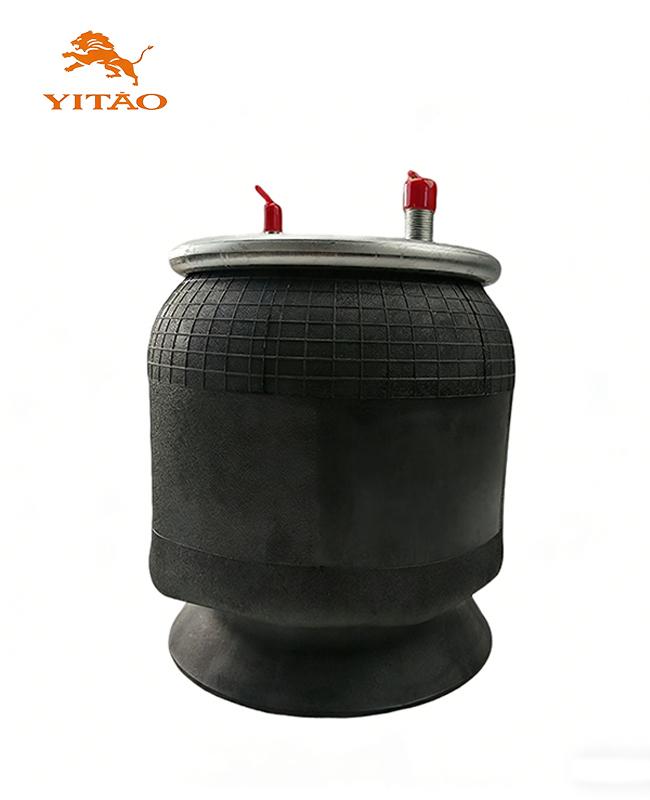

Product Images
Images shown are for reference only. Actual product may vary slightly.
