1V 9367 Truck Air Spring Suitable for Fierstone W01-358-9367/Goodyear 1R12-283/Contitech 4159NP05

Price Negotiable
Price: Negotiable in person
MOQ: 50 pieces
Delivery Time: 30
Brand: YITAO
Product Description
1V 9367 Truck Air Spring
YITAO 1V 9367 truck air spring is manufactured with reference to the specifications of Contitech 4882N1P05, providing a complete replacement for original air springs to ensure a comfortable and stable driving environment for your truck.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9367 W013589367 / :W013589367
Firestone 1T15M-11 1T15M11 / :1T15M11
Contitech 4159NP05 :4159NP05
Goodyear 1R12-283/256 1R12283 / 256 / :1R12283 / :256
Airtech 39367K :39367K
Triangle 8505/6367 8505 / 6367 / :8505 / :6367
Watson&Chalin AS-0104/0137 AS0104 / AS0137 / :AS0104 / :AS0137
Hendrickson 003319 :003319
Technical Specifications
Specifications Parameters
Natural height 695mm
Maximum height 675mm
Minimum height 222mm
Extended Height 750mm
Compressed Height To be updated
Top Plate Width 231mm
Piston Width 260mm
Outer diameter φ255
Weight 8.941 kg
Package Dimensions 28*28*46.5cm

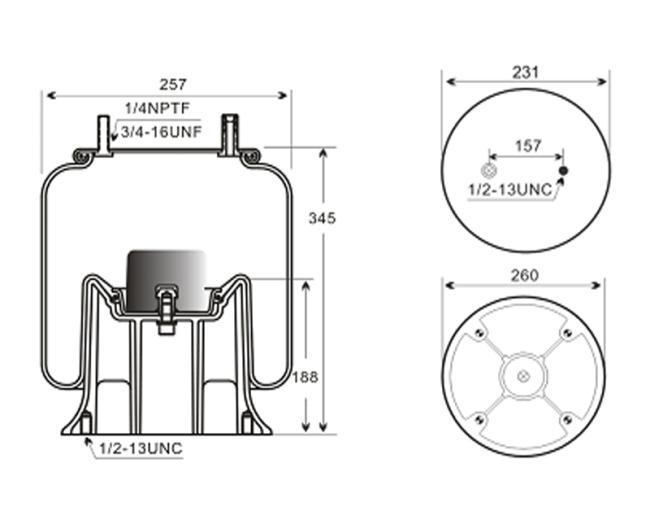

1V 9367 Truck Air Spring Drawing
Technical drawing of 1V 9367 Truck Air Spring showing dimensions and specifications
Delivery Information
Category Details
Delivery Time Orders are typically shipped within 30 business days after payment is received
Packing Brown carton packing; we can also pack according to your requirements
Marks Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Method Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Due to international transportation requirements, we pack according to strict standards to avoid impact damage. If logistics information is stagnant during transit, please wait patiently. Contact us with any questions.
Product Images

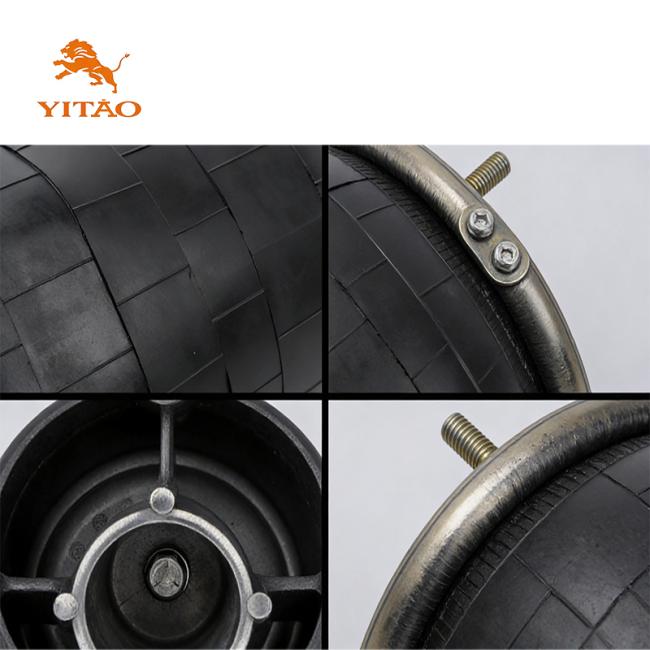

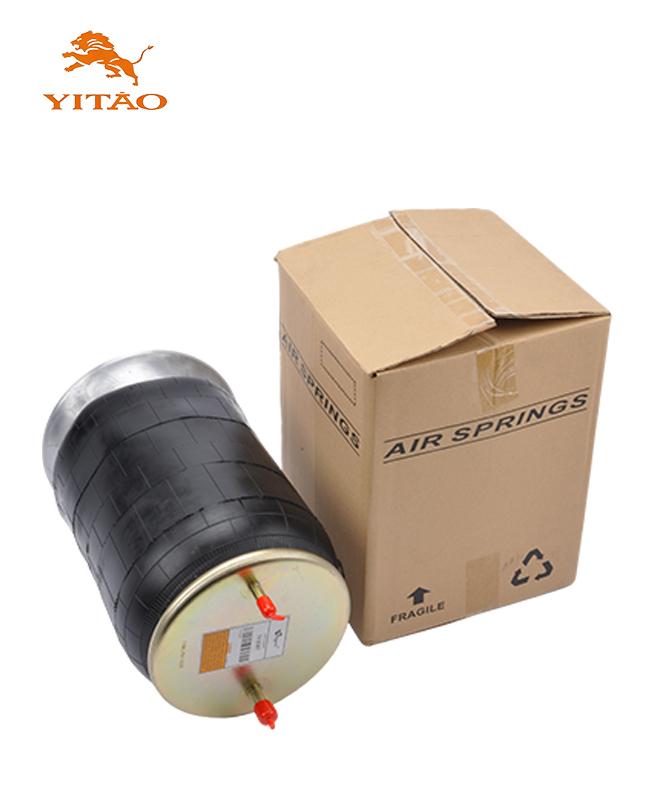

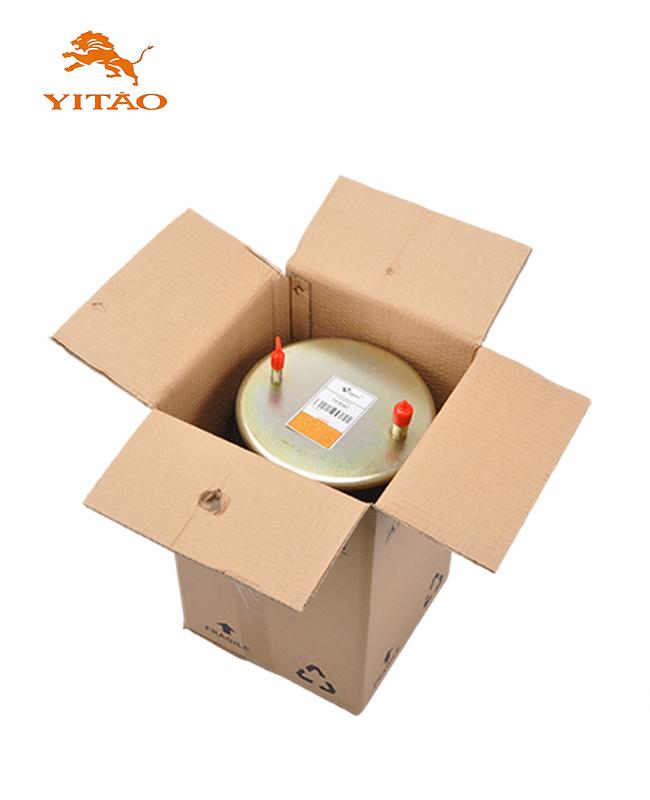

Detailed close-up of air spring components and materials Manufacturing quality inspection of truck air spring Packaged truck air spring ready for shipment
Images shown are for reference only. Actual product may vary slightly.
