1V 6364 Truck Air Spring Suitable for Fierstone W01-M58-6364/Goodyear 1R14-061/Contitech 813MB/Viberti 128147
Price:
Negotiable in person
MOQ:
50 pieces
Delivery Time:
30
Brand:
YITAO
Product Description
1V 6364 Truck Air Spring
YITAO 1V 6364 truck air spring is manufactured with reference to the specifications of Goodyear 1R14-061, providing a complete replacement for original air springs to ensure a comfortable and stable driving environment for your truck.
Cross References
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-6364 | W01 M58 6364 / W01M586364 / W01M58-6364 / W01-M586364 / W01-M58-6364 |
| Contitech | 813MB | 813MB |
| Goodyear | 1R14-061 | 1R14 061 / 1R14061 / 1R14-061 |
| Weweler | US07345 | US07345 |
| E.R.F.Truck | 143908-3 | 143908 3 / 1439083 / 143908-3 |
| SAF | 3.229.0003.00 | 3 229 0003 00 / 3229000300 / 3.229.0003.00 |
| Hendrickson | 505859 | 505859 |
| ROR/Meritor | 21215633 | 21215633 |
| RVI | 5.000.790.692 | 5 000 790 692 / 5000790692 / 5.000.790.692 |
| Phoenix | 1D28G-9121 | 1D28G 9121 / 1D28G9121 / 1D28G-9121 |
| Viberti | 128147 | 128147 |
| SAE | 8403/102 | 8403 102 / 8403102 / 8403/102 |
| Trailer | 0036158E | 0036158E |
| Tec | 505858/01 | 505858 01 / 50585801 / 505858/01 |
Technical Specifications
| Specifications | Parameters |
|---|---|
| Natural height | 696mm |
| Maximum height | 680mm |
| Minimum height | 236mm |
| Extended Height | 680mm |
| Compressed Height | 235mm |
| Top Plate Width | 289mm |
| Piston Width | 260mm |
| Outer diameter | φ275 |
| Weight | 13.371 kg |
| Package Dimensions | 29*29*42cm |

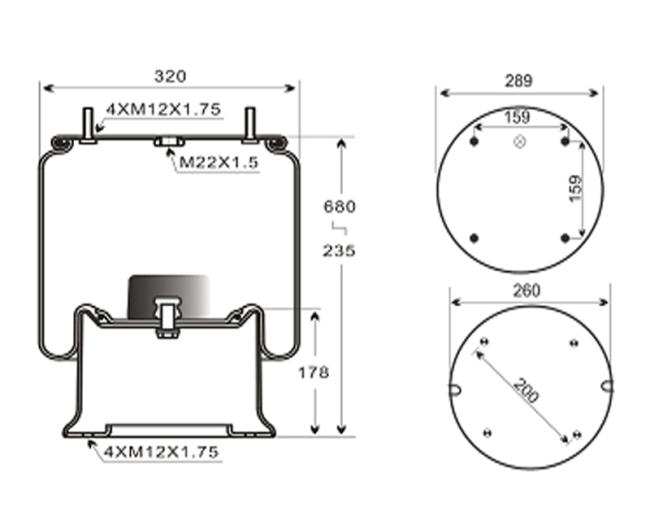

1V 6364 Truck Air Spring Drawing
Delivery Information
| Category | Details |
|---|---|
| Delivery Time | Orders are typically shipped within 30 business days after payment is received |
| Packing | Brown carton packing; we can also pack according to your requirements |
| Marks | Generally display weight and size. We can also make shipping marks according to your requirements |
| Transportation Method | Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods |
| International Transport | Due to international transportation requirements, we pack according to strict standards to protect goods from impact. If logistics information is stagnant during transit, please wait patiently. Contact us with any questions. |

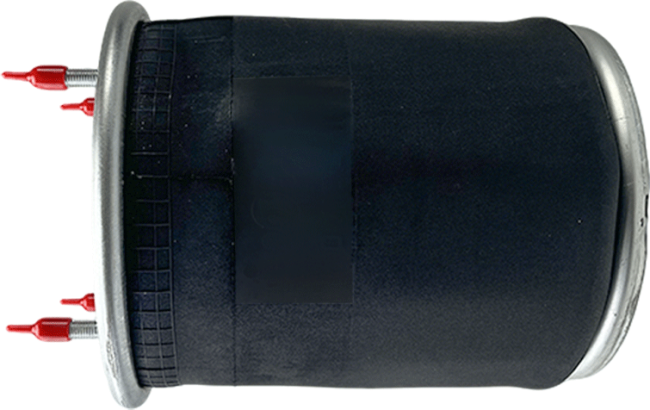

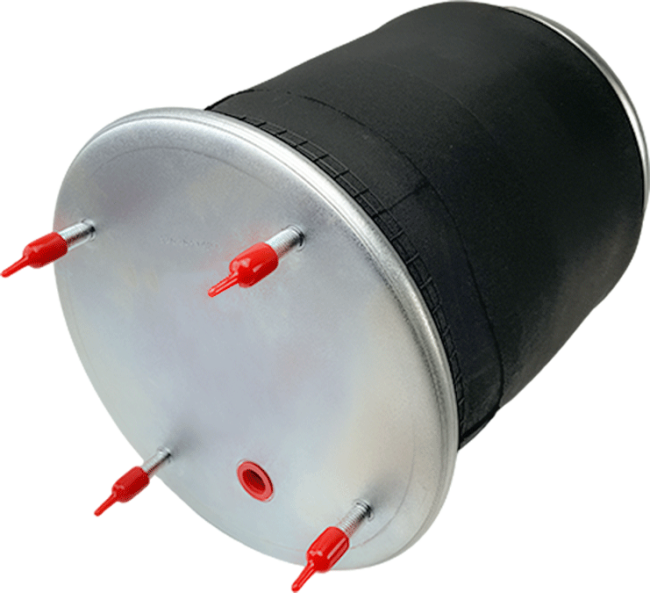

Product Images
Images shown are for reference only. Actual product may vary slightly.
