1V 6345 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Price Negotiable
Price: Negotiable in person
MOQ: 50 pieces
Delivery Time: 30
Brand: YITAO
Product Description
1V 6345 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18
YITAO 1V 6345 truck air spring is manufactured with reference to the specifications of Firestone W01-M58-6345/Phoenix 1D28A-2, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-6345 W01 M58 6345 / W01M586345 / W01M58-6345 / W01-M586345 / W01-M58-6345
Contirech 810MB :810MB
Goodyear 1R14-716 1R14 716 / 1R14716 / 1R14-716
ROR/Meritor 21215632 :21215632
ROR/Meritor 21208082 :21208082
Hendrickson 506243 :506243
SAF 2.229.0002.00 2 229 0002 00 / 2229000200 / 2.229.0002.00
DAF 1384273 :1384273
Phoenix 1D28A-2 1D28A 2 / 1D28A2 / 1D28A-2
Weweler US07337 :US07337
Weweler US00622 :US00622
Weweler US87413 :US87413
Tec 506243/01 506243 01 / 50624301 / 506243/01
Granning 15635 :15635
AB Vovo 1080707 :1080707
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 11.822 kg
Package Dimensions 29*29*38cm
Natural height 563mm
Maximum height 538mm
Minimum height 197mm
Extended Height 550mm
Compressed Height 184mm
Top Plate Width 289mm
Piston Width 260mm
1V 6345 Truck Air Spring Drawing
Technical drawing of 1V 6345 Truck Air Spring showing dimensions and specifications
Delivery Information
What's the Delivery Time?
Orders are typically shipped within 30 business days after payment is received.
What's the Packing method?
Brown carton packing; we can also pack according to your requirements.
What information is included in the Marks?
Generally display weight and size. We can also make shipping marks according to your requirements.
What Transportation Methods are available?
Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
What should I note about International Transport?
Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

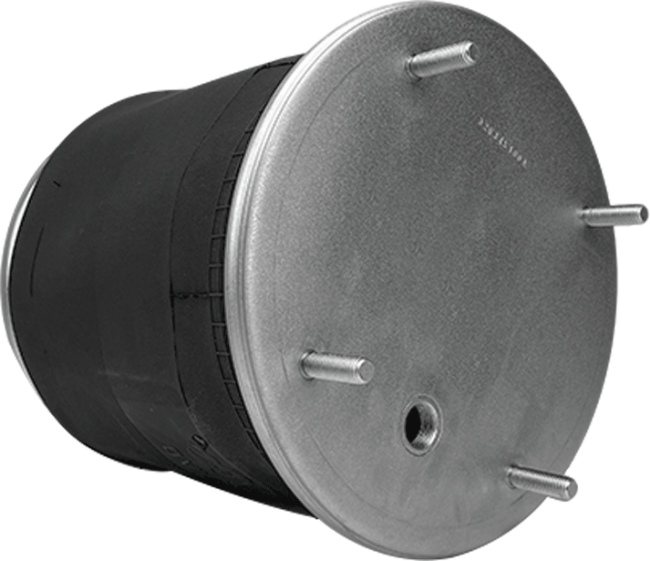

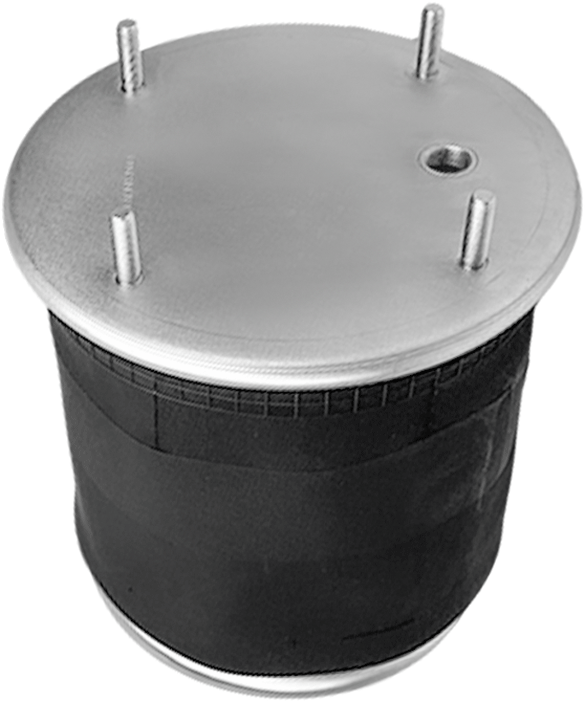

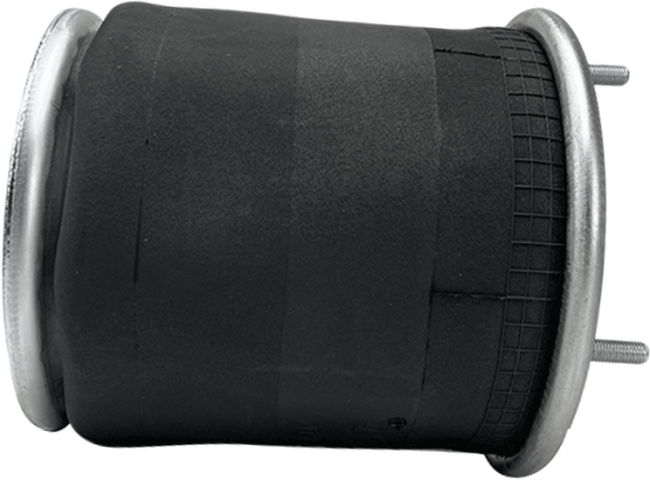

W01-M58-6345 1D28A-2 Truck Air Spring Real Pictures



Real photo of W01-M58-6345 1D28A-2 Truck Air Spring showing construction details Real photo of W01-M58-6345 1D28A-2 Truck Air Spring packaging view Real photo of W01-M58-6345 1D28A-2 Truck Air Spring side profile Real photo of W01-M58-6345 1D28A-2 Truck Air Spring installation view
Images shown are for reference only. Actual product may vary slightly.
