1V 9321 Truck Air Spring Suitable for Firestone W01-358-9321 / Dayton 352-9321

Price Negotiable
Price: Negotiable in person
MOQ: 50 pieces
Delivery Time: 30
Brand: YITAO
Product Description
1V 9321 Truck Air Spring Suitable for Firestone W01-358-9321 / Dayton 352-9321
1V 9321 Truck Air Spring Manufactured to specifications matching Firestone W01-358-9321 / Dayton 352-9321, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9321 W01 358 9321/W013589321/W01358-9321/W01-3589321/W01-358-9321
Goodyear 1R12-335/256 1R12 335 256/1R12335256/1R12-335/256
Contitech 910-21A361 910 21A361/91021A361/910-21A361
Contitech 910-21|P361 910 21|P361/91021|P361/910-21|P361
Hendrickson Ns501304 :Ns501304
Ridewell 1003589321C :1003589321C
Reyco Granning 7640 :7640
Brake&Whee M3545 :M3545
Watson&Chalin AS-0036 AS 0036/AS0036/AS-0036
AB V0vo 85101160 :85101160
Leland SC2120 :SC2120
Airtech 39321K :39321K
Dayton 352-9321 352 9321/3529321/352-9321
Neway 57009321 :57009321
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 8kg
Package Dimensions 28*28*37.5cm
Natural height 695mm
Maximum height 675mm
Minimum height 220mm
Extended Height 650mm
Compressed Height 234mm
Top Plate Width 231mm
Piston Width 260mm

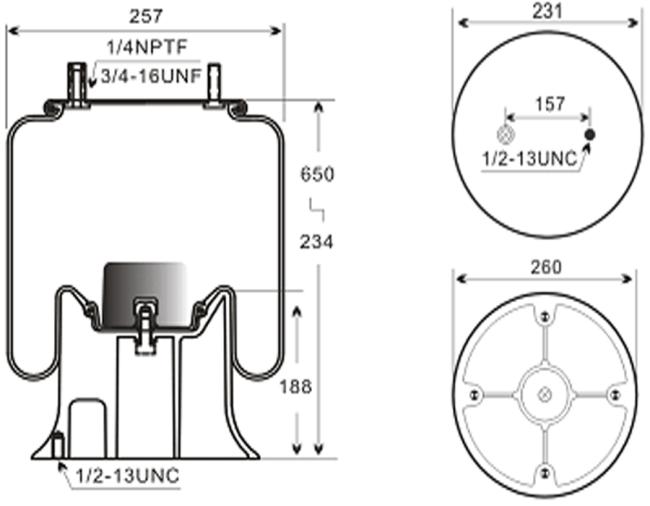

1V 9321 Truck Air Spring Drawing
Technical drawing of 1V 9321 Truck Air Spring showing dimensions and specifications
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
W01-358-9321, SC2120 Truck Air Spring Real Pictures
Truck air spring product view Truck air spring side view Truck air spring detailed view Close-up view of truck air spring mounting points and connections Detailed shot of air spring rubber bellows and metal components Manufacturing quality inspection of truck air spring Packaged truck air spring ready for shipment
Images shown are for reference only. Actual product may vary slightly.
