China 1V 8786 Truck Air Spring Suitable for Contitech 4912NP05 for sale

1V 8786 Truck Air Spring Suitable for Contitech 4912NP05

Price Negotiable

Price: Negotiable in person

MOQ: 50 pieces

Delivery Time: 30

Brand: YITAO

Product Description

1V 8786 Truck Air Spring Suitable for Contitech 4912NP05

1V 8786 Truck Air Spring Manufactured to specifications matchingContitech 4912NP05, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Contitech	4912NP05	4912NP05/:4912NP05

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	14.623kg
Package Dimensions	303043.5 cm
Natural height	793mm
Maximum height	775mm
Minimum height	268mm
Extended Height	790mm
Compressed Height	269mm
Top Plate Width	289mm
Piston Width	228mm

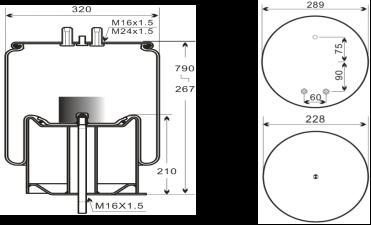

1V 8786 Truck Air Spring Drawing

4912NP05 Truck Air Spring Real Pictures

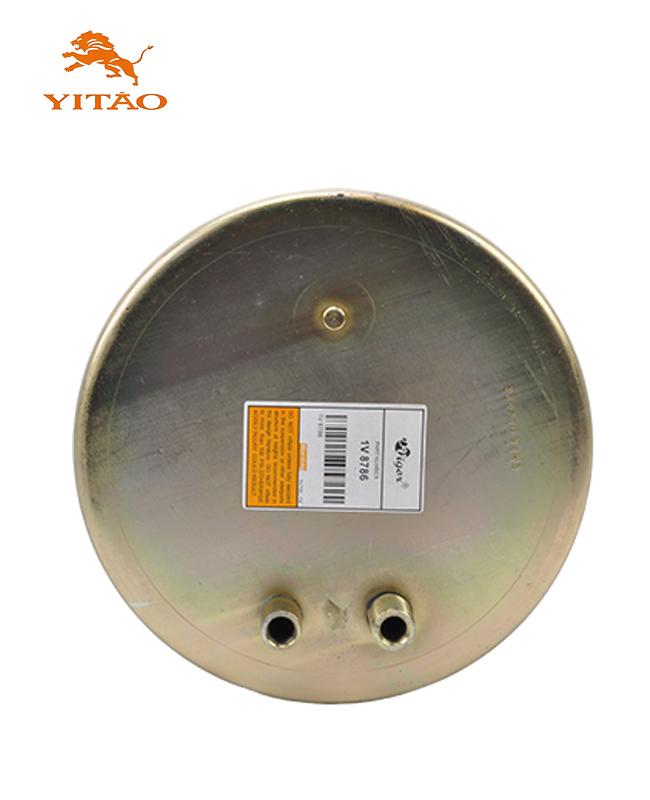

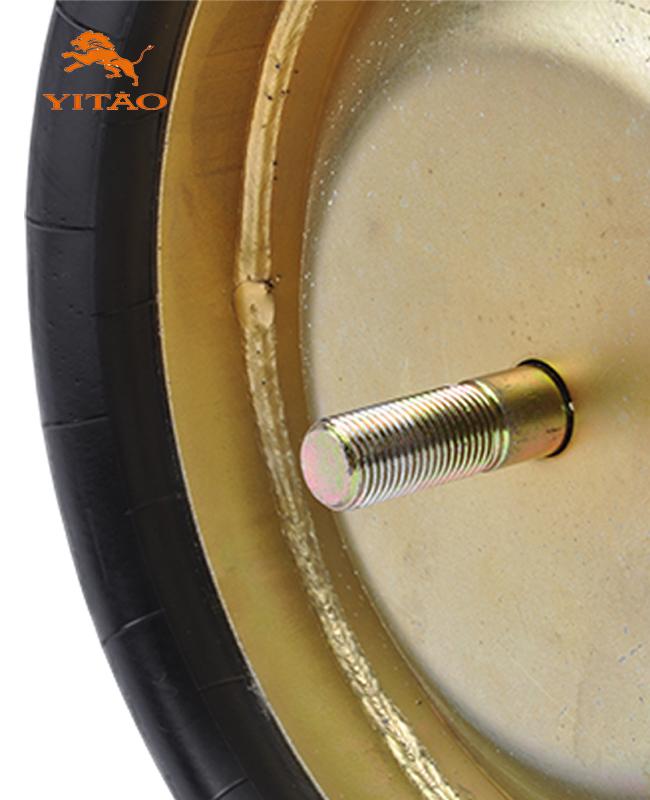

Close-up view of truck air spring mounting points and connections

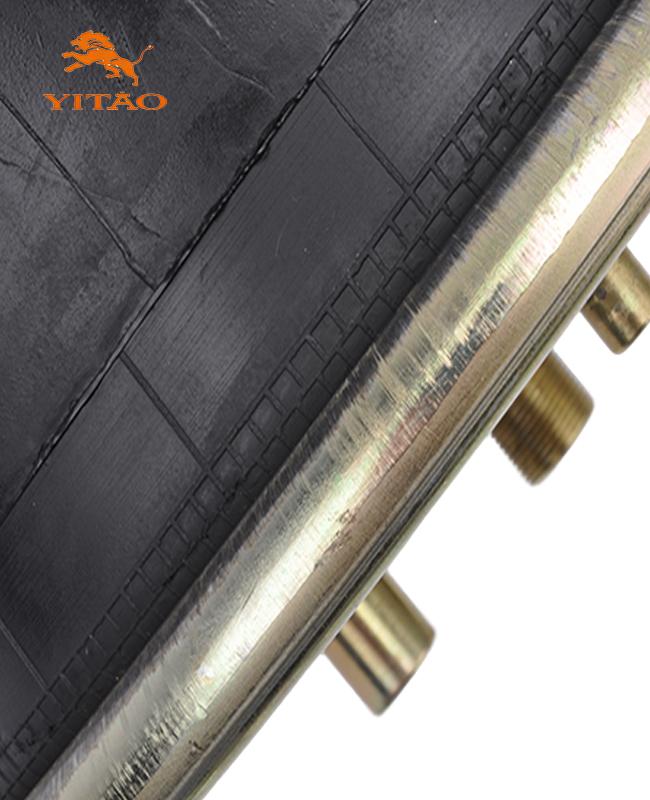

Detailed shot of air spring rubber bellows and metal components

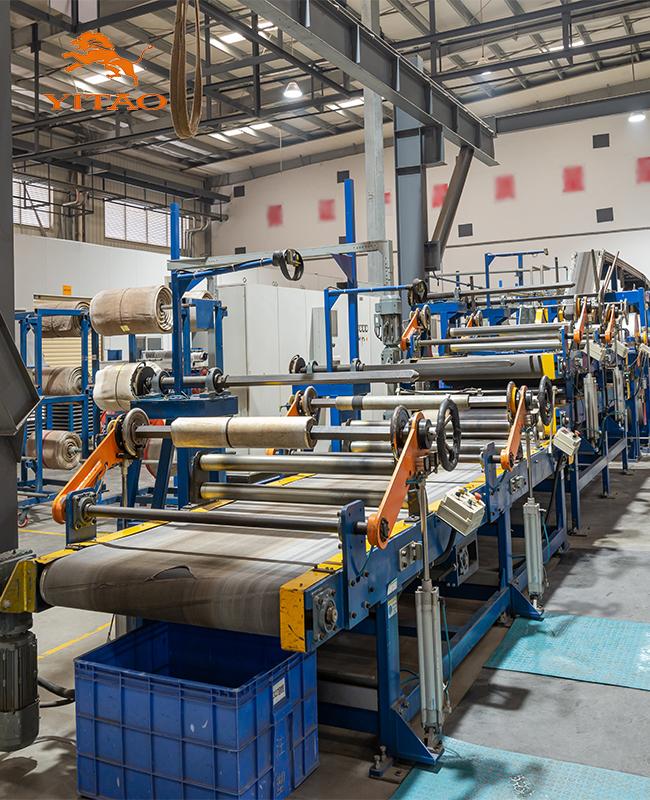

Manufacturing quality inspection of truck air spring

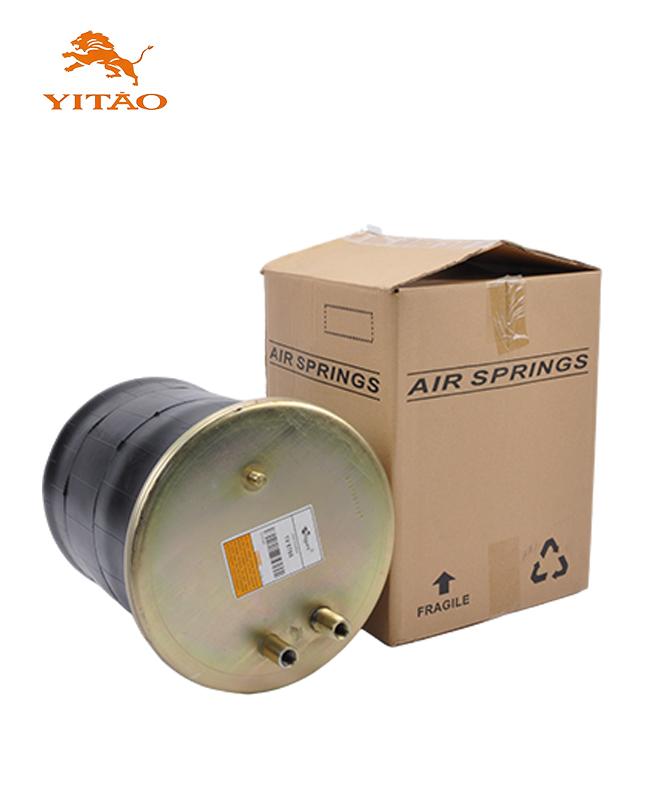

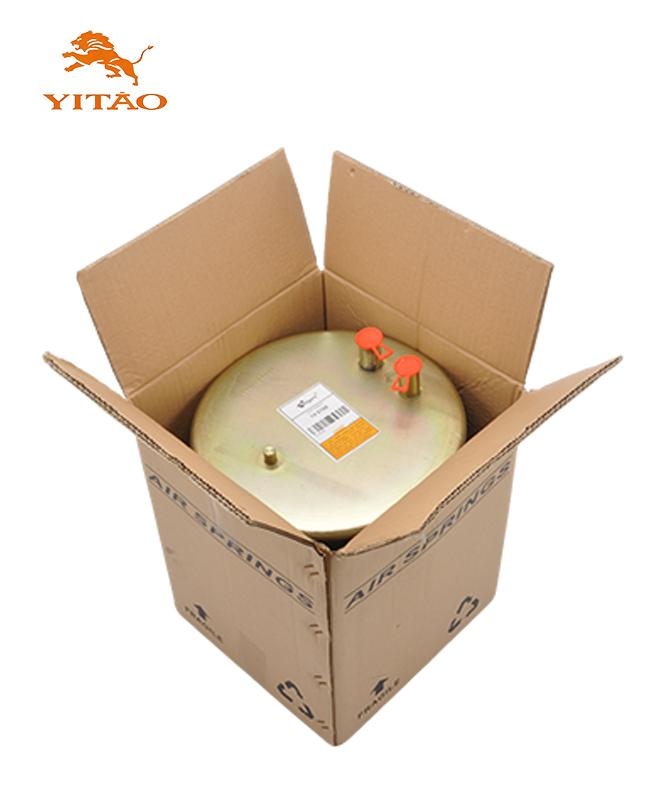

Packaged truck air spring ready for shipment

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
