1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045
Price:
Negotiable in person
MOQ:
50 pieces
Delivery Time:
30
Brand:
YITAO
Product Description
1V 8792 Truck Air Spring Suitable for Firestone W01-358-8792/Goodyear 1R14-045
1V 8792 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8792/Goodyear 1R14-045, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride
Cross References
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-358-8792 | W01 358 8792/W013588792/W01358-8792/W01-3588792/W01-358-8792 |
| Firestone | 1T19L-11 | 1T19L 11/1T19L11/1T19L-11 |
| Contitech | 813MB | :813MB |
| Goodyear | 1R14-045/13-038 | 1R14 045 13 038/1R1404513038/1R14-045/13-038 |
| Goodyear | 13-048/14-060 | 13 048 14 060/1304814060/13-048/14-060 |
| Triangle | 1003589122C | :1003589122C |
| Watson&Chalin | AS-0023 | AS 0023/AS0023/AS-0023 |
| Hendrickson | B3830/S3467 / B-12514-008 / B-12514-010 | B3830 S3467 B 12514 008 B 12514 010/B3830S3467B12514008B12514010/B3830/S3467/B-12514-008/B-12514-010 |
| Reyco | 12883-02 | 12883 02/1288302/12883-02 |
| Sauer | P50-732 | P50 732/P50732/P50-732 |
| Tec | 5006003 | :5006003 |
| Airtech | 132112 / 39122C | 132112 39122C/13211239122C/132112/39122C |
| Neway | 90557020 / 90557071 / 90557076 / 90557077 | 90557020 90557071 90557076 90557077/90557020905570719055707690557077/90557020/90557071/90557076/90557077 |
Technical Specifications
| Specifications | Parameters |
|---|---|
| Outer diameter | φ275 |
| Weight | 13.355 kg |
| Package Dimensions | 29*29*42 |
| Natural height | 696mm |
| Maximum height | 680mm |
| Minimum height | 226mm |
| Extended Height | 680mm |
| Compressed Height | 220mm |
| Top Plate Width | 289mm |
| Piston Width | 260mm |

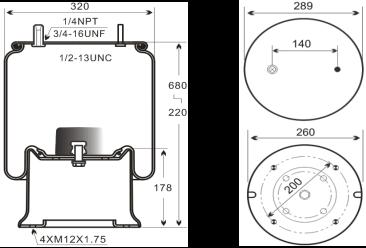

1V 8792 Truck Air Spring Drawing

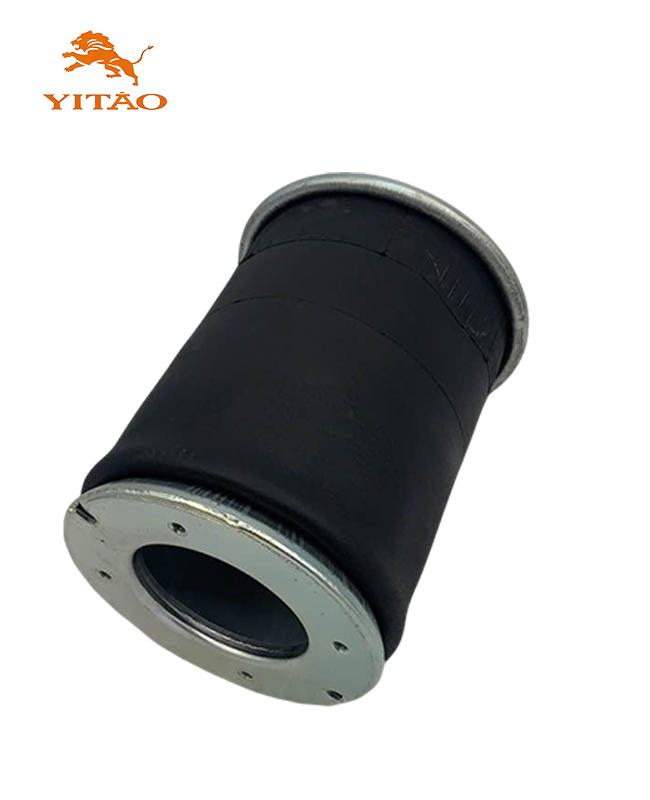

1R14-045 B-12514-008 Truck Air Spring Real Pictures
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
- Delivery Time: Orders are typically shipped within 30 business days after payment is received.
- Packing Method: Brown carton packing; we can also pack according to your requirements.
- Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
- Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
- International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
