1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887
Price:
Negotiable in person
MOQ:
50 pieces
Delivery Time:
30
Brand:
YITAO
Product Description
1V 8852 Truck Air Spring Suitable for Firestone W01-358-8852/Peterbilt 03-07887
1V 8852 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8852/Peterbilt 03-07887, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride
Cross References
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-358-8852 | W01 358 8852/W013588852/W01358-8852/W01-3588852/W01-358-8852 |
| Firestone | 1T15M-9 | 1T15M 9/1T15M9/1T15M-9 |
| Contitech | 910-19P472 | 910 19P472/91019P472/910-19P472 |
| Goodyear | 1R12-568 | 1R12 568/1R12568/1R12-568 |
| Peterbilt | 03-07887 | 03 07887/0307887/03-07887 |
| Airtech | 137192 / 38852CPP | 137192 38852CPP/13719238852CPP/137192/38852CPP |
| Triangle | 8472 / 6364 | 8472 6364/84726364/8472/6364 |
Technical Specifications
| Specifications | Parameters |
|---|---|
| Outer diameter | φ255 |
| Weight | 7.87 kg |
| Package Dimensions | 28*28*37.5cm |
| Natural height | 603mm |
| Maximum height | 583mm |
| Minimum height | 170mm |
| Extended Height | 597mm |
| Compressed Height | 170mm |
| Top Plate Width | 231mm |
| Piston Width | 260mm |

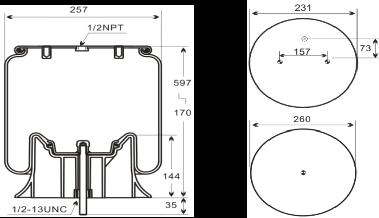

1V 8852 Truck Air Spring Drawing

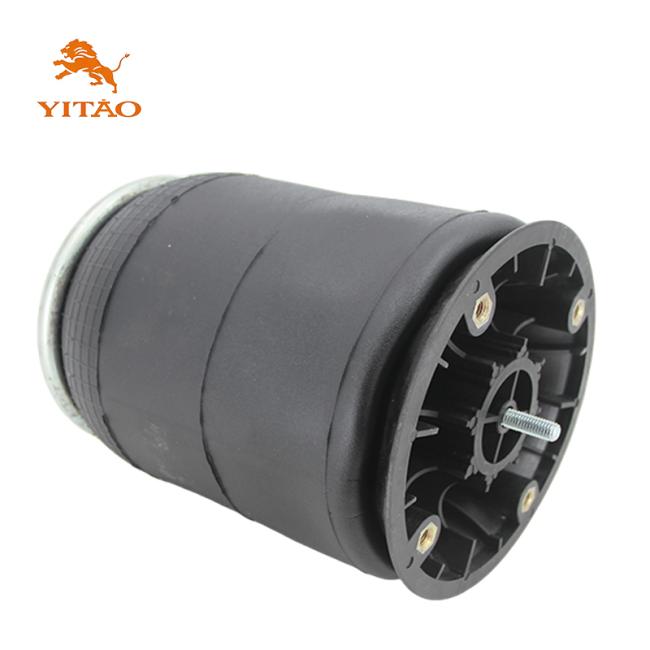

W01-358-8852 1R12-568 Truck Air Spring Real Pictures
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
- Delivery Time: Orders are typically shipped within 30 business days after payment is received.
- Packing Method: Brown carton packing; we can also pack according to your requirements.
- Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
- Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
- International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
