1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K
Price:
Negotiable in person
MOQ:
50 pieces
Delivery Time:
30
Brand:
YITAO
Product Description
1V 8966 Truck Air Spring Suitable for Firestone W01-M58-8966/Airtech 3881-01K
1V 8966 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8966/Airtech 3881-01K, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride
Cross References
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-8966 | W01 M58 8966/W01M588966/W01M58-8966/W01-M588966/W01-M58-8966 |
| Firestone | 1T66F-10.8 | 1T66F 10.8/1T66F10.8/1T66F-10.8 |
| Contitech | 881MB/BPW36 | 881MB BPW36/881MBBPW36/881MB/BPW36 |
| Goodyear | 1R14-703 | 1R14 703/1R14703/1R14-703 |
| Airtech | 130522 / 3881-01K | 130522 3881 01K/130522388101K/130522/3881-01K |
| BPW | 05.429.40.08.1 / 05.429.40.61.1 / 05.429.41.36.1 | 05.429.40.08.1 / 05.429.40.61.1 / 05.429.41.36.1 |
| Taurus | KR836-05 | KR836 05/KR83605/KR836-05 |
| Dunlop FR | D14B36 | :D14B36 |
| Phoenix | 14DK32-1 | 14DK32 1/14DK321/14DK32-1 |
| Granning | 15917 | :15917 |
| Pirelli | 1TC360-45 | 1TC360 45/1TC36045/1TC360-45 |
| Meritor | MLF7065 | :MLF7065 |
| WABCO | 9518147120 | :9518147120 |
Technical Specifications
| Specifications | Parameters |
|---|---|
| Outer diameter | φ300 |
| Weight | 20.535 kg |
| Package Dimensions | 33.5*33.5*35.5cm |
| Natural height | 720mm |
| Maximum height | 700mm |
| Minimum height | 280mm |
| Extended Height | 710mm |
| Compressed Height | 250mm |
| Top Plate Width | 315mm |
| Piston Width | 250mm |

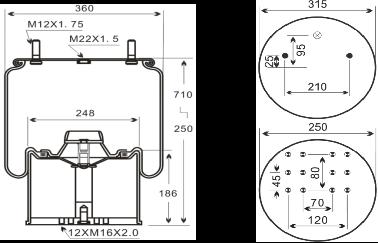

1V 8966 Truck Air Spring Drawing

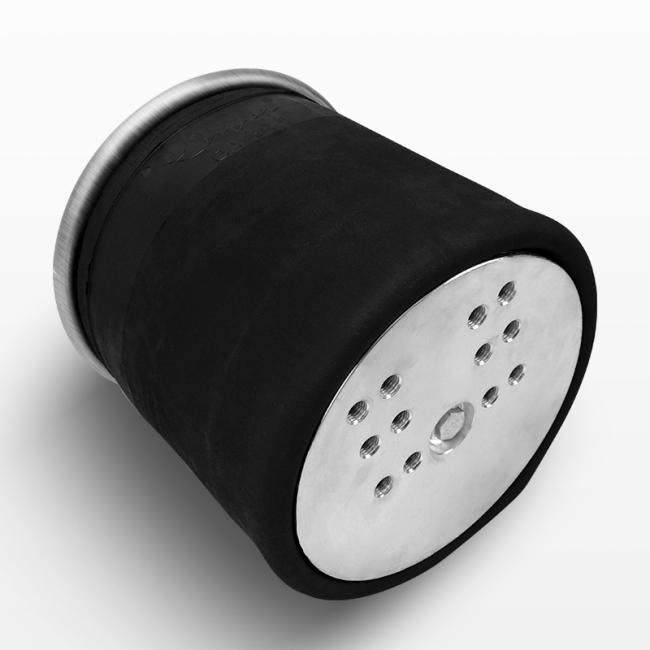

1R14-703 Truck Air Spring Real Pictures
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
- Delivery Time: Orders are typically shipped within 30 business days after payment is received.
- Packing Method: Brown carton packing; we can also pack according to your requirements.
- Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
- Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
- International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
