Micro Deep Groove Ball Bearing 6800 6801 6802 6803 6804 6805ZZ 2RS
Micro Ball Bearing 6800 6801 6802 6803 6804 6805ZZ 2RS German Process Deep Groove Ball Bearing
Miniature ball bearings are bearings with a nominal bearing outer diameter of < 9 mm, while small diameter bearings are bearings within an inner diameter of < 10 mm and an outer diameter of D ≧ 9 mm; both ISO standard and ANSI/ABMA standard metric and imperial specifications are available.
Small miniature ball bearing Series :
Micro ball bearing 6800 6801 6802 6803 6804 6805zz 2RS German process deep groove ball bearing
| TYPE | Dimension | ||||
| Bore Diameter | Outer Diameter | width for open type | width for shield type (ZZ or RS) | Radius | |
| ZZ | d(mm) | D(mm) | b | b1 | mm |
| 682zz | 2 | 5 | 1.5 | 2.3 | 0.08 |
| MR52zz | 5 | 2 | 2.5 | 0.10 | |
| 692zz | 6 | 2.3 | 3 | 0.15 | |
| MR62zz | 6 | 2.5 | 2.5 | 0.15 | |
| MR72zz | 7 | 2.5 | 3 | 0.15 | |
| 602zz | 7 | 2.8 | 3.5 | 0.15 | |
| 682Xzz | 2.5 | 6 | 1.8 | 2.6 | 0.08 |
| 692Xzz | 7 | 2.5 | 3.5 | 0.15 | |
| 8 | 2.5 | - | 0.20 | ||
| 602Xzz | 8 | 2.8 | 4 | 0.15 | |
| MR63zz | 3 | 6 | 2 | 2.5 | 0.10 |
| 683zz | 7 | 2 | 3 | 0.10 | |
| MR83zz | 8 | 2.5 | 3 | 0.15 | |
| 693zz | 8 | 3 | 4 | 0.15 | |
| MR93zz | 9 | 2.5 | 4 | 0.20 | |
| 603zz | 9 | 3 | 5 | 0.15 | |
| 623zz | 10 | 4 | 4 | 0.15 | |
| 633zz | 13 | 5 | 5 | 0.20 | |
| MR74zz | 4 | 7 | 2 | 2.5 | 0.10 |
| MR84zz | 8 | 2 | 3 | 0.15 | |
| 684zz | 9 | 2.5 | 4 | 0.10 | |
| MR104zz | 10 | 3 | 4 | 0.20 | |
| 694zz | 11 | 4 | 4 | 0.15 | |
| 604zz | 12 | 4 | 4 | 0.20 | |
| 624zz | 13 | 5 | 5 | 0.20 | |
| 634zz | 16 | 5 | 5 | 0.30 | |
| MR85zz | 5 | 8 | 2 | 2.5 | 0.10 |
| MR95zz | 9 | 2.5 | 3 | 0.15 | |
| MR105zz | 10 | 3 | 4 | 0.15 | |
| MR115zz | 11 | - | 4 | 0.15 | |
| 685zz | 11 | 3 | 5 | 0.15 | |
| 695zz | 13 | 4 | 4 | 0.20 | |
| 605zz | 14 | 5 | 5 | 0.20 | |
| 625zz | 16 | 5 | 5 | 0.30 | |
| 635zz | 19 | 6 | 6 | 0.30 | |
| MR106zz | 6 | 10 | 2.5 | 3 | 0.15 |
| MR126zz | 12 | 3 | 4 | 0.20 | |
| 686zz | 13 | 3.5 | 5 | 0.15 | |
| 696zz | 15 | 5 | 5 | 0.20 | |
| 606zz | 17 | 6 | 6 | 0.30 | |
| 626zz | 19 | 6 | 6 | 0.30 | |
| 636zz | 22 | 7 | 7 | 0.30 | |
| MR117zz | 7 | 11 | 2.5 | 3 | 0.15 |
| MR137zz | 13 | 3 | 4 | 0.20 | |
| 687zz | 14 | 3.5 | 5 | 0.15 | |
| 697zz | 17 | 5 | 5 | 0.30 | |
| 607zz | 19 | 6 | 6 | 0.30 | |
| 627zz | 22 | 7 | 7 | 0.30 | |
| 637zz | 26 | 9 | 6 | 0.30 | |
| MR128zz | 8 | 12 | 2.5 | 3.5 | 0.15 |
| MR148zz | 14 | 3.5 | 4 | 0.20 | |
| 688zz | 16 | 4 | 5 | 0.20 | |
| 698zz | 19 | 6 | 6 | 0.30 | |
| 608z | 22 | 7 | 7 | 0.30 | |
| 628zz | 24 | 8 | 8 | 0.30 | |
| 638zz | 28 | 9 | 9 | 0.30 | |
| 679zz | 14 | 3 | 4.5 | 0.30 | |
| 689zz | 9 | 17 | 4 | 5 | 0.20 |
| 699zz | 20 | 6 | 6 | 0.30 | |
| 609zz | 24 | 7 | 7 | 0.30 | |
| 629zz | 26 | 8 | 8 | 0.30 | |
| 639zz | 30 | 10 | 10 | 0.60 | |
| 6700zz | 15 | 4 | 4 | 0.15 | |
| 6800zz | 19 | 5 | 5 | 0.30 | |

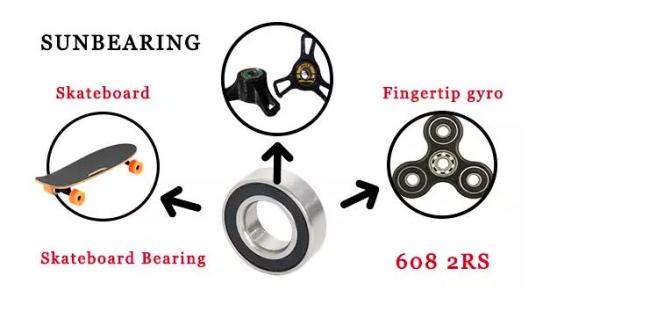

Deep groove ball bearings are widely used in gearboxes.instruments.motors. household appliances.
internal combustion engines.transportation vehicles. agricultural machinery.construction machinery.
construction machinery. roller roller skates. yo-yo. etc.
Lead Time : within 1-7 working days , based on quantity.
Terms of Payment : T/T (30% deposit in advance) , Irrevocable L/C at sight , Western Union
| Packing | inside packing | single box (white or color) , customization is allowed |
| Plastic tube | ||
| Rolling simple packing | ||
| Carton | standard export carton | |
| Pallet | Plywood , steel , plastic pallet.fumigation-free | |
| Shipping | By sea , by air , by express , or truck | |
