Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232
Price:
Negotiable
MOQ:
10 Pcs
Delivery Time:
5-7 Works days
Brand:
HDBB
Product Description
NJ Series Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 Size 160x290x80 Weight 3.36 Kgs Ex Stock

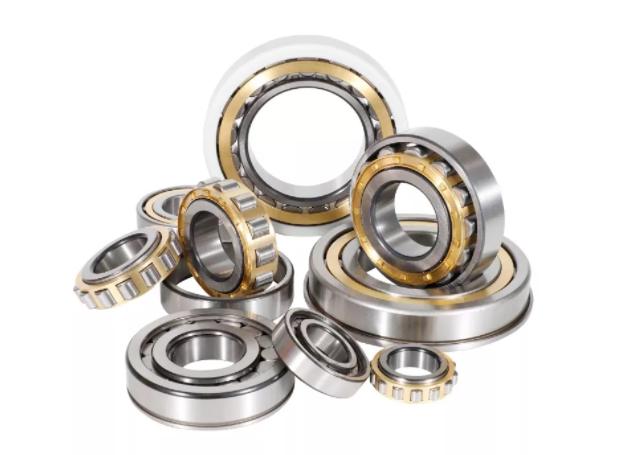

1 . Cylindrical roller bearings have below types:
N type :
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NU type :
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ type :
The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF type :
The outer ring has one integral flange and the inner ring two integral flanges.
The outer ring has one integral flange and the inner ring two integral flanges.
NUP type :
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN type :
No outer ring and the inner ring two integral flanges.
No outer ring and the inner ring two integral flanges.
NN type :
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft
relative bearing between the axial displacement generated in both directions.
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft
relative bearing between the axial displacement generated in both directions.
2 . Parts of NJ Series Cylindrical Roller Bearing :
| NJ series | ||||
| Model | d. mm | D. mm | H. mm | W.kgs |
| NJ1024EM | 120 | 180 | 28 | 3.8 |
| NJ1026EM | 130 | 200 | 33 | 3.96 |
| NJ1028EM | 140 | 210 | 33 | 4.8 |
| NJ1030EM | 150 | 225 | 35 | 4.8 |
| NJ1032EM | 160 | 240 | 38 | 6 |
| NJ1034EM | 170 | 260 | 42 | 8.5 |
| NJ1036EM | 180 | 280 | 46 | 11 |
| NJ1038EM | 190 | 290 | 46 | 11.8 |
| NJ1040EM | 200 | 310 | 51 | 15 |
| NJ1044EM | 220 | 340 | 56 | 19.6 |
| NJ1048EM | 240 | 360 | 56 | 20.8 |
| NJ1052EM | 260 | 400 | 65 | 30 |
| NJ1056EM | 280 | 420 | 65 | 34.2 |
| NJ1060EM | 300 | 460 | 74 | 45 |
| NJ1064EM | 320 | 480 | 74 | 47.8 |
| NJ1068EM | 340 | 520 | 82 | 68 |
| NJ1072EM | 360 | 540 | 82 | 67.7 |
| NJ1080EM | 400 | 600 | 90 | 95.5 |
| NJ220EM | 100 | 180 | 34 | 3.81 |
| NJ222EM | 110 | 220 | 38 | 5.11 |
| NJ224EM | 120 | 215 | 40 | 6.48 |
| NJ226EM | 130 | 230 | 40 | 7.46 |
| NJ228EM | 140 | 250 | 42 | 9.62 |
| NJ230EM | 150 | 270 | 45 | 12.1 |
| NJ232EM | 160 | 290 | 48 | 14.5 |
| NJ234EM | 170 | 310 | 52 | 19.3 |
| NJ236EM | 180 | 320 | 52 | 19.8 |
| NJ238EM | 190 | 340 | 55 | 22.9 |
| NJ240EM | 200 | 360 | 58 | 27.7 |
| NJ244EM | 220 | 400 | 65 | 38.9 |
| NJ248EM | 240 | 440 | 72 | 53 |
| NJ252EM | 260 | 480 | 80 | 68.2 |
| NJ256EM | 280 | 500 | 80 | 70.3 |
| NJ260EM | 300 | 540 | 85 | 91 |
| NJ2216EM | 80 | 140 | 33 | 2.36 |
| NJ2218EM | 90 | 160 | 40 | 3.73 |
| NJ2219EM | 95 | 170 | 43 | 5 |
| NJ2220EM | 100 | 180 | 46 | 5.99 |
| NJ2222EM | 110 | 200 | 53 | 7.8 |
| NJ2224EM | 120 | 215 | 58 | 9.55 |
| NJ2226EM | 130 | 230 | 64 | 11.9 |
| NJ2228EM | 140 | 250 | 68 | 15 |
| NJ2230EM | 150 | 270 | 73 | 18.1 |
| NJ2232EM | 160 | 290 | 80 | 24.7 |
| NJ2234EM | 170 | 310 | 86 | 31 |
| NJ2236EM | 180 | 320 | 86 | 31 |
| NJ2238EM | 190 | 340 | 92 | 40 |
| NJ2240EM | 200 | 360 | 98 | 44 |
| NJ2244EM | 220 | 400 | 108 | 65 |
| NJ2312EM | 60 | 130 | 46 | 2.81 |
| NJ2313EM | 65 | 140 | 48 | 3.36 |
3. Application of NJ Series Roller Bearing :
screen and lifting and transportation machinery crankshaft,
Automobile and tractor gearbox, Internal combustion engine,
Generator, Gas turbine, Reducer, Rolling mill, Vibrating Large motors,
Machine tool spindles, Engine front and rear support shafts,
Train and bus box shaft support, Diesel engine
