Galvanized Gi Malleable Cast Iron Pipe Fittings 90 Degree Band Equal Elbow 2MM-20MM
Galvanized Gi Malleable Cast Iron Pipe Fittings 90 Degree Band Equal Elbow
There are many types of pipe fittings, which are classified according to use, connection, material and processing method.
1. Pipe fittings used for interconnecting pipes include: flanges, unions, pipe clamps, clamps, ferrules, throat clamps, etc.
2. Pipe fittings that change the direction of the pipe: elbows, elbows.
3. Pipe fittings for changing the pipe diameter: reducing diameter (reducing pipe), reducing elbow, branch pipe table, reinforcing pipe.
| Product | Welded Pipe Fittings |
| Technology | Seamless；Butt Welded 45degree,90degree,180degree ELBOW |
| Size | Seamless Size: DN15-DN1200 1/"-24" Welded Size: DN200-DN2000 |
| Thickness | SCH10；SCH20；SCH30；STD；SCH40；SCH60；SCH80；SCH100；SCH120；SCH160；XS；XXS；High Thickness To 150mm |
| Material | A234-WPB；A420-WPL3/ WPL6；WP5；WP9；WP11；WP22；NACE MR-0175 API5L-X42/46/52/56/60/65/70/80(NS/MS) A403-WP304/L；WP316/L；S31803; 2205 |
| Standard | EN10253-2 ASME B16.9; GB12459; DIN2616; GOST17378-2001; JIS B2311,WPB |
| Coating | Anti corrosive paint； 3LPE Coating； Galvanized (Hot Dipped Electro-Plating) etc. |
| Inspection | Chemical Elements； Mechanical Property； Metallographic Test,； HIC /SSC,； Heat Treatment,； Ultrasonic Test； Penetration Test； Magnetic Powder Test； X-Ray Test； Hydraulic Pressure Test； Blasting Experiment；we can make them according to your request. |
| Application | Water Disposal； Electric Power； Chemical Engineering； Ship Building； Nuclear Energy； Garbage Disposal；Natural Gas； Petroleum Oil. |
| Note | Our company can produce customized products according to customer requirements |

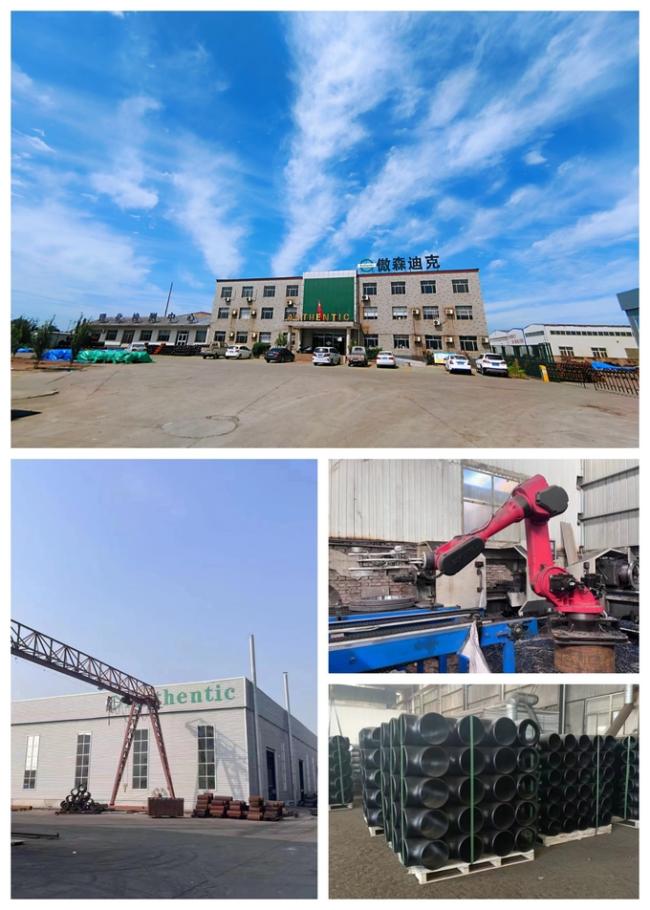

Cangzhou Authentic Pipe Fitting Manufacturing Co., Ltd.has a number of pipe fittings manufacturing production lines, with independent pressing, machining, intermediate frequency hot pushing, cold forming, hot extrusion, heat treatment and other technologies. In addition, in order to ensure product quality, companies are paying more and more attention to the improvement of inspection equipment. Advanced equipment, along with corresponding testing capabilities, are constantly being used, such as chemical elemental analysis, metal testing, physical inspection, and non-destructive testing. In addition, we use advanced material composition analysis equipment - a continuous reading spectrum equipment can directly and accurately test the chemical composition of various metal materials.
1. Are you trading company or manufacturer ?
We are manufacturer
2. How long is your delivery time?
Generally it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Paymen 30% T/T pay in advance , the balance should be paid against the copy of B/L
