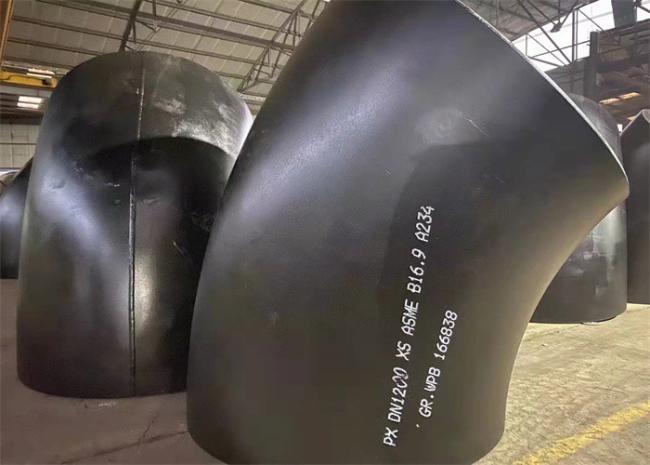

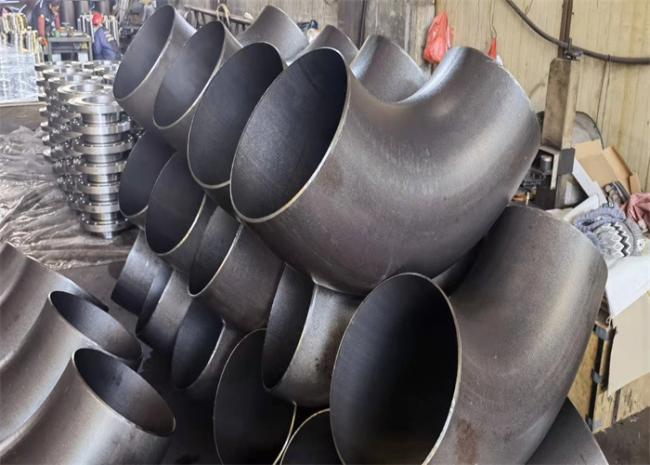

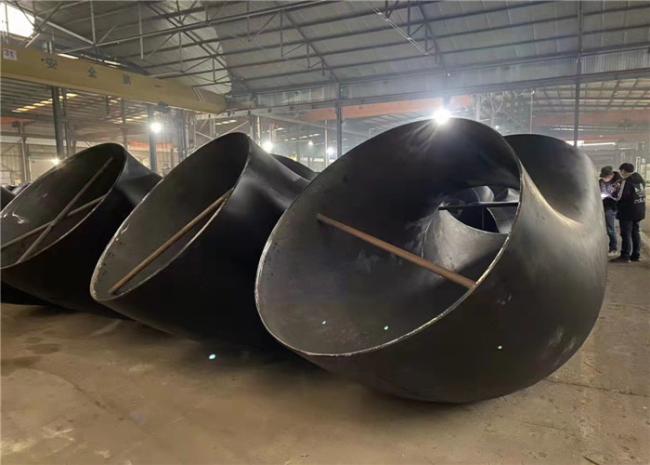

Large Carbon Steel Elbow 24"---48" 90 Degree LR Elbow Bevelend Black Painting
Carbon Steel Elbow carbon steel seamless butted welding Large sizes 24"---48" 90D LR elbow bevelend black painting
The standard elbow is divided into long radius elbow and short radius elbow according to the radius of curvature. Long radius elbow refers to its radius of curvature equal to 1.5 times the outer diameter of the pipe, that is, R = 1.5D
| Brand Name | AUTHENTIC | |
| Product Name | Elbow | |
| Certification | /BV/ABS/LR/TUV/DNV/BIS/API/PED | |
| Place of Origin | Cangzhou China (Mainland) | |
|
Material |
ASTM |
Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
|
DIN |
Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
|
JIS |
Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
|
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Standard Specification | ASTM,JIS,BS,DIN,UNI etc. | |
| Connection | Welding | |
| Shape | Equal | |
| Technics | Forged | |
| Qualification | ISO9001, API,CE | |
| Equipment | Pushing Machine,Beveling Machine,Sand Blasting Machine | |
| Thickness | Sch10-Sch160 XXS | |
| Size | Seamless 1/2" To 24" Welded 24" To 72" | |
| Surface of Finish | Antirust Oil,Hot Galvanized | |
| Pressure | Sch5--Sch160,XXS | |
| Standard | ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2 | |
| The third party inspection | BV, , LOIYD, TUV, and other party alloyed by clients. | |
| Remark | Also can supply IBR fittings and Specialized NACE & HIC Fittings | |
| Marking | Registered logo,Heat Number,Steel Grade,Standard,Size | |
| Minimum Order Quantity | 1pcs | |
| Supply Ability | 3,0000pcs per month | |
| Price | Depending on quantity | |
| Payment Terms | T/T or Western Union or LC | |
| Supply Ability | 3,0000pcs per month | |
| Delivery Time | 10-50 days depending on quantity | |

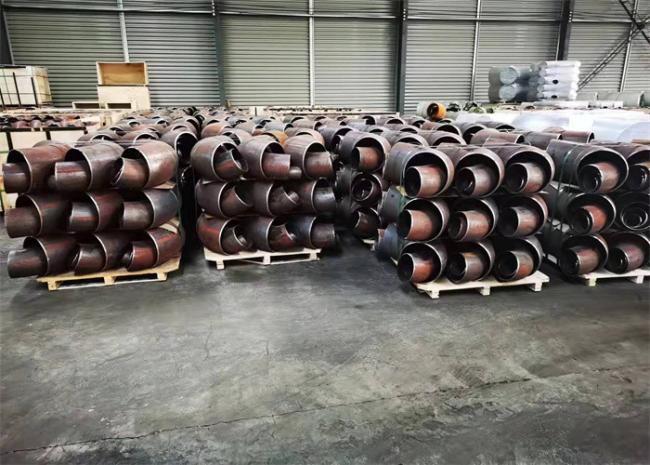

| Packing | PLY-wooden case or pallet or as for clients' requirements | |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, | |
|
Advantages |
1. 20 + years of production experience at your service. 2. The fastest delivery 3. The lowest price 4. Most comprehensive standards and materials for your choice. 5. 100% export. 6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc. |
|
| Special design available as the requirement of customer | ||
The short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is,R = D. in the formula, D is the diameter of the elbow and R is the radius of curvature. According to the pressure grade, there are about 17 kinds of pipe standards, which are the same as those in the United States :Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, among which STD and XS are the most commonly used.
According to the Angle of the elbow, there are 45° elbow, 90° elbow and 180° elbow. In this way, there are many kinds of elbow. When ordering, the order is often expressed as follows: such as "LRSTD90o8", indicating long radius, pressure grade is STD, 8" elbow of 90O; For example,"SRXS45o4" stands for short radius, pressure class XS,4 "elbow of 45O. The above is the general classification of elbow. Gb elbow
We have 90-degree boxes with 45-degree bends. The bending radius is on the standard. There are also long and short radius elbow.
Cangzhou authentic Pipe-Fitting Manufacture Co.,ltd..Possesses a site of 150000 square meters, with a building of 50000 square meters, and a permanent asset of 78 million. The number of staff reached 134. Among them, these are 26 technicians, the corporation has employed 15 pipe-fittings manufacturing and flanges-making production lines. the technique, such as beat, forging, and machine-processing. intermediate-frequency pushing, cold-molding, high extruding, and heat treatment, are all available in our mill, in addition, more and more attention is paid to the improvement of inspecting equipment with the sole purpose of ensuring the quality of our products. Advanced Equipment as well as corresponding detecting skills have been adopted constantly, such as Chemical Elements Analyzing, Metal Test, physics inspecting, and Nondestructive Detecting. Besides, we have employed the most advanced Material Composition analyzing equipment Spectrum Direct-reading Equipment(made in England)with it chemical composition of all kinds of metal material that could be tested directly and exactly.
Our Certificate:
1. Are you a trading company or manufacturer?
We are manufacturer
2. How long is your delivery time?
Generally, it is 10-15 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
3. Do you provide samples? is it free or extra?
Yes, we could offer the sample for free charge but need to pay the cost of freight.
4. What are your terms of payment?
Payment 30% T/T pay in advance, the balance should be paid against the copy of B/L
